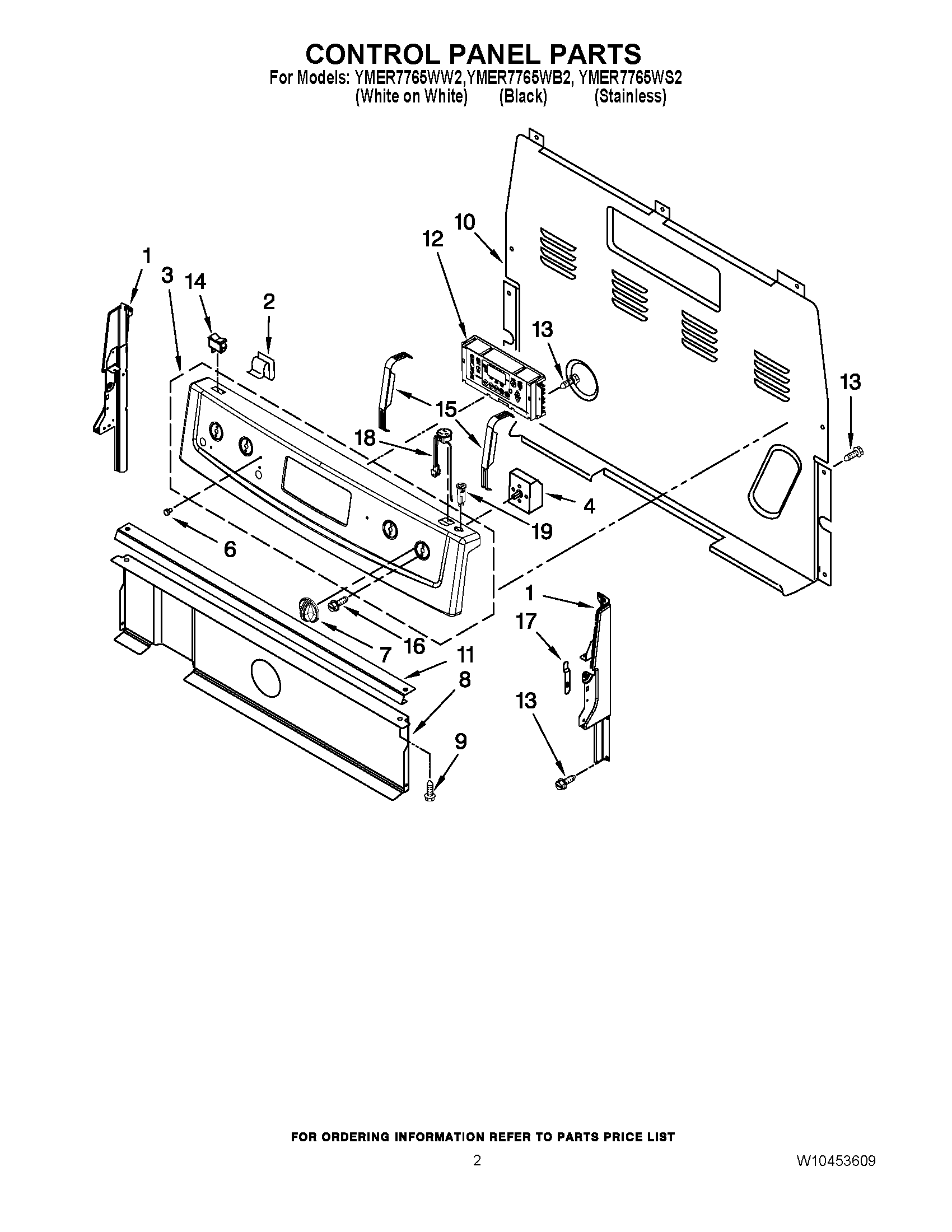

YMER7765WB2 02 – CONTROL PANEL PARTS

YMER7765WB2 02 – CONTROL PANEL PARTS

Written by

in

YMER7765WB2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (BLACK (LEFT))
1ENDCAP (WHITE (LEFT))
1ENDCAP (BLACK (RIGHT))
1ENDCAP (WHITE (RIGHT))
2MAY 8273564
3MAY W10292027
3MAY W10292028
3MAY W10292026
4SWITCH, INFINITE (LR, RR)
4SWITCH, INFINITE (DUAL) (LEFT FRONT)
6MAY 3196068
7MAY W10211372
7KNOB, INFINITE (WHITE)
8SHIELD, HEAT
9Screw (White)
9Screw (Black)
10COVER, UPPER REAR
11Bracket, Console
12MAY W10271764
12MAY W10271765
13SCREW
14SWITCH, ROCKER (BLACK)
14SWITCH, ROCKER (WHITE)
15BRACKET, MOUNTING, EOC
16SCREW
17CLIP, SPRING
18RECEPTACLE (WHITE)
18RECEPTACLE (BLACK)
19BREAKER, CIRCUIT (WHITE)
19BREAKER, CIRCUIT (BLACK)
