YMER7765WB2 05 – DOOR PARTS

YMER7765WB2 05 – DOOR PARTS

Written by

in

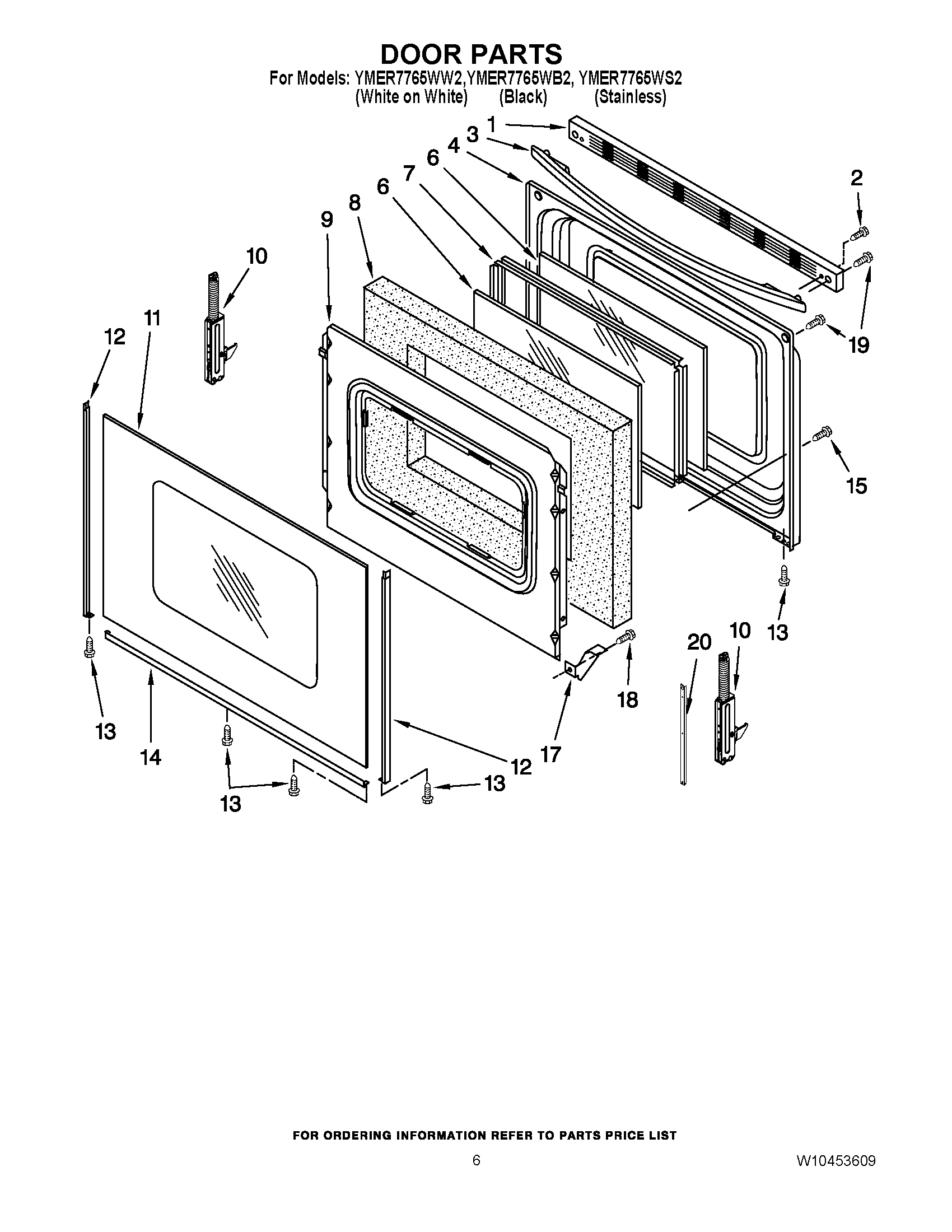

YMER7765WB2 05 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (WHITE)
1TRIM, TOP (BLACK)
2SCREW
3MAY W10323584
3MAY W10323581
3MAY W10171750
4LINER, DOOR
6GLASS, INNER
7FRAME, GLASS
8INSULATION, DOOR STRIP
9RETAINER, INSULATION
10HINGE, ACTIVE (WITH SPRING)
10HINGE, DOOR (PASSIVE)
11GLASS, OUTER (STAINLESS)
11MAY W10106405
11GLASS, OUTER (WHITE)
12TRIM, SIDE (BLACK, RIGHT HAND)
12TRIM, SIDE (BLACK, LEFT HAND)
12TRIM, SIDE (WHITE (LEFT))
12TRIM, SIDE (WHITE (RIGHT))
13MAY 3196160
14TRIM, LOWER (BLACK)
14TRIM, LOWER (WHITE)
15SCREW
17CLIP, PANEL
18SCREW
19MAY W10031780
20STRAP, DOOR
