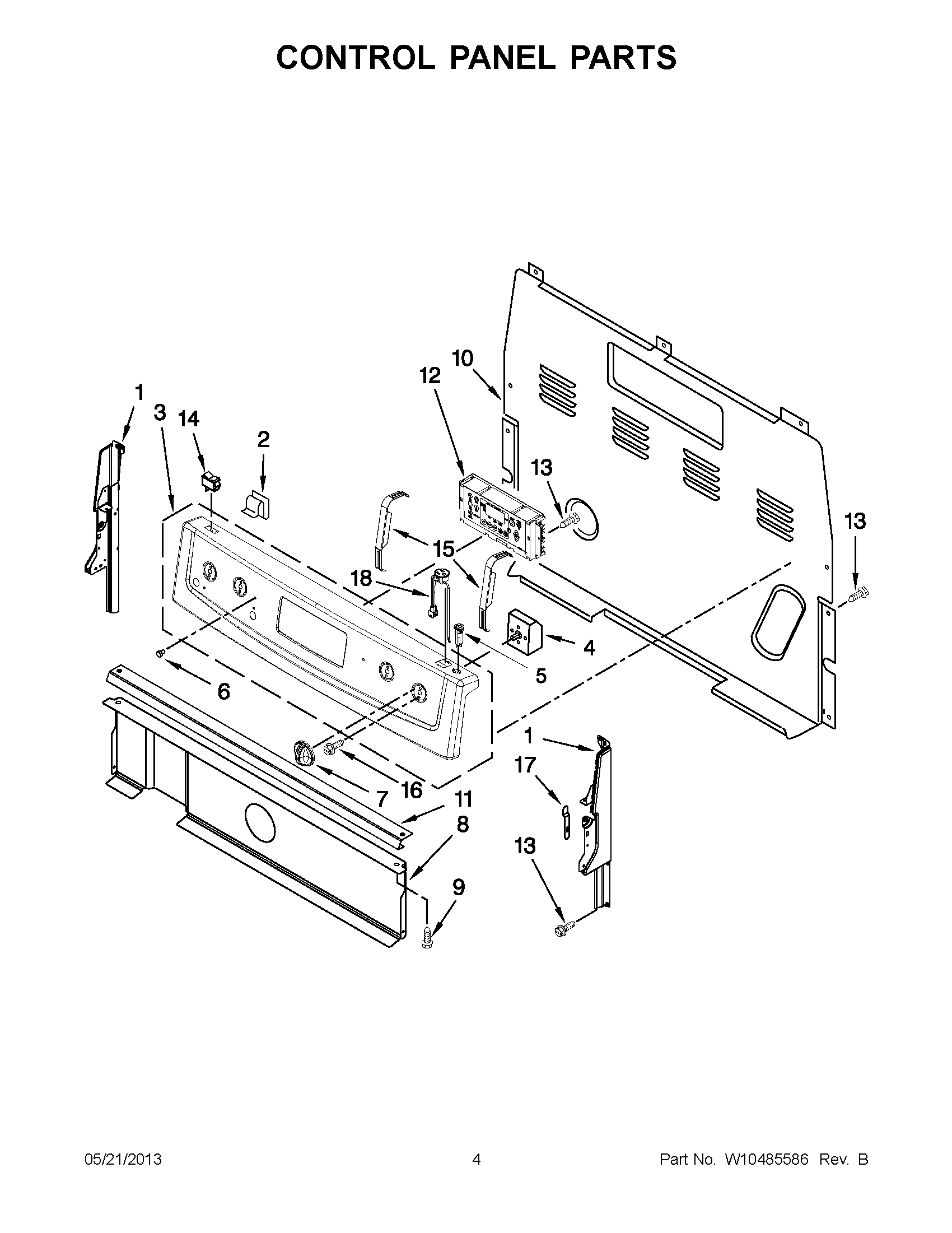

YMER7765WS3 02 – CONTROL PANEL PARTSadmin2025-04-26T08:54:11+00:00YMER7765WS3 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | ENDCAP (BLACK (LEFT)) |
| 1 | ENDCAP (WHITE (LEFT)) |
| 1 | ENDCAP (WHITE (RIGHT)) |
| 1 | ENDCAP (BLACK (RIGHT)) |
| 2 | MAY 8273564 |
| 3 | MAY W10292026 |
| 3 | MAY W10292028 |
| 3 | MAY W10292027 |
| 4 | SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR) |
| 4 | SWITCH, INFINITE (DUAL) (LEFT FRONT) |
| 5 | RECEPTACLE (BLACK) |
| 5 | RECEPTACLE (WHITE) |
| 6 | MAY 3196068 |
| 7 | KNOB, INFINITE (WHITE) |
| 7 | MAY W10211372 |
| 8 | SHIELD, HEAT |
| 9 | SCREW |
| 10 | COVER, UPPER REAR |
| 11 | BRACKET, CONSOLE MOUNTING |
| 12 | MAY W10476387 |
| 12 | MAY W10476388 |
| 13 | SCREW |
| 14 | SWITCH, ROCKER (BLACK) |
| 14 | SWITCH, ROCKER (WHITE) |
| 15 | MAY W10324410 |
| 16 | SCREW |
| 17 | CLIP, SPRING |
| 18 | BREAKER, CIRCUIT (BLACK) |
| 18 | BREAKER, CIRCUIT (WHITE) |
