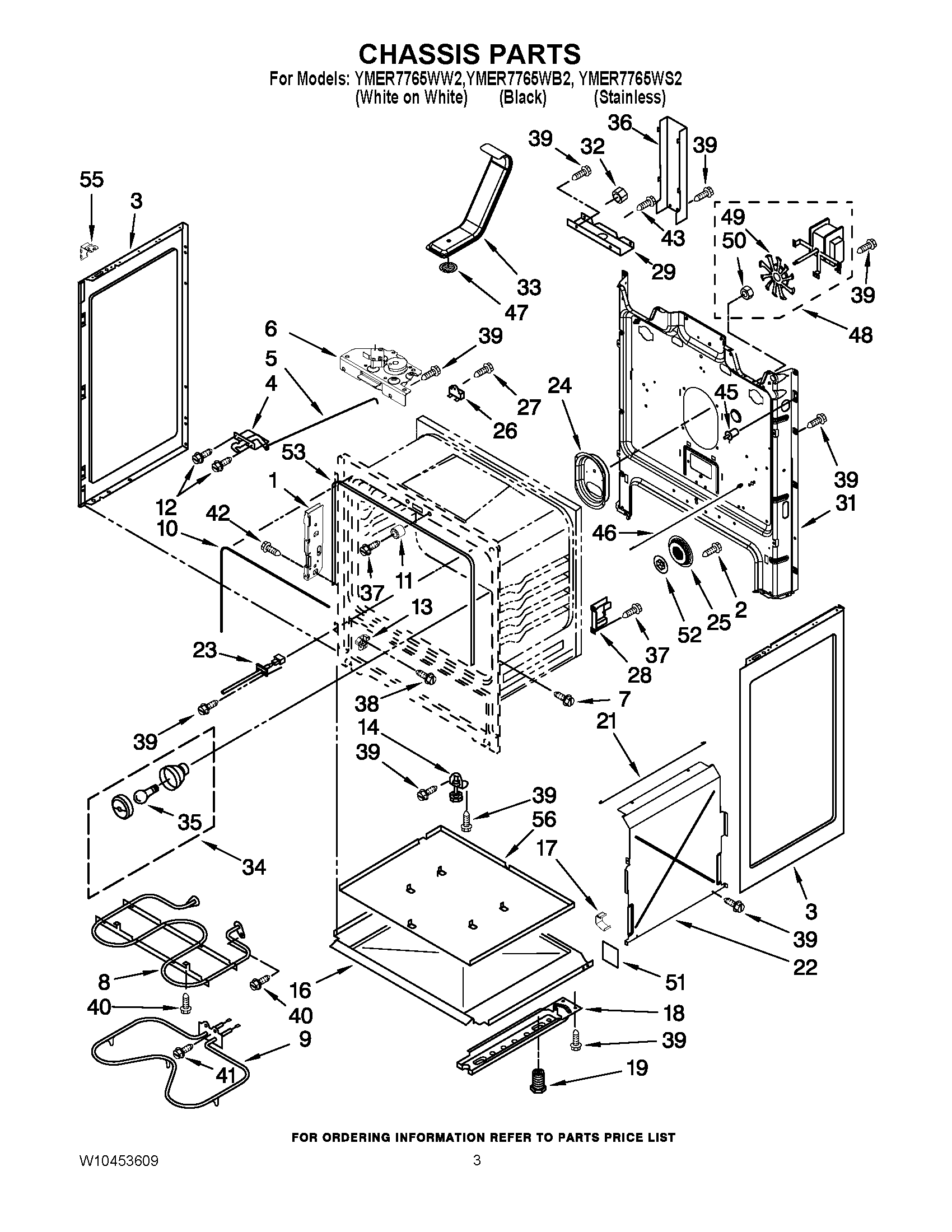

YMER7765WW2 03 – CHASSIS PARTS

Products

Position	Product
NI	MAY W10208653
NI	INSULATION, BACK
NI	INSULATION, FLUE
1	RECEIVER, HINGE
2	MAY 4449809
3	MAY W10322769
3	MAY W10322770
4	ASSEMBLY, DOOR LATCH (FRONT)
5	ROD, LATCH
6	ASSEMBLY, LATCH (REAR)
7	SCREW
8	ELEMENT, BROIL
9	ELEMENT, BAKE (HIDDEN)
10	MAY 8522416
11	SPACER, DOOR
12	SCREW
13	Glide, Drawer
14	ASSEMBLY, FRONT FOOT
16	TRAY, INSULATION
17	CLIP, PANEL
18	RAIL, BASE
19	FOOT, LEVELING
20	MAY W10182346
21	ROD, INSULATION RETAINER
22	RETAINER, INSULATION
23	SENSOR, OVEN
24	MAY W10134126
25	MAY W10134124
26	FUSE, THERMAL
27	SCREW
28	BRACKET, OVEN SUPPORT
29	BRACKET, SERVICE
31	MAY 9757029
32	WP7103P027-60 Whirlpool Nut
33	TUBE, VENT
34	MAY 3196701
35	BULB, OVEN LIGHT
36	COVER, TERMINAL BLOCK
37	SCREW
39	SCREW
40	SCREW
42	MAY W10031780
43	SCREW
45	Switch, Door
46	ROD, DOOR SWITCH
47	MAY 9761301
48	Fan, Motor Cnvctn
49	MAY W10116351
50	MAY W10213748
51	MAY 9759689
52	MAY 3400968
53	TRAY, HIDDEN BAKE
55	CLIP, SPRING STEEL
56	SHIELD, HEAT
