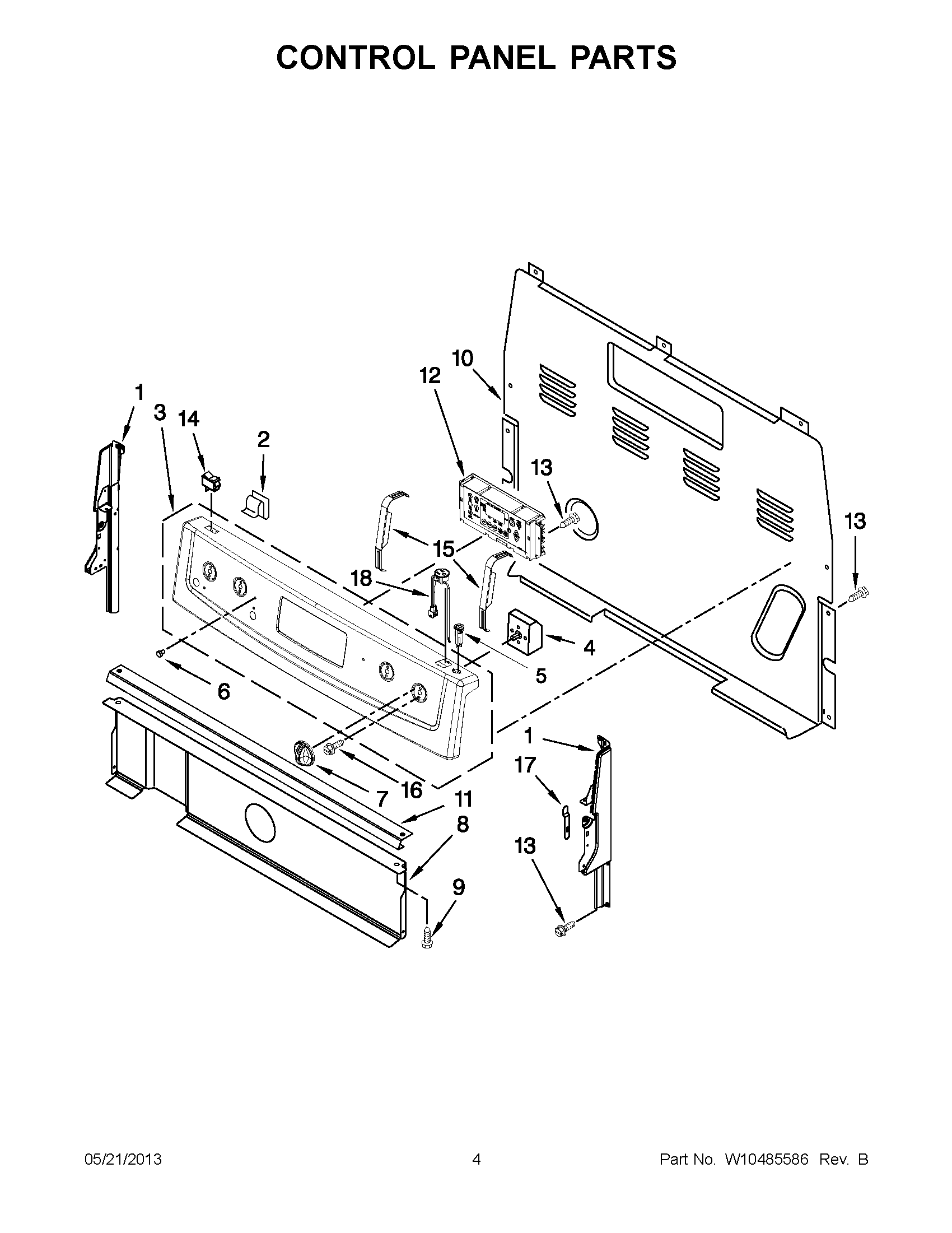

YMER7765WW3 02 – CONTROL PANEL PARTS

YMER7765WW3 02 – CONTROL PANEL PARTS

Written by

in

YMER7765WW3 02 – CONTROL PANEL PARTS

Products

PositionProduct
1ENDCAP (BLACK (LEFT))
1ENDCAP (WHITE (LEFT))
1ENDCAP (WHITE (RIGHT))
1ENDCAP (BLACK (RIGHT))
2MAY 8273564
3MAY W10292026
3MAY W10292028
3MAY W10292027
4SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (DUAL) (LEFT FRONT)
5RECEPTACLE (BLACK)
5RECEPTACLE (WHITE)
6MAY 3196068
7KNOB, INFINITE (WHITE)
7MAY W10211372
8SHIELD, HEAT
9SCREW
10COVER, UPPER REAR
11BRACKET, CONSOLE MOUNTING
12MAY W10476387
12MAY W10476388
13SCREW
14SWITCH, ROCKER (BLACK)
14SWITCH, ROCKER (WHITE)
15MAY W10324410
16SCREW
17CLIP, SPRING
18BREAKER, CIRCUIT (BLACK)
18BREAKER, CIRCUIT (WHITE)
