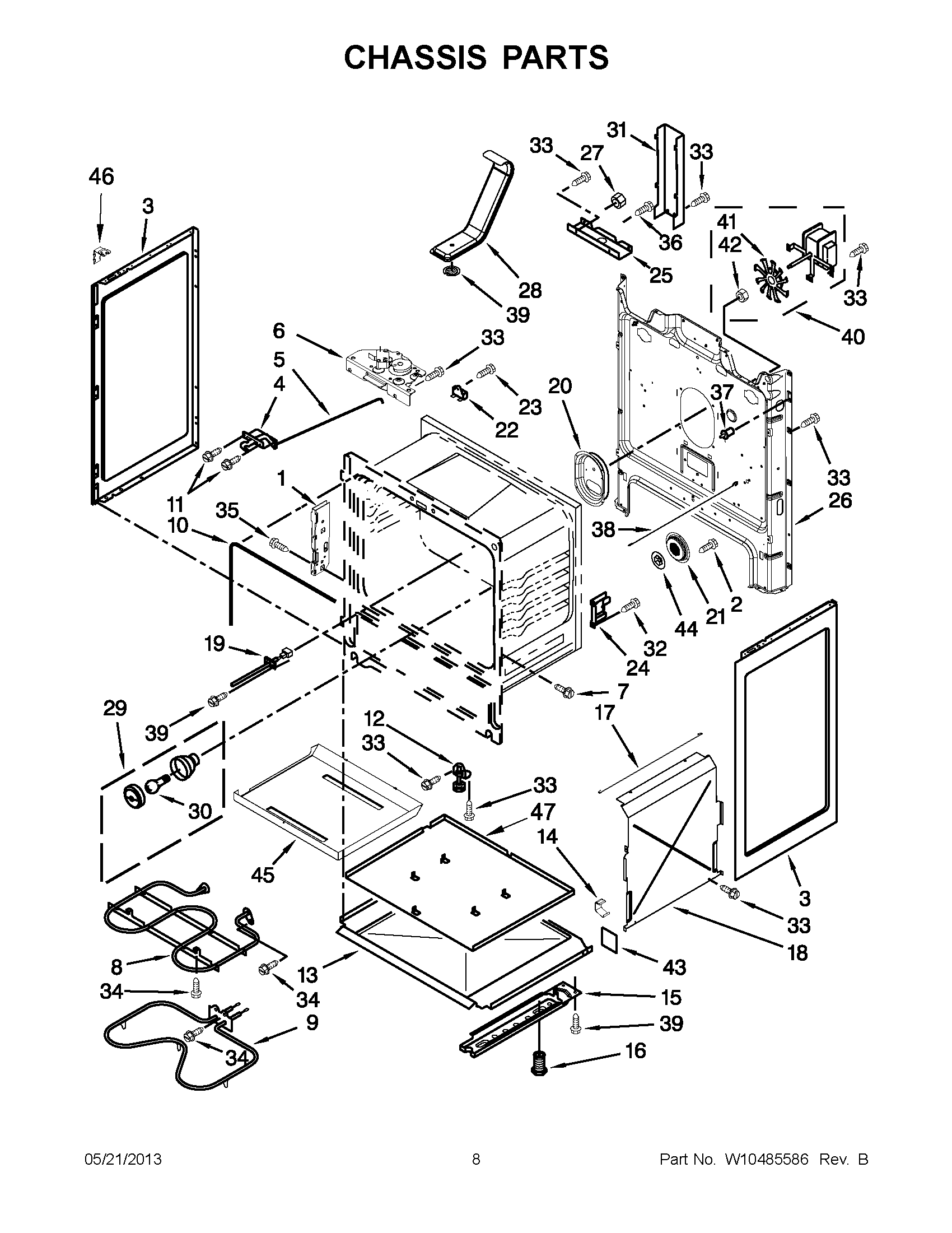

YMER7765WW3 04 – CHASSIS PARTSadmin2025-04-26T08:54:34+00:00YMER7765WW3 04 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | MAY W10208653 |
| NI | INSULATION, BACK |
| NI | INSULATION, FLUE |
| 1 | RECEIVER, HINGE |
| 2 | MAY 4449809 |
| 3 | MAY W10322769 |
| 3 | MAY W10322770 |
| 4 | ASSEMBLY, DOOR LATCH (FRONT) |
| 5 | ROD, LATCH |
| 6 | ASSEMBLY, LATCH (REAR) |
| 7 | SCREW |
| 8 | ELEMENT, BROIL |
| 9 | ELEMENT, BAKE |
| 10 | MAY 8522416 |
| 11 | SCREW |
| 12 | ASSEMBLY, FRONT FOOT |
| 13 | TRAY, INSULATION |
| 14 | CLIP, PANEL |
| 15 | ASSEMBLY, BASE RAIL (LEFT) |
| 15 | ASSEMBLY, BASE RAIL (RIGHT) |
| 16 | FOOT, LEVELING |
| 17 | MAY W10465685 |
| 18 | MAY W10450380 |
| 19 | SENSOR, OVEN |
| 20 | MAY W10134126 |
| 21 | MAY W10134124 |
| 22 | FUSE, THERMAL |
| 23 | SCREW |
| 24 | CLIP, OVEN SUPPORT |
| 25 | BRACKET, SERVICE |
| 26 | MAIN BACK |
| 27 | WP7103P027-60 Whirlpool Nut |
| 28 | TUBE, VENT |
| 29 | ASSEMBLY, LIGHT |
| 30 | BULB, OVEN LIGHT |
| 31 | COVER, TERMINAL BLOCK |
| 32 | SCREW |
| 33 | SCREW |
| 34 | SCREW |
| 35 | MAY W10031780 |
| 36 | SCREW |
| 37 | Switch, Door |
| 38 | ROD, DOOR SWITCH |
| 39 | MAY 9761301 |
| 40 | Fan, Motor Cnvctn |
| 41 | MAY W10116351 |
| 42 | MAY W10213748 |
| 43 | MAY 9759689 |
| 44 | MAY 3400968 |
| 45 | TRAY, HIDDEN BAKE |
| 46 | CLIP, SPRING STEEL |
| 47 | SHIELD, HEAT |
