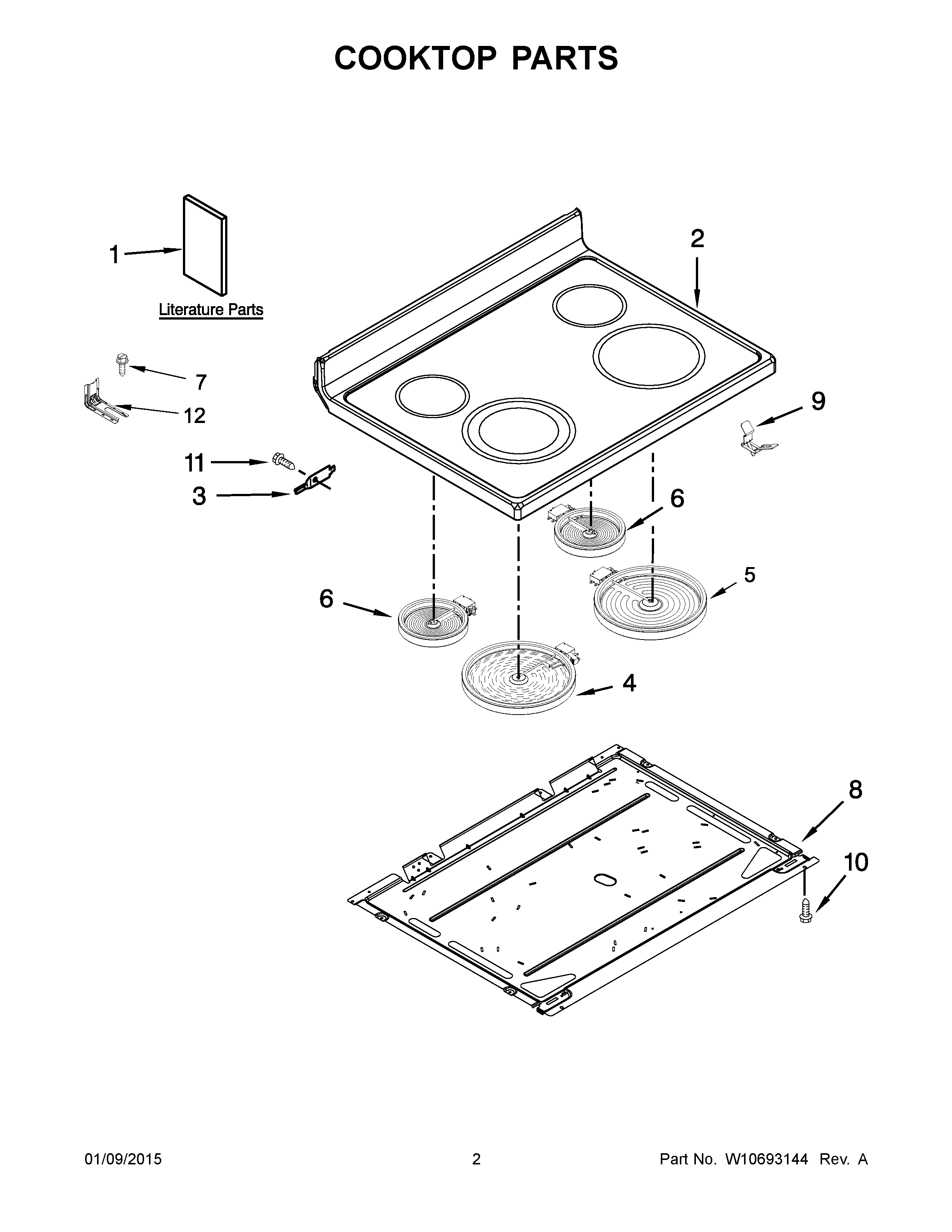

YMER8600DE0 02 – COOKTOP PARTS

YMER8600DE0 02 – COOKTOP PARTS

Written by

in

YMER8600DE0 02 – COOKTOP PARTS

Products

PositionProduct
NIKIT, BARE WIRE ADAPTER BLOCK
NIHARNESS, SENSOR
NIHARNESS, COOKTOP LEFT
NIMAY W10349696
NIHARNESS, MAIN
NILINER (NOT A SERVICEABLE PART)
1AMAY W10667167
1EMAY W10403811
1FTIPS, SAFE COOKING (ENGLISH)
1GTIPS, SAFE COOKING (FRENCH)
1BMAY W10667174
1CMAY W10400064
1DMAY W10400065
1MAY W10667171
2AMAY W10655896
2MAY W10655892
3HINGE, COOKTOP
4ELEMENT (3000/1400W) (LEFT FRONT)
5ELEMENT (3200W) (RIGHT FRONT)
6ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7SCREW, ANTI-TIP KIT
8MAY W10106409
9SPRING, ELEMENT
10SCREW
11SCREW
12BRACKET, ANTI-TIP
