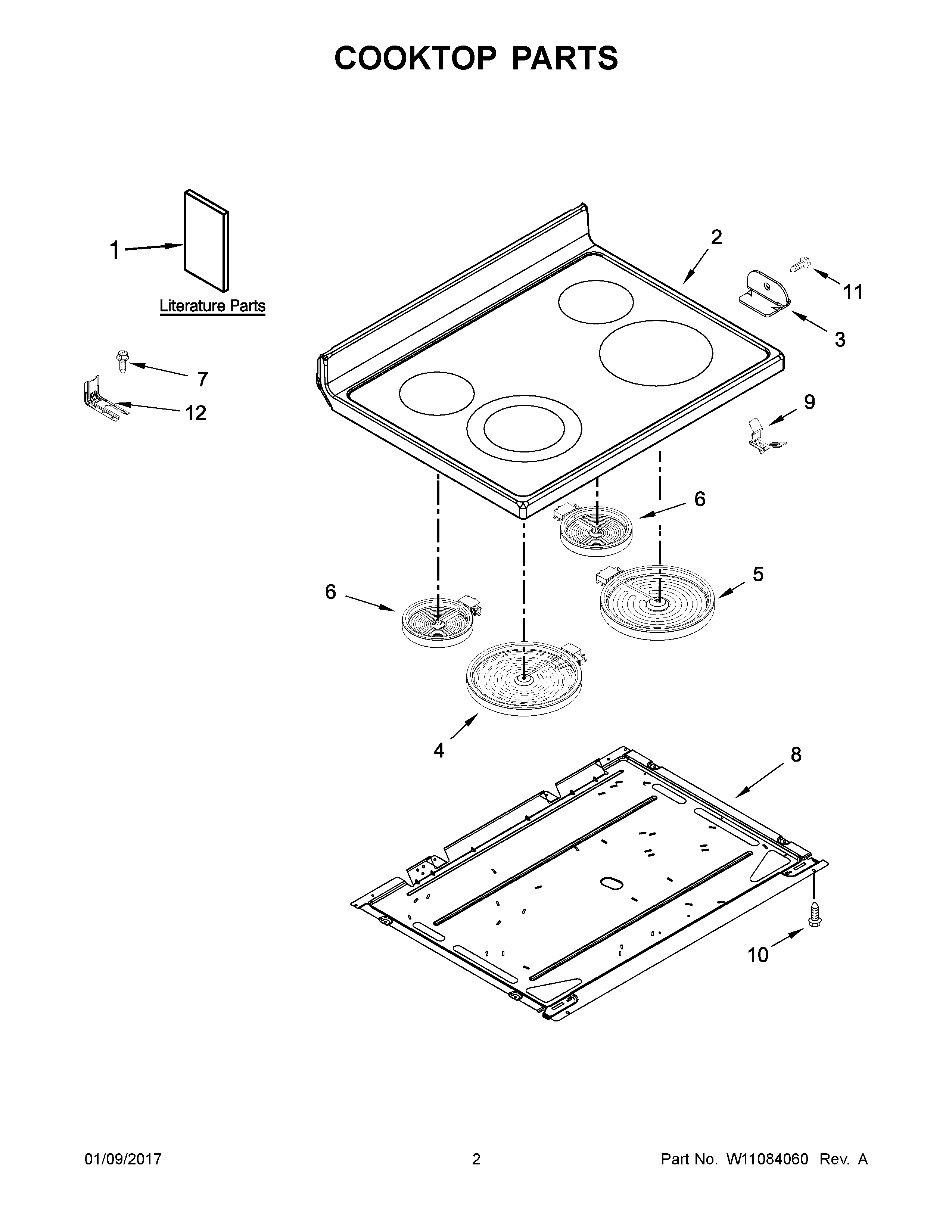

YMER8650FZ0 02 – COOKTOP PARTS

YMER8650FZ0 02 – COOKTOP PARTS

Written by

in

YMER8650FZ0 02 – COOKTOP PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIMAY W10362924
NIMAY W10349696
NIHARNESS, COOKTOP LEFT
NIHARNESS, MAIN
NIHARNESS, SENSOR
1BTECH SHEET, ENGLISH
1DMAY W10400065
1CMAY W10400064
1AMAY W10403812
1ETIPS, SAFE COOKING (ENGLISH)
1MAY W10667171
1FTIPS, SAFE COOKING (FRENCH)
2MAY W10655896
3BRACKET, COOKTOP (LEFT)
3ABRACKET, COOKTOP (RIGHT)
4ELEMENT (3000/1400W) (LEFT FRONT)
5ELEMENT (3200W) (RIGHT FRONT)
6ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7SCREW, ANTI-TIP KIT
8PAN, RADIANT ELEMENT
9SPRING, ELEMENT
10SCREW
11SCREW
12BRACKET, ANTI-TIP
