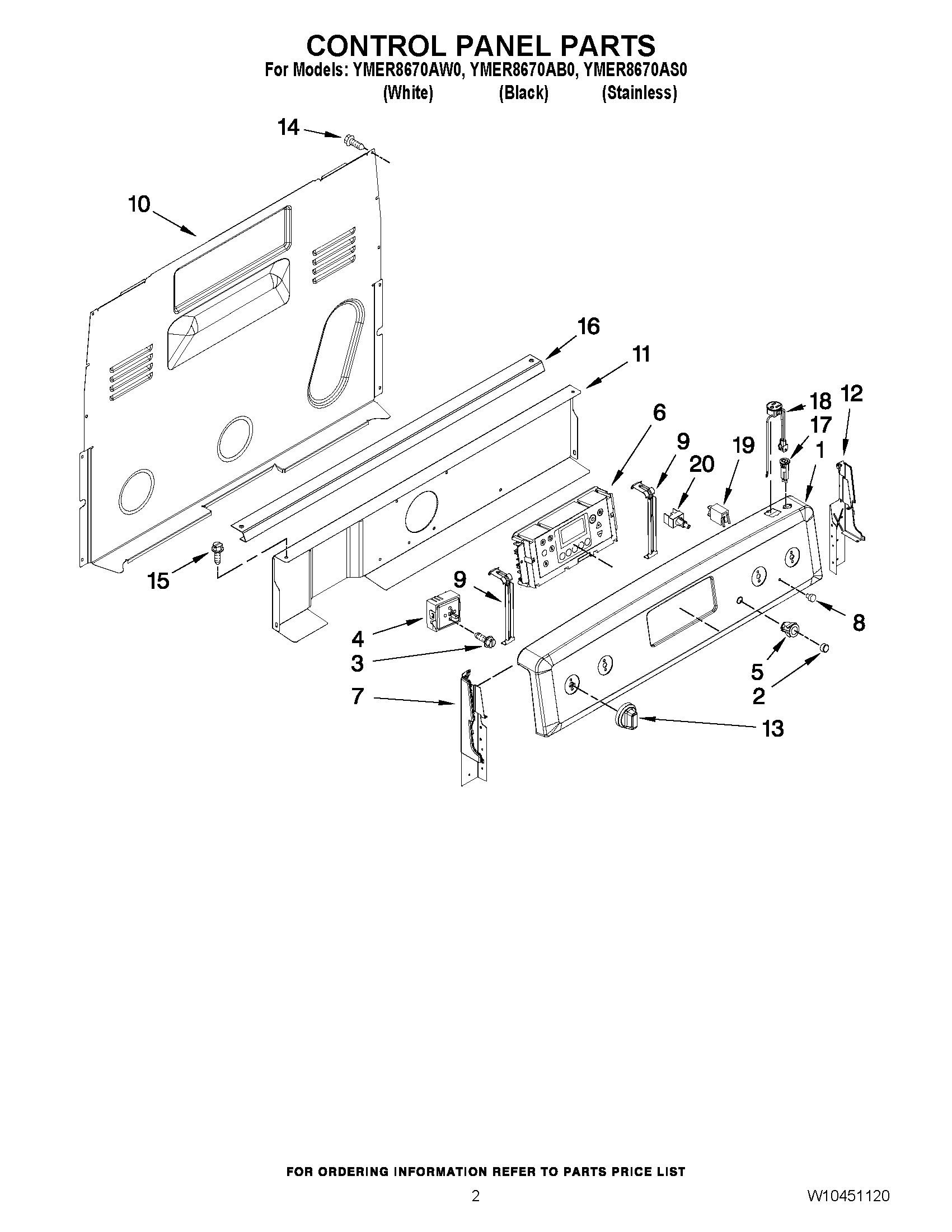

YMER8670AB0 02 – CONTROL PANEL PARTS

YMER8670AB0 02 – CONTROL PANEL PARTS

Written by

in

YMER8670AB0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10333928
1MAY W10333929
1MAY W10333930
2MAY 9757492
2BUTTON, KEEP WARM (BLACK)
2BUTTON, KEEP WARM (STAINLESS)
3SCREW
4SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (DUAL) (LEFT FRONT)
5MAY W10217758
5BEZEL, KEEP WARM (WHITE)
5BEZEL, KEEP WARM (STAINLESS)
6CONTROL (LCC195) (WHITE)
6CONTROL (LCC195) (BLACK)
6CONTROL (LCC195) (STAINLESS)
7ENDCAP (WHITE (LEFT))
7ENDCAP (BLACK (LEFT))
8MAY 3196068
9MAY W10324410
10COVER, UPPER REAR
11SHIELD, HEAT
12ENDCAP (BLACK (RIGHT))
12ENDCAP (WHITE (RIGHT))
13MAY W10370185
13MAY W10370186
13MAY W10370184
14SCREW
15MAY W10362924
16Bracket, Console
17BREAKER, CIRCUIT (WHITE)
17BREAKER, CIRCUIT (BLACK)
18RECEPTACLE (BLACK)
18RECEPTACLE (WHITE)
19MAY 8523265
20SWITCH, WARM CONSOLE MOUNTING
