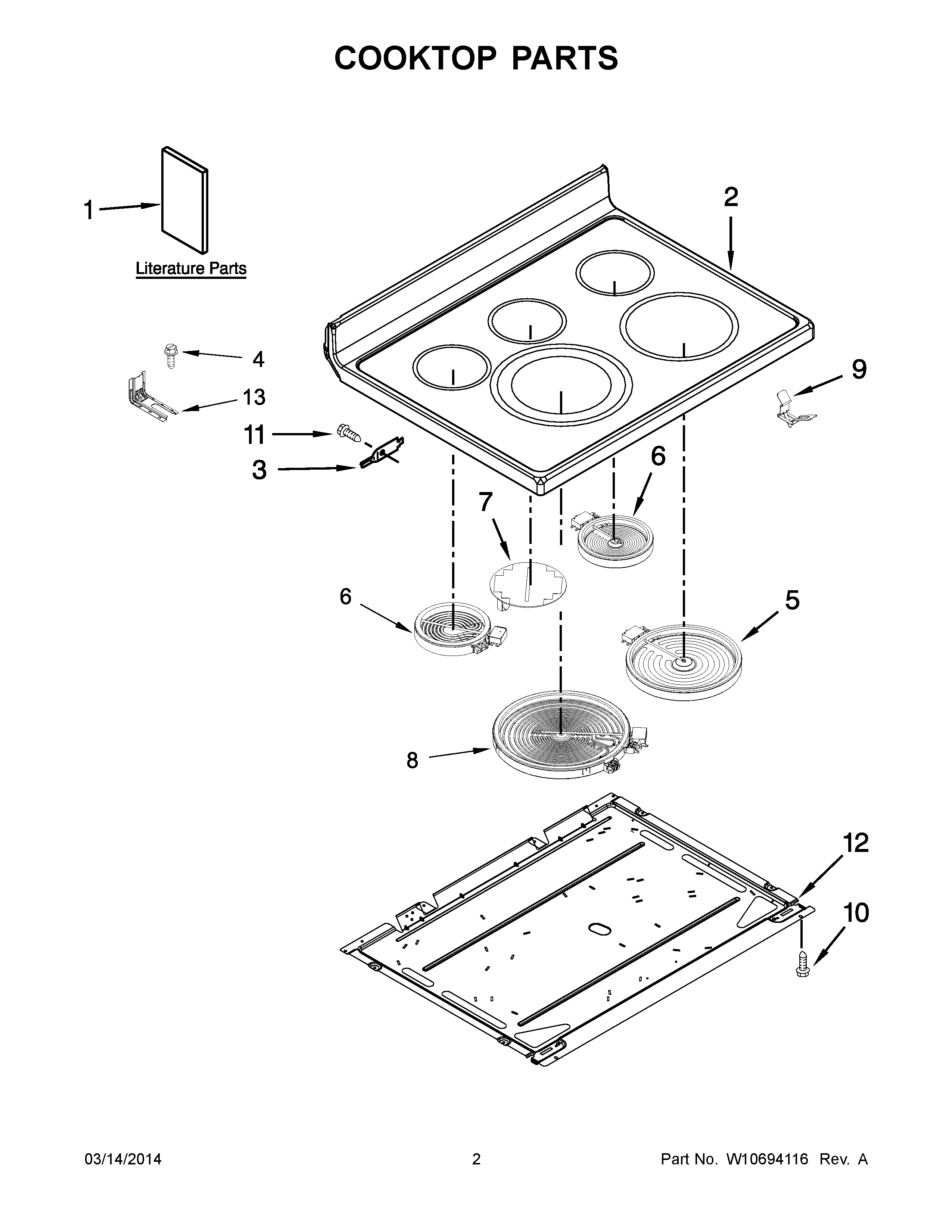

YMER8700DB0 02 – COOKTOP PARTS

YMER8700DB0 02 – COOKTOP PARTS

Written by

in

YMER8700DB0 02 – COOKTOP PARTS

Products

PositionProduct
1MAY W10400064
1MAY W10667171
1MAY W10403811
1TECH SHEET, ENGLISH
1MAY W10400065
1MAY W10667175
1TIPS, SAFE COOKING (FRENCH)
1TIPS, SAFE COOKING (ENGLISH)
2MAY W10655902
2MAY W10655905
3HINGE, COOKTOP
4SCREW, ANTI-TIP KIT
5ELEMENT (3200W) (RIGHT FRONT)
6ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7ELEMENT (CR), WARM ZONE
8ELEMENT (3000/1400W) (LEFT FRONT)
9SPRING, ELEMENT
10SCREW
11SCREW
12MAY W10106409
13BRACKET, ANTI-TIP
