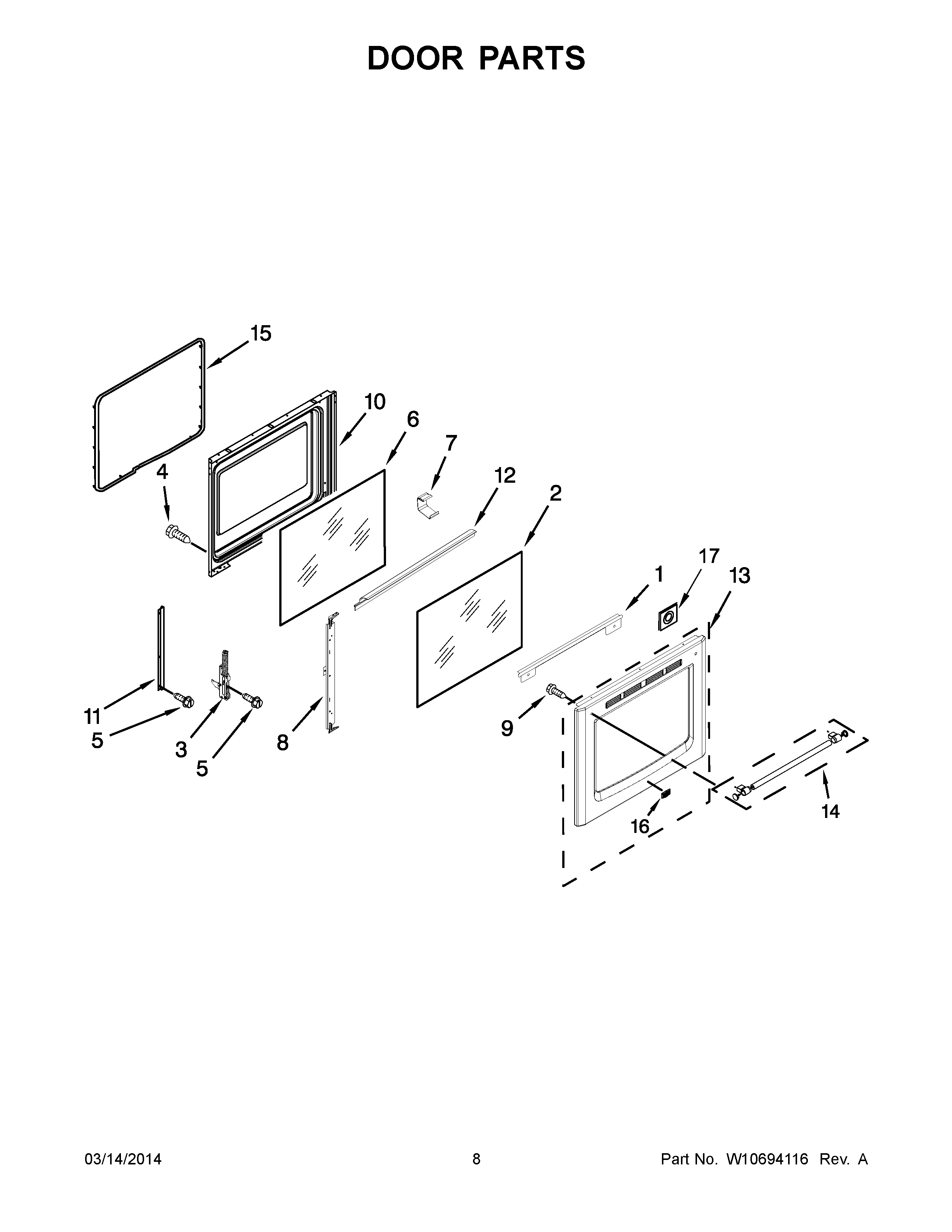

YMER8700DB0 05 – DOOR PARTS

Products

PositionProduct
1TRIM, VENT (BLACK)
1MAY W10330075
2MAY W10615599
3HINGE, DOOR (ACTIVE)
4SCREW
5MAY W10362924
6GLASS, INNER
7CLIP, PANEL
8MAY W10294851
9SCREW
10LINING, DOOR
11MAY W10294852
12MAY W10294853
13MAY W10655831
13MAY W10655834
13MAY W10655838
14MAY W10665831
14HANDLE, DOOR (BLACK)
14HANDLE, DOOR (WHITE)
15MAY W10162385
16MAY W10636267
17MAY 3823F017-45
