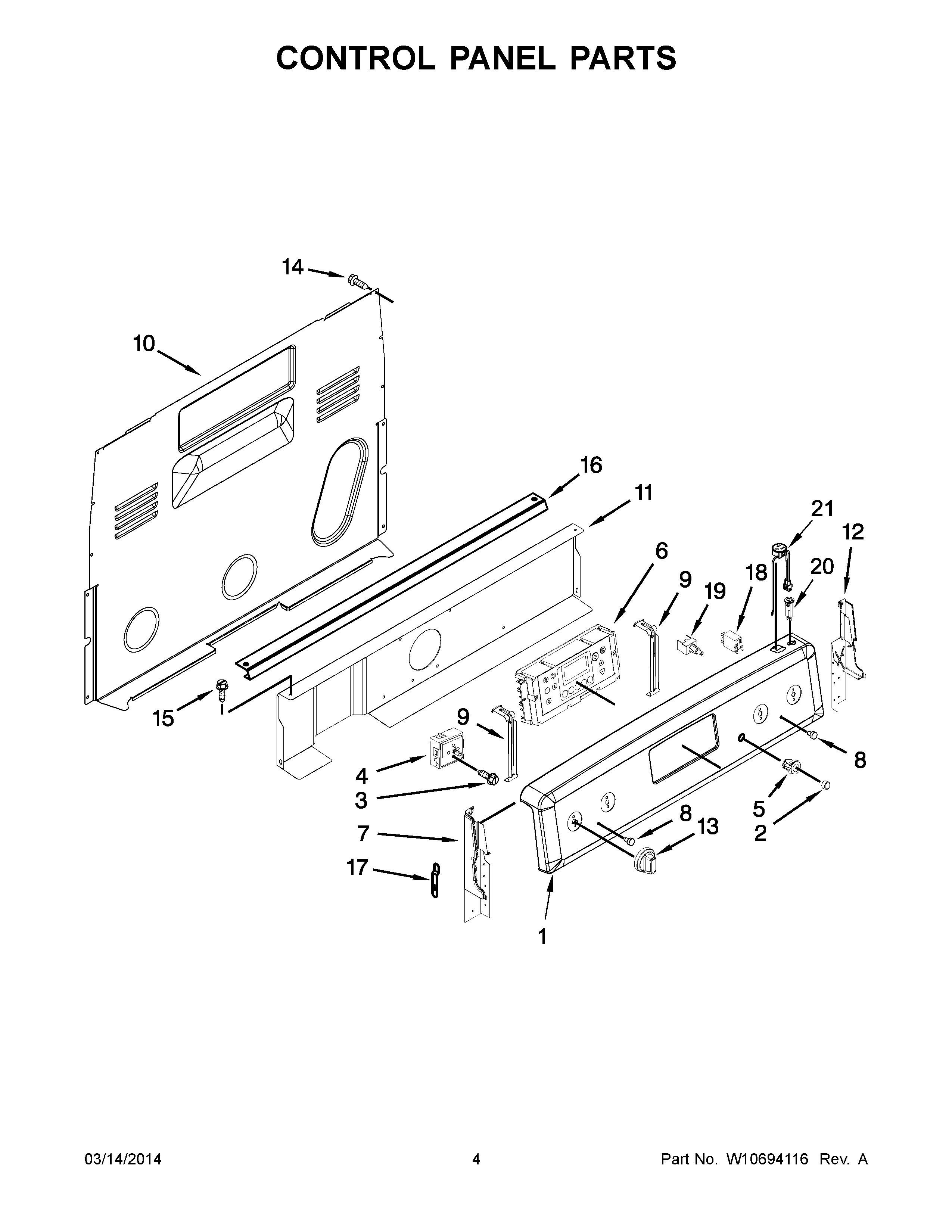

YMER8700DE0 03 – CONTROL PANEL PARTS

Products

Position	Product
1	MAY W10655882
1	MAY W10655883
1	MAY W10655884
2	BUTTON, KEEP WARM (STAINLESS)
2	BUTTON, KEEP WARM (BLACK)
2	MAY 9757492
3	SCREW
4	SWITCH, INFINITE (DUAL) (LEFT FRONT)
4	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4	SWITCH, INFINITE (RIGHT FRONT)
5	MAY W10217758
5	BEZEL, KEEP WARM (WHITE)
5	BEZEL, KEEP WARM (STAINLESS)
6	CONTROL (STAINLESS)
6	MAY W10655840
6	MAY W10655843
7	ENDCAP (BLACK (LEFT))
7	ENDCAP (WHITE (LEFT))
8	MAY 3196068
9	MAY W10324410
10	COVER, UPPER REAR
11	SHIELD, HEAT
12	ENDCAP (BLACK (RIGHT))
12	ENDCAP (WHITE (RIGHT))
13	MAY W10666901
14	SCREW
15	MAY W10362924
16	BRACKET, CONSOLE MOUNTING
17	CLIP, SPRING
18	MAY 8523265
19	SWITCH, WARM CONSOLE MOUNTING
20	BREAKER, CIRCUIT (WHITE)
20	BREAKER, CIRCUIT (BLACK)
21	RECEPTACLE (BLACK)
21	RECEPTACLE (WHITE)
