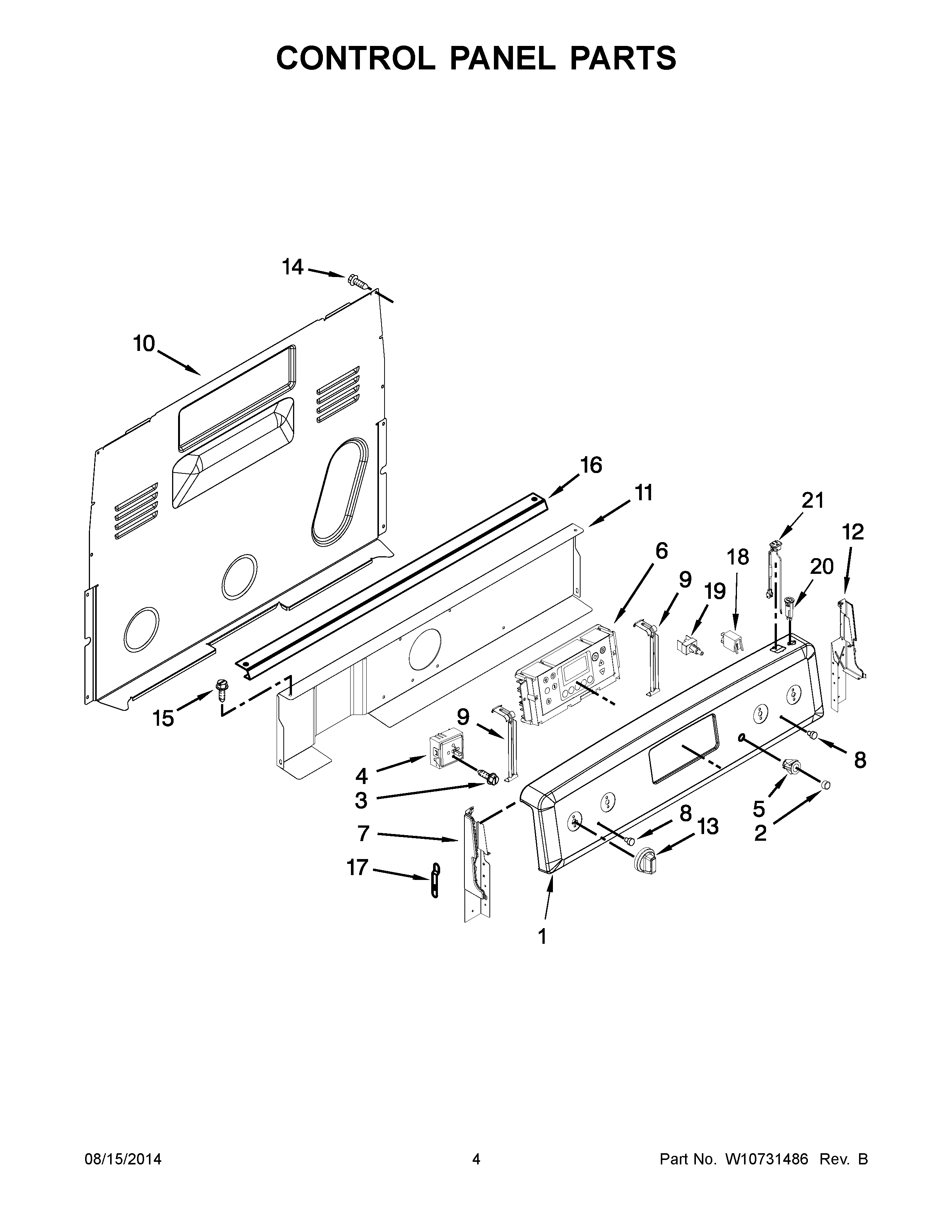

YMER8700DE1 03 – CONTROL PANEL PARTS

YMER8700DE1 03 – CONTROL PANEL PARTS

Written by

in

YMER8700DE1 03 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10655882
1AMAY W10655883
1BMAY W10655884
2ABUTTON, KEEP WARM (BLACK)
2BBUTTON, KEEP WARM (STAINLESS)
2MAY 9757492
3SCREW
4ASWITCH, INFINITE (DUAL) (LEFT FRONT)
4BSWITCH, INFINITE (RIGHT FRONT)
4SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
5BBEZEL, KEEP WARM (STAINLESS)
5BEZEL, KEEP WARM (WHITE)
5AMAY W10217758
6BCONTROL (STAINLESS)
6MAY W10655840
6AMAY W10655843
7AENDCAP (BLACK (LEFT))
7ENDCAP (WHITE (LEFT))
8MAY 3196068
9MAY W10324410
10COVER, UPPER REAR
11SHIELD, HEAT
12AENDCAP (BLACK (RIGHT))
12ENDCAP (WHITE (RIGHT))
13MAY W10666901
14SCREW
15MAY W10362924
16BRACKET, CONSOLE MOUNTING
17CLIP, SPRING
18MAY 8523265
19SWITCH, WARM CONSOLE MOUNTING
20ABREAKER, CIRCUIT (BLACK)
20BREAKER, CIRCUIT (WHITE)
21MAY W10488077
21AMAY W10488078
