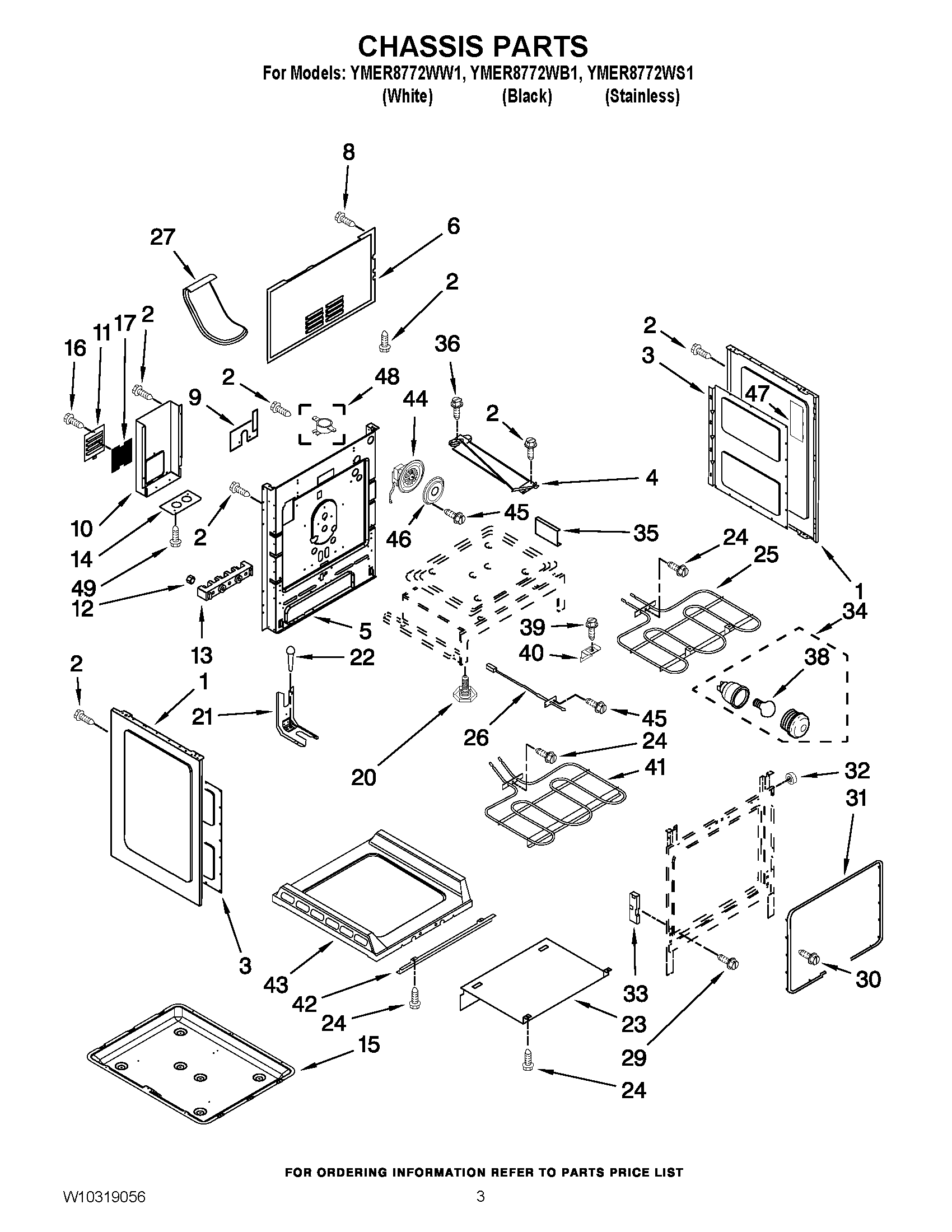

YMER8772WB1 03 – CHASSIS PARTS
Written by
in
YMER8772WB1 03 – CHASSIS PARTS
Products
Position
Product
NI
MAY W10182346
NI
MAY 7002P362-60
NI
MAY 7002P361-60
NI
MAY 4820F014-59
NI
MAY 3804F316-51
NI
MAY W10243056
1
MAY 2618F172-69
1
MAY 2618F172-58
3
Retainer, Side
4
MAY W10275451
5
COVER, MAIN WIRE
6
MAIN BACK
8
SCREW
9
MAY 7003P145-60
10
MAY W10243045
11
MAY 4005P704-51
12
WP7103P027-60 Whirlpool Nut
13
MAY 7401P038-60
14
MAY 3605P146-51
15
PAN, BAKE
16
MAY 3196160
17
MAY W10260573
20
Leg, Leveling
21
BRACKET, ANTI-TIP
22
SCREW, ANTI-TIP KIT
23
MAY 3604F371-51
24
SCREW
25
MAY 7406P493-60
26
SENSOR, OVEN
27
MAY 8026P081-60
29
SCREW (10-24X5/16-NI)
31
MAY W10162385
32
MAY 8010P148-60
33
MAY 7106P125-60
34
MAY 3196701
35
MAY 3801P798-51
36
SCREW
38
BULB, OVEN LIGHT
39
MAY 7101P618-60
40
MAY 3801P822-45
41
MAY 7406P451-60
42
MAY 3807P680-45
43
MAY W10211367
44
Fan Assy, Convect
45
SCREW
46
MAY 3605F305-19
47
INSULATION
48
Switch, Thermal
49
MAY 7101P336-60
←
