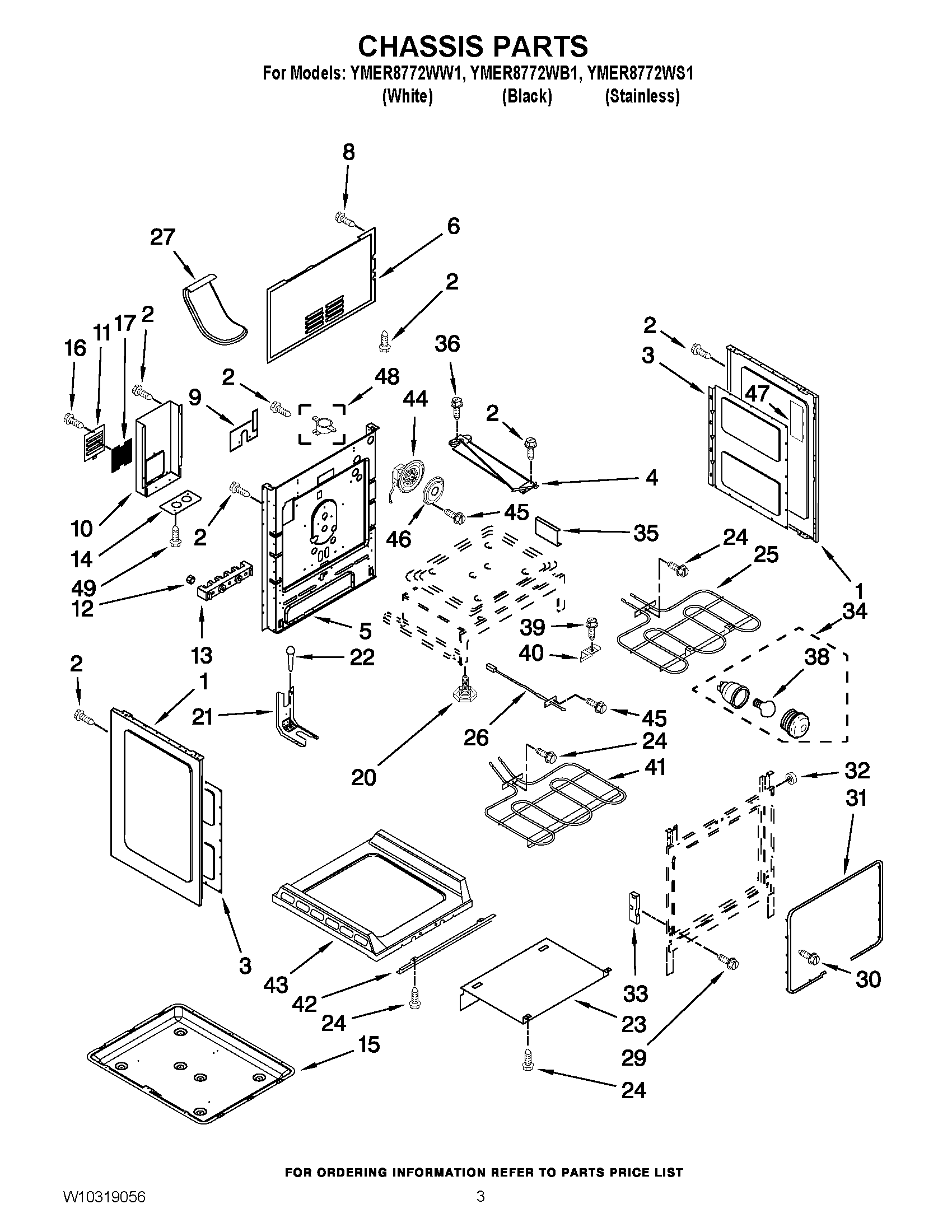

YMER8772WS1 03 – CHASSIS PARTSadmin2025-04-26T08:54:20+00:00YMER8772WS1 03 – CHASSIS PARTS
Products
| Position | Product |
|---|
| NI | MAY W10182346 |
| NI | MAY 7002P362-60 |
| NI | MAY 7002P361-60 |
| NI | MAY 4820F014-59 |
| NI | MAY 3804F316-51 |
| NI | MAY W10243056 |
| 1 | MAY 2618F172-69 |
| 1 | MAY 2618F172-58 |
| 3 | Retainer, Side |
| 4 | MAY W10275451 |
| 5 | COVER, MAIN WIRE |
| 6 | MAIN BACK |
| 8 | SCREW |
| 9 | MAY 7003P145-60 |
| 10 | MAY W10243045 |
| 11 | MAY 4005P704-51 |
| 12 | WP7103P027-60 Whirlpool Nut |
| 13 | MAY 7401P038-60 |
| 14 | MAY 3605P146-51 |
| 15 | PAN, BAKE |
| 16 | MAY 3196160 |
| 17 | MAY W10260573 |
| 20 | Leg, Leveling |
| 21 | BRACKET, ANTI-TIP |
| 22 | SCREW, ANTI-TIP KIT |
| 23 | MAY 3604F371-51 |
| 24 | SCREW |
| 25 | MAY 7406P493-60 |
| 26 | SENSOR, OVEN |
| 27 | MAY 8026P081-60 |
| 29 | SCREW (10-24X5/16-NI) |
| 31 | MAY W10162385 |
| 32 | MAY 8010P148-60 |
| 33 | MAY 7106P125-60 |
| 34 | MAY 3196701 |
| 35 | MAY 3801P798-51 |
| 36 | SCREW |
| 38 | BULB, OVEN LIGHT |
| 39 | MAY 7101P618-60 |
| 40 | MAY 3801P822-45 |
| 41 | MAY 7406P451-60 |
| 42 | MAY 3807P680-45 |
| 43 | MAY W10211367 |
| 44 | Fan Assy, Convect |
| 45 | SCREW |
| 46 | MAY 3605F305-19 |
| 47 | INSULATION |
| 48 | Switch, Thermal |
| 49 | MAY 7101P336-60 |
