YMER8775AS0 01 – COOKTOP PARTS

YMER8775AS0 01 – COOKTOP PARTS

Written by

in

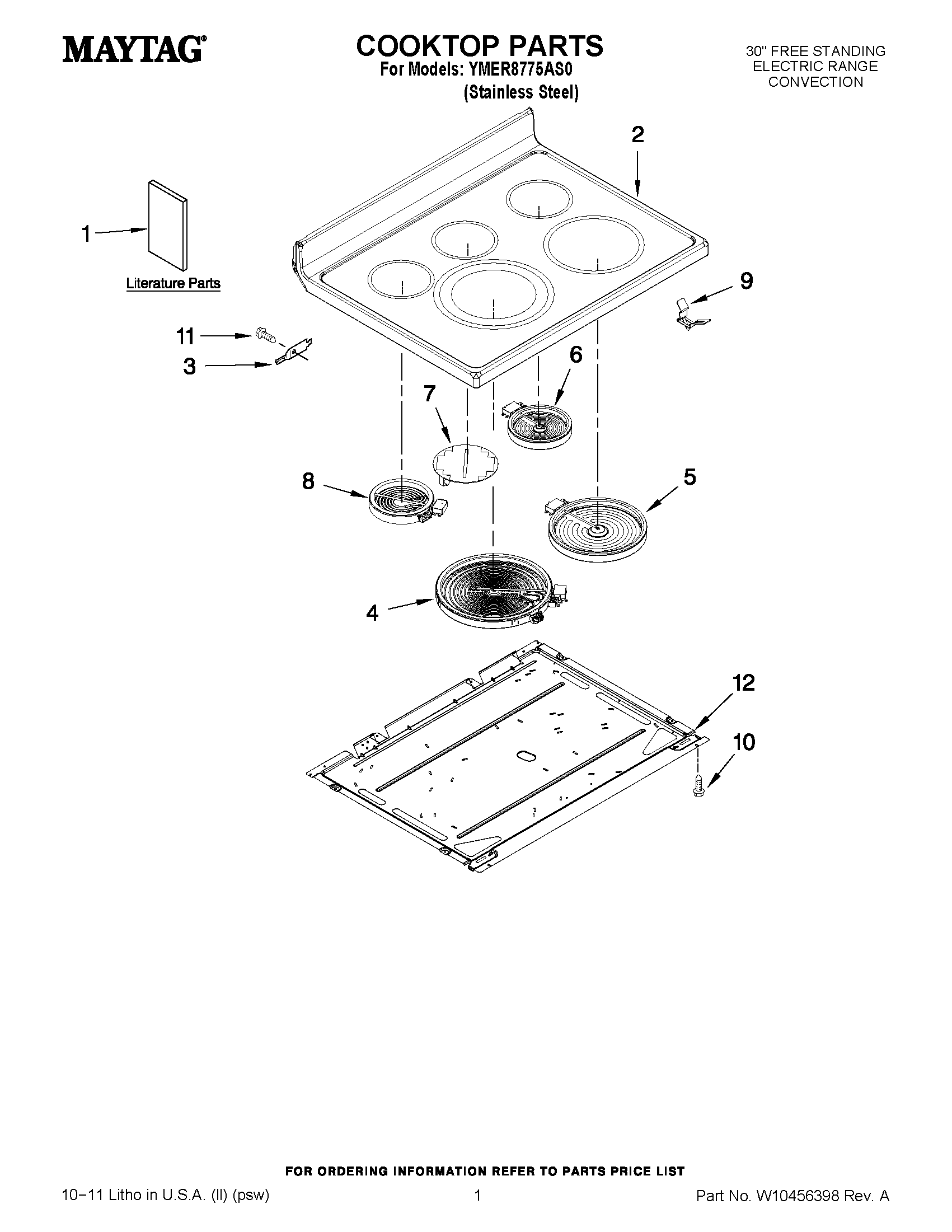

YMER8775AS0 01 – COOKTOP PARTS

Products

PositionProduct
1MAY W10400064
1MAY W10400065
1WIRING DIAGRAM (ENGLISH)
1MAY W10392922
1MAY W10403812
1MAY W10432692
1TIPS, SAFE COOKING (FRENCH)
1TIPS, SAFE COOKING (ENGLISH)
2MAY W10380671
3HINGE, COOKTOP
4ELEMENT (LF) 3000/2200/1100W
5ELEMENT (3200W) (RIGHT FRONT)
6ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7ELEMENT, WARM ZONE (CENTER REAR)
8ELEMENT (1300W) (LEFT REAR)
9SPRING, ELEMENT
10SCREW
11SCREW
12MAY W10106409
