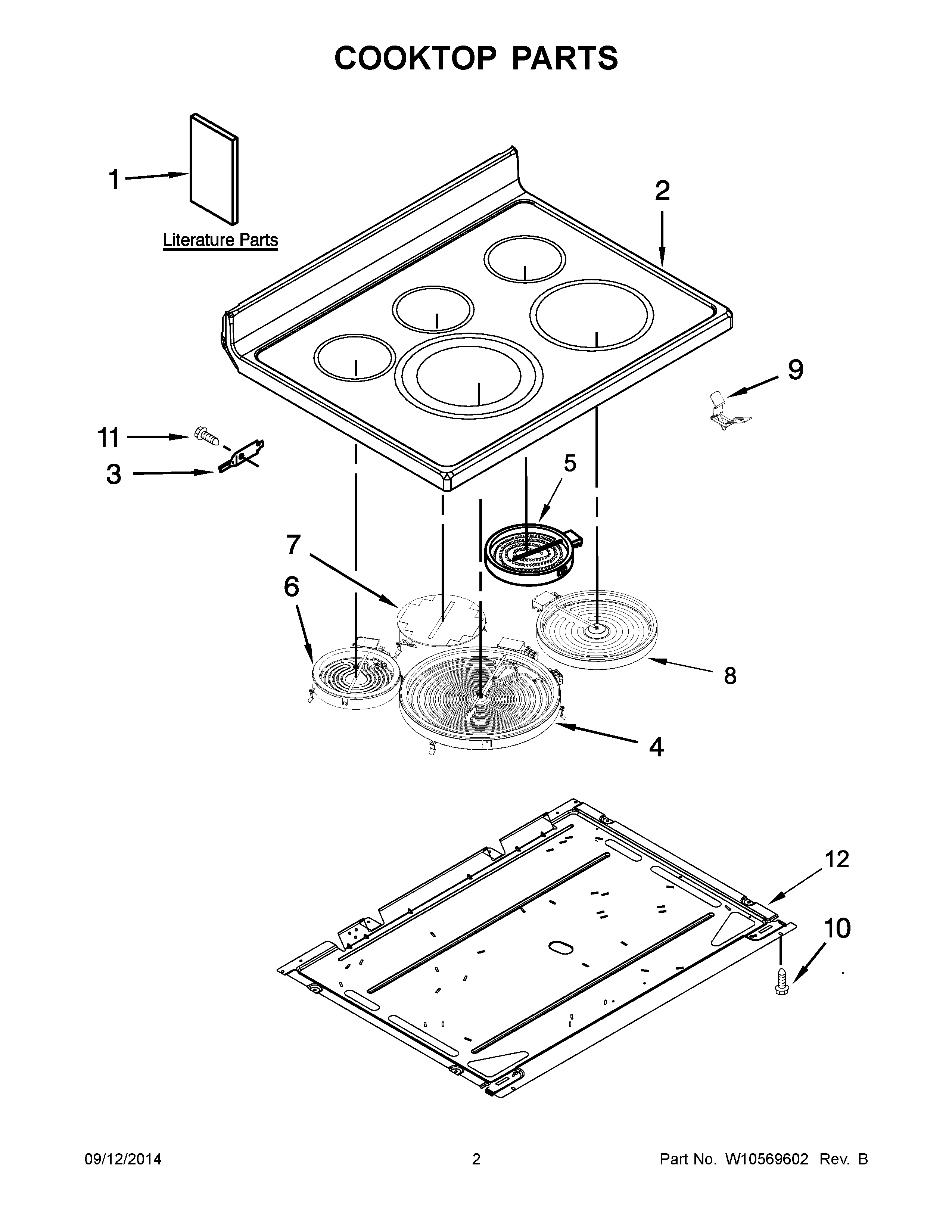

YMER8775BS0 02 – COOKTOP PARTS

Products

Position	Product
1B	MAY W10400064
1C	MAY W10400065
1A	MAY W10392922
1	MAY W10403812
1F	MAY W10522406
1G	MAY W10522407
1E	TIPS, SAFE COOKING (FRENCH)
1D	TIPS, SAFE COOKING (ENGLISH)
2	MAY W10380671
3	HINGE, COOKTOP
4	TRIPLE (RF)
5	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
6	ELEMENT (1300W) (LEFT REAR)
7	MAY W10476723
8	ELEMENT (3200W) (RIGHT FRONT)
9	SPRING, ELEMENT
10	SCREW
11	SCREW
12	MAY W10106409
