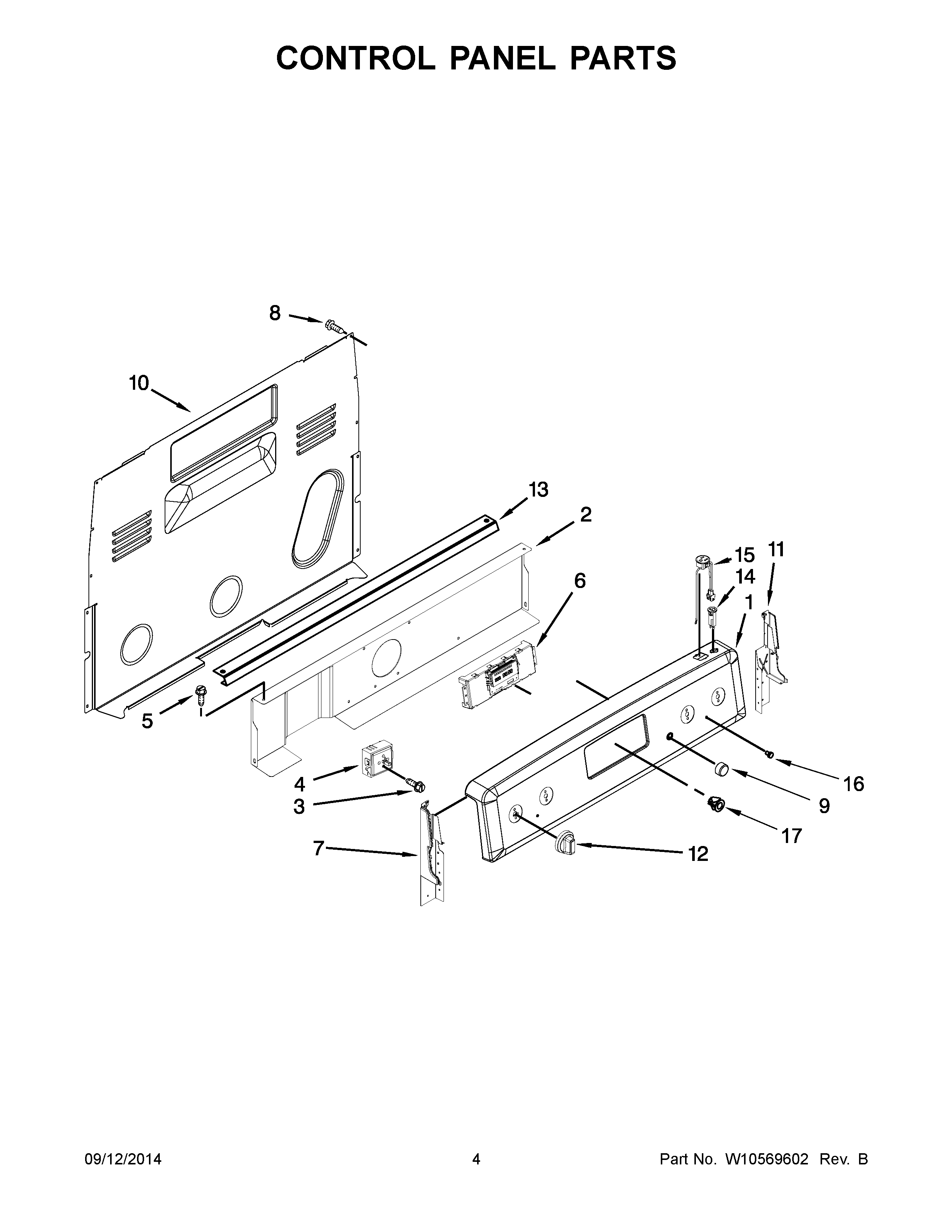

YMER8775BS0 03 – CONTROL PANEL PARTS

YMER8775BS0 03 – CONTROL PANEL PARTS

Written by

in

YMER8775BS0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY W10339453
2SHIELD, HEAT
3SCREW
4BSWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (LEFT FRONT)
4ASWITCH, INFINITE (RIGHT FRONT)
5MAY W10362924
6MAY W10586723
7ENDCAP (BLACK (LEFT))
8SCREW
9BUTTON, KEEP WARM (STAINLESS)
10COVER, UPPER REAR
11ENDCAP (BLACK (RIGHT))
12MAY W10370186
13BRACKET, CONSOLE MOUNTING
14BREAKER, CIRCUIT (BLACK)
15RECEPTACLE (BLACK)
16MAY 3196068
17BEZEL, KEEP WARM (STAINLESS)
