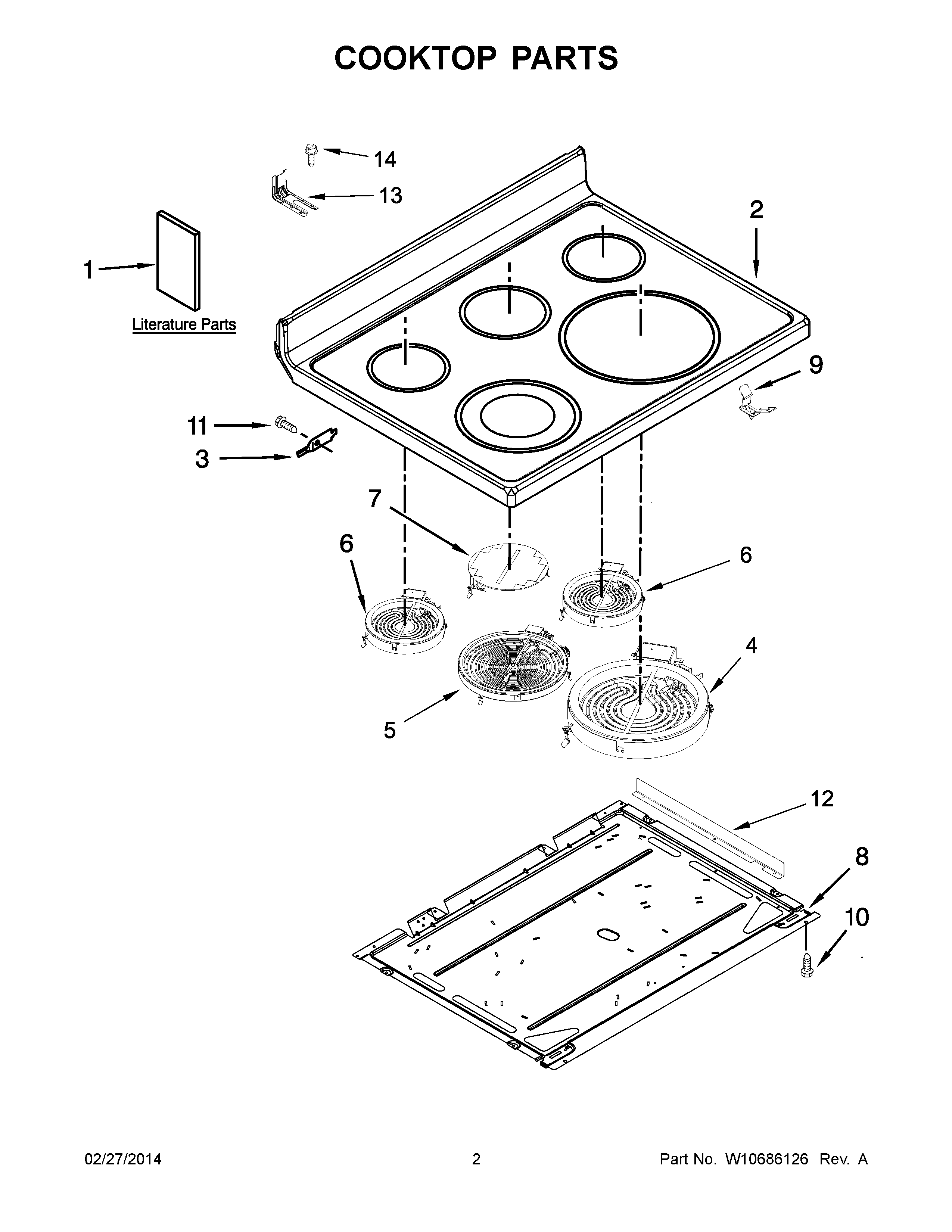

YMER8800DE0 02 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1TECH SHEET, (FRENCH)
1TECH SHEET, (ENGLISH)
1USE AND CARE GUIDE
1MAY W10403811
1MAY W10400064
2COOKTOP (WHITE)
2COOKTOP (BLACK)
3HINGE, COOKTOP
4ELEMENT (3200W) (RIGHT FRONT)
5ELEMENT (3000W, 1000/2000W) (LEFT FRONT)
6ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7ELEMENT, WARM ZONE (CENTER REAR)
8MAY W10106409
9SPRING, ELEMENT
10SCREW
11SCREW
12MAY W10348913
13BRACKET, ANTI-TIP
14SCREW, ANTI-TIP KIT
