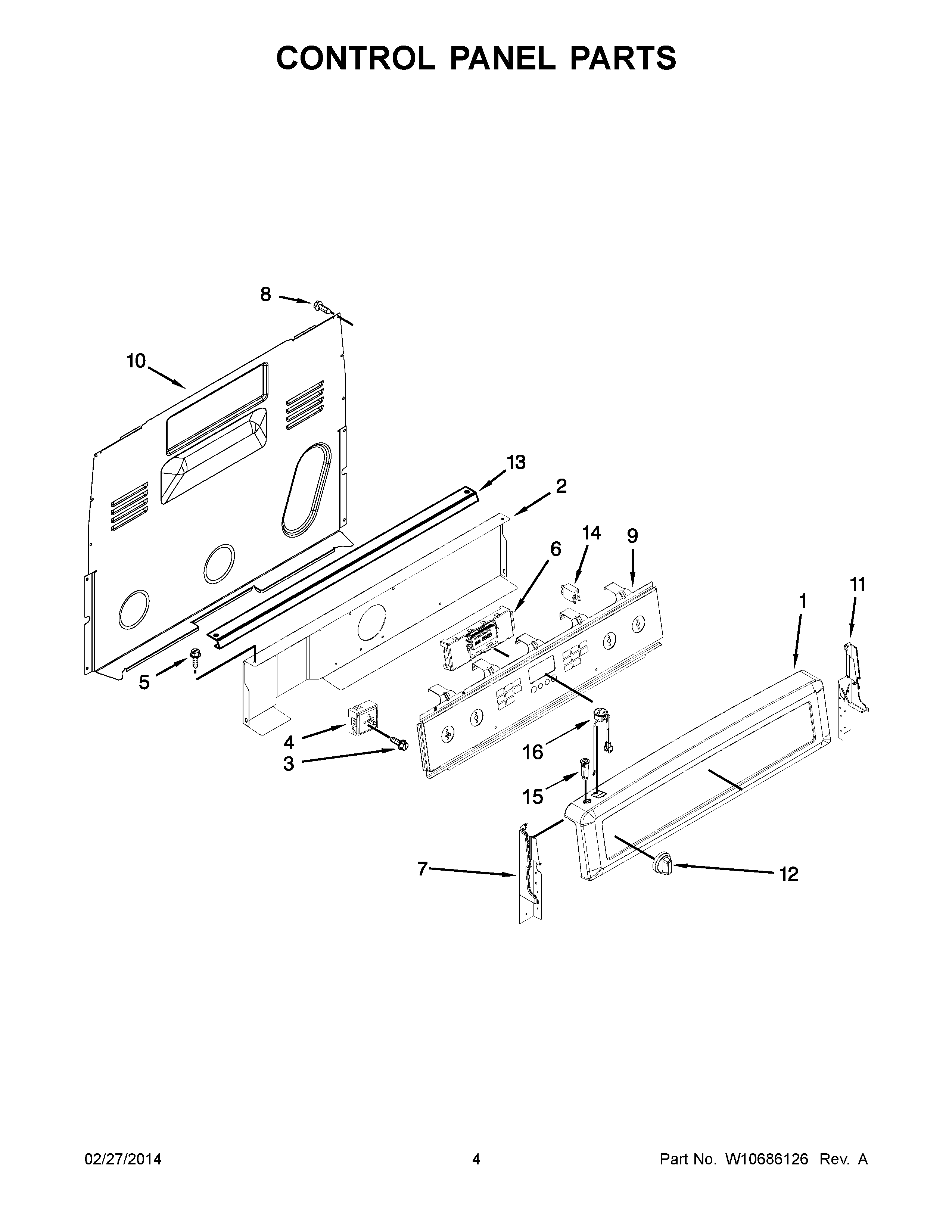

YMER8800DH0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CONSOLE, PANEL (STAINLESS)
1CONSOLE, PANEL (BLACK)
1CONSOLE, PANEL (WHITE)
2SHIELD, HEAT
3SCREW
4SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (RIGHT FRONT)
4SWITCH, INFINITE (DUAL) (LEFT FRONT)
5MAY W10362924
6CONTROL (MRC)
7ENDCAP (WHITE (LEFT))
7ENDCAP (BLACK (LEFT))
8SCREW
9MAY W10655851
9MAY W10655849
9MAY W10655846
10COVER, UPPER REAR
11ENDCAP (BLACK (RIGHT))
11ENDCAP (WHITE (RIGHT))
12MAY W10666901
13BRACKET, CONSOLE MOUNTING
14MAY 8523265
15BREAKER, CIRCUIT (WHITE)
15BREAKER, CIRCUIT (BLACK)
16RECEPTACLE (BLACK)
16RECEPTACLE (WHITE)
