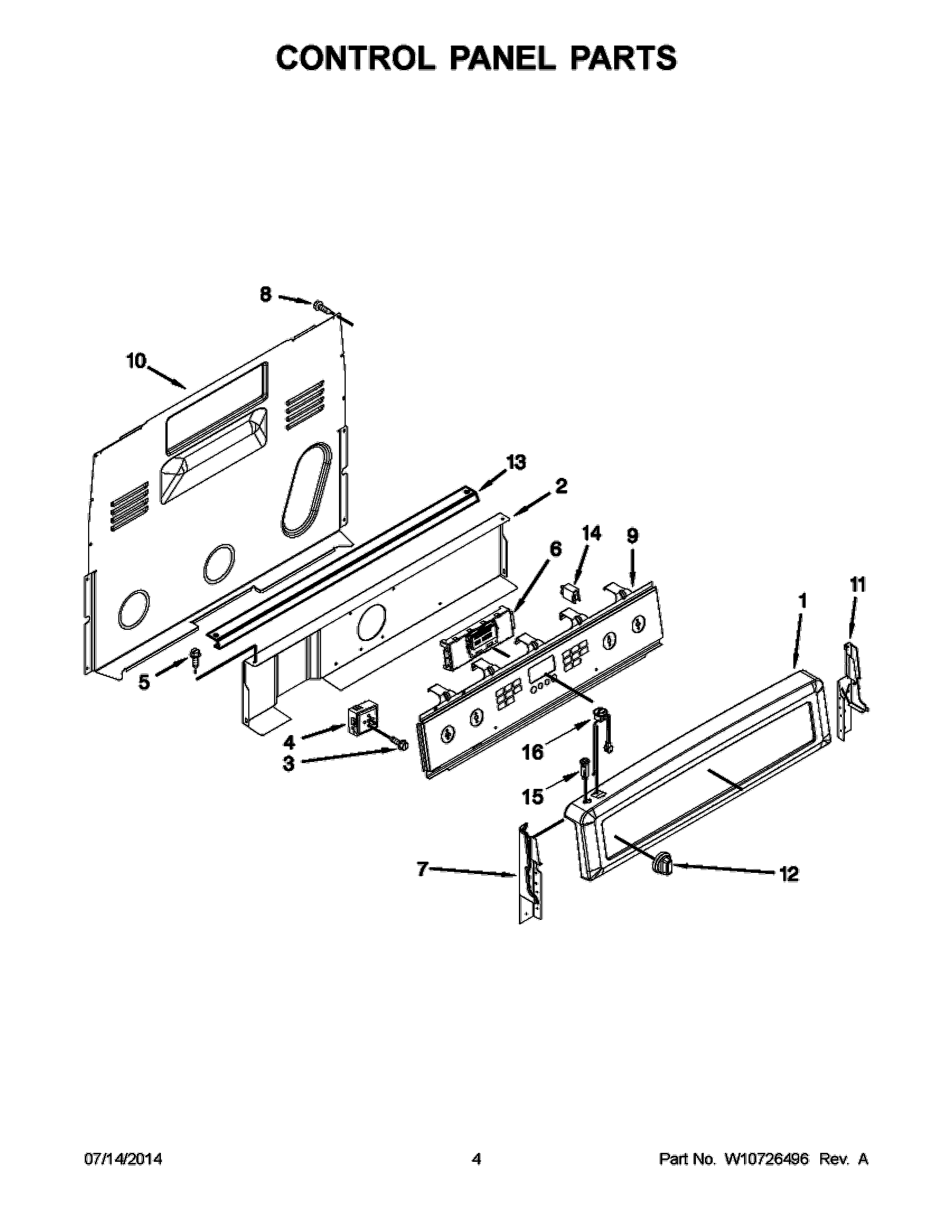

YMER8800DH1 03 – CONTROL PANEL PARTS

Products

PositionProduct
1BCONSOLE, PANEL (STAINLESS)
1ACONSOLE, PANEL (BLACK)
1CONSOLE, PANEL (WHITE)
2SHIELD, HEAT
3SCREW
4SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4BSWITCH, INFINITE (RIGHT FRONT)
4ASWITCH, INFINITE (DUAL) (LEFT FRONT)
5MAY W10362924
6CONTROL (MRC)
7ENDCAP (WHITE (LEFT))
7AENDCAP (BLACK (LEFT))
8SCREW
9MAY W10655846
9BMAY W10655851
9AMAY W10655849
10COVER, UPPER REAR
11AENDCAP (BLACK (RIGHT))
11ENDCAP (WHITE (RIGHT))
12MAY W10666901
13BRACKET, CONSOLE MOUNTING
14MAY 8523265
15ABREAKER, CIRCUIT (BLACK)
15BREAKER, CIRCUIT (WHITE)
16AMAY W10488077
16MAY W10488078
