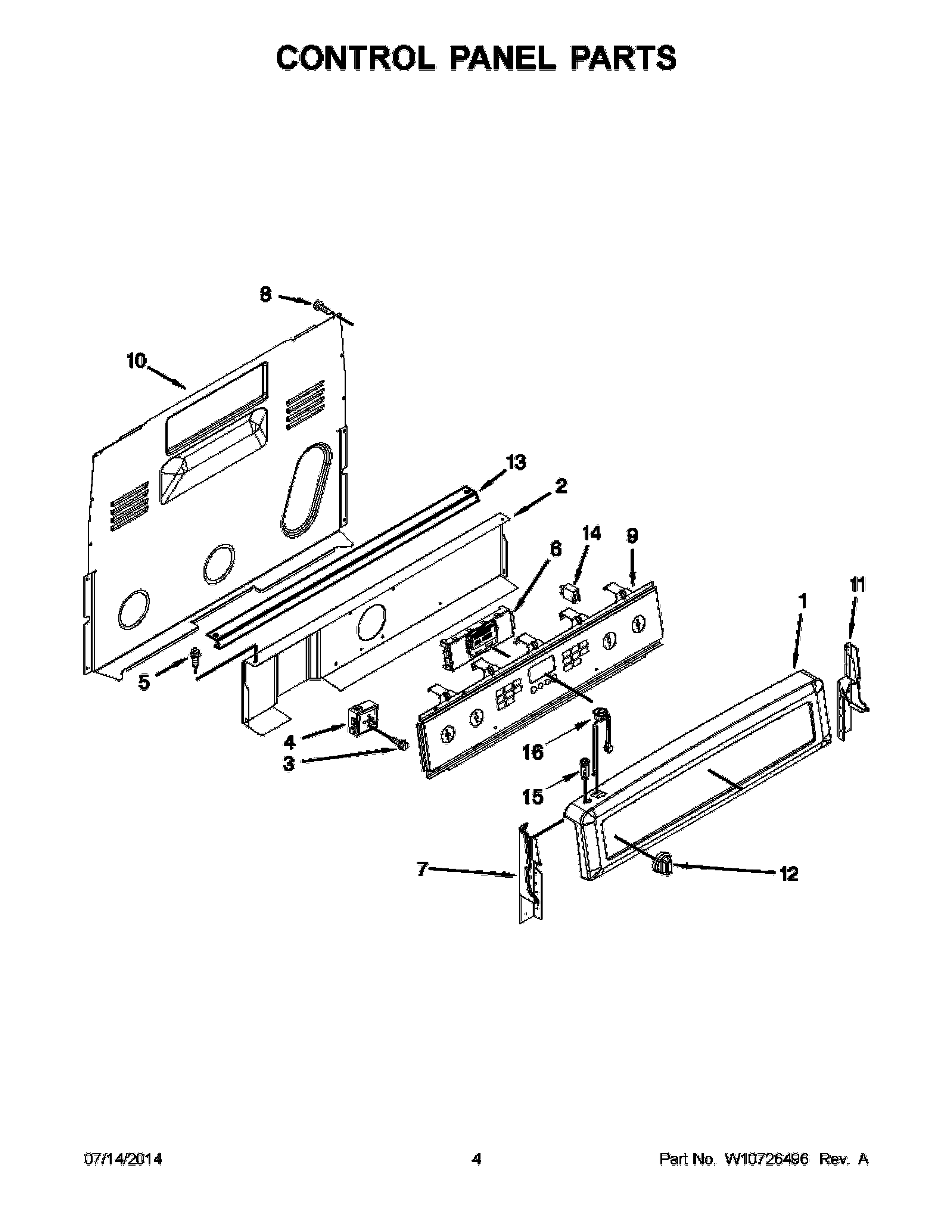

YMER8800DS1 03 – CONTROL PANEL PARTS

Products

Position	Product
1B	CONSOLE, PANEL (STAINLESS)
1A	CONSOLE, PANEL (BLACK)
1	CONSOLE, PANEL (WHITE)
2	SHIELD, HEAT
3	SCREW
4	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4B	SWITCH, INFINITE (RIGHT FRONT)
4A	SWITCH, INFINITE (DUAL) (LEFT FRONT)
5	MAY W10362924
6	CONTROL (MRC)
7	ENDCAP (WHITE (LEFT))
7A	ENDCAP (BLACK (LEFT))
8	SCREW
9	MAY W10655846
9B	MAY W10655851
9A	MAY W10655849
10	COVER, UPPER REAR
11A	ENDCAP (BLACK (RIGHT))
11	ENDCAP (WHITE (RIGHT))
12	MAY W10666901
13	BRACKET, CONSOLE MOUNTING
14	MAY 8523265
15A	BREAKER, CIRCUIT (BLACK)
15	BREAKER, CIRCUIT (WHITE)
16A	MAY W10488077
16	MAY W10488078
