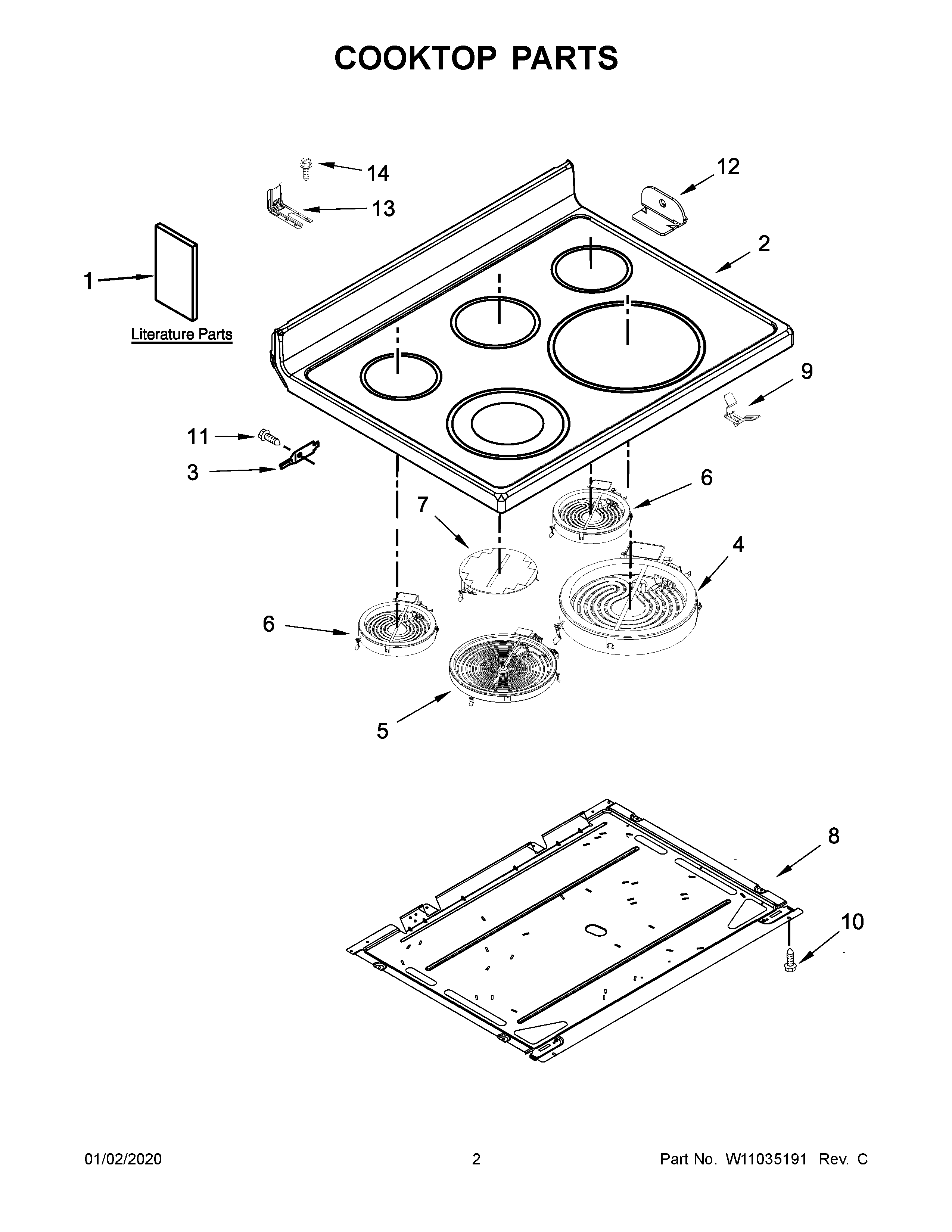

YMER8800FB0 02 – COOKTOP PARTS

YMER8800FB0 02 – COOKTOP PARTS

Written by

in

YMER8800FB0 02 – COOKTOP PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIHARNESS, SENSOR
NIMAY W10349696
NIHARNESS, WARM ZONE
NIHARNESS, MAIN
NIMAY W10349682
1BTECH SHEET, (ENGLISH)
1CTECH SHEET, (FRENCH)
1EMAY W10400065
1DMAY W10400064
1USE AND CARE GUIDE
1AMAY W10403812
2ACOOKTOP (WHITE)
2COOKTOP (BLACK)
3HINGE, COOKTOP
4ELEMENT (3200W) (RIGHT FRONT)
5ELEMENT (3000W, 1000/2000W) (LEFT FRONT)
6ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7ELEMENT, WARM ZONE (CENTER)
8PAN, RADIANT ELEMENT
9SPRING, ELEMENT
10SCREW
11SCREW
12BRACKET, COOKTOP (LEFT)
12ABRACKET, COOKTOP (RIGHT)
13ANTI-TIP BRACKET
14SCREW, ANTI-TIP KIT
