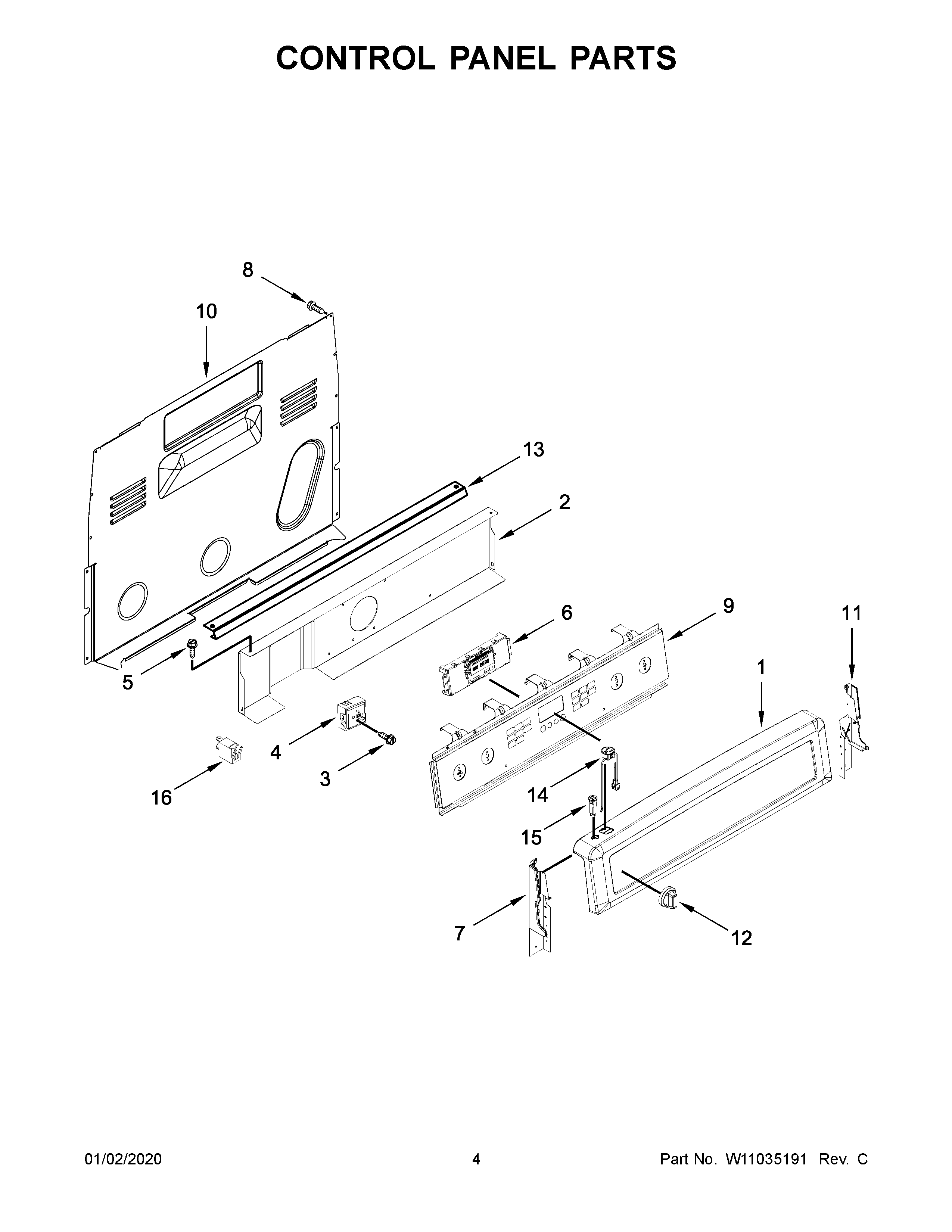

YMER8800FB0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1ACONSOLE (WHITE)
1CONSOLE (BLACK)
2SHIELD, HEAT
3SCREW
4BSWITCH, INFINITE (RIGHT FRONT)
4ASWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (DUAL) (LEFT FRONT)
5MAY W10362924
6CONTROL (MRC)
7AENDCAP (WHITE (LEFT))
7ENDCAP (BLACK (LEFT))
8SCREW
9OVERLAY, ACTIVE (BLACK)
9AOVERLAY, ACTIVE (WHITE)
10COVER, UPPER REAR
11ENDCAP (BLACK (RIGHT))
11AENDCAP (WHITE (RIGHT))
12KNOB (BLACK)
12AKNOB (WHITE)
13BRACKET, CONSOLE MOUNTING
14RECEPTACLE, FUSED (BLACK)
14ARECEPTACLE, FUSED (WHITE)
15ABREAKER, CIRCUIT (WHITE)
15BREAKER, CIRCUIT (BLACK)
16HOT SURFACE INDICATOR
