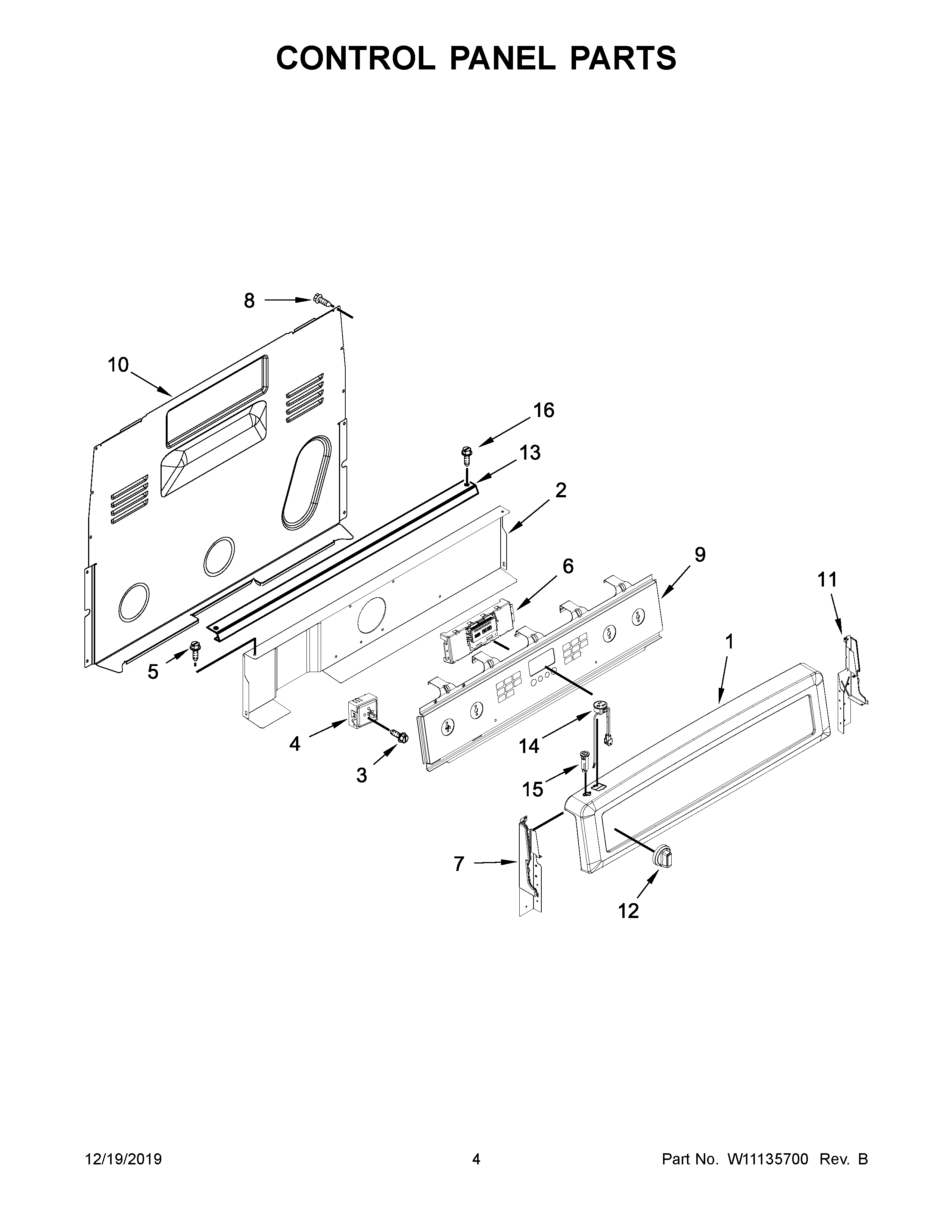

YMER8800FB1 03 – CONTROL PANEL PARTS

Products

PositionProduct
1ACONSOLE (WHITE)
1CONSOLE (BLACK)
2SHIELD, HEAT
3SCREW
4SWITCH, INFINITE (DUAL) (LEFT FRONT)
4BSWITCH, INFINITE (RIGHT FRONT)
4ASWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
5MAY W10362924
6CONTROL (MRC)
7ENDCAP (BLACK (LEFT))
7AENDCAP (WHITE (LEFT))
8SCREW
9AOVERLAY, ACTIVE (WHITE)
9OVERLAY, ACTIVE (BLACK)
10COVER, UPPER REAR
11AENDCAP (WHITE (RIGHT))
11ENDCAP (BLACK (RIGHT))
12AKNOB (WHITE)
12KNOB (BLACK)
13BRACKET, CONSOLE MOUNTING
14ARECEPTACLE, FUSED (WHITE)
14RECEPTACLE, FUSED (BLACK)
15BREAKER, CIRCUIT (BLACK)
15ABREAKER, CIRCUIT (WHITE)
16SCREW
