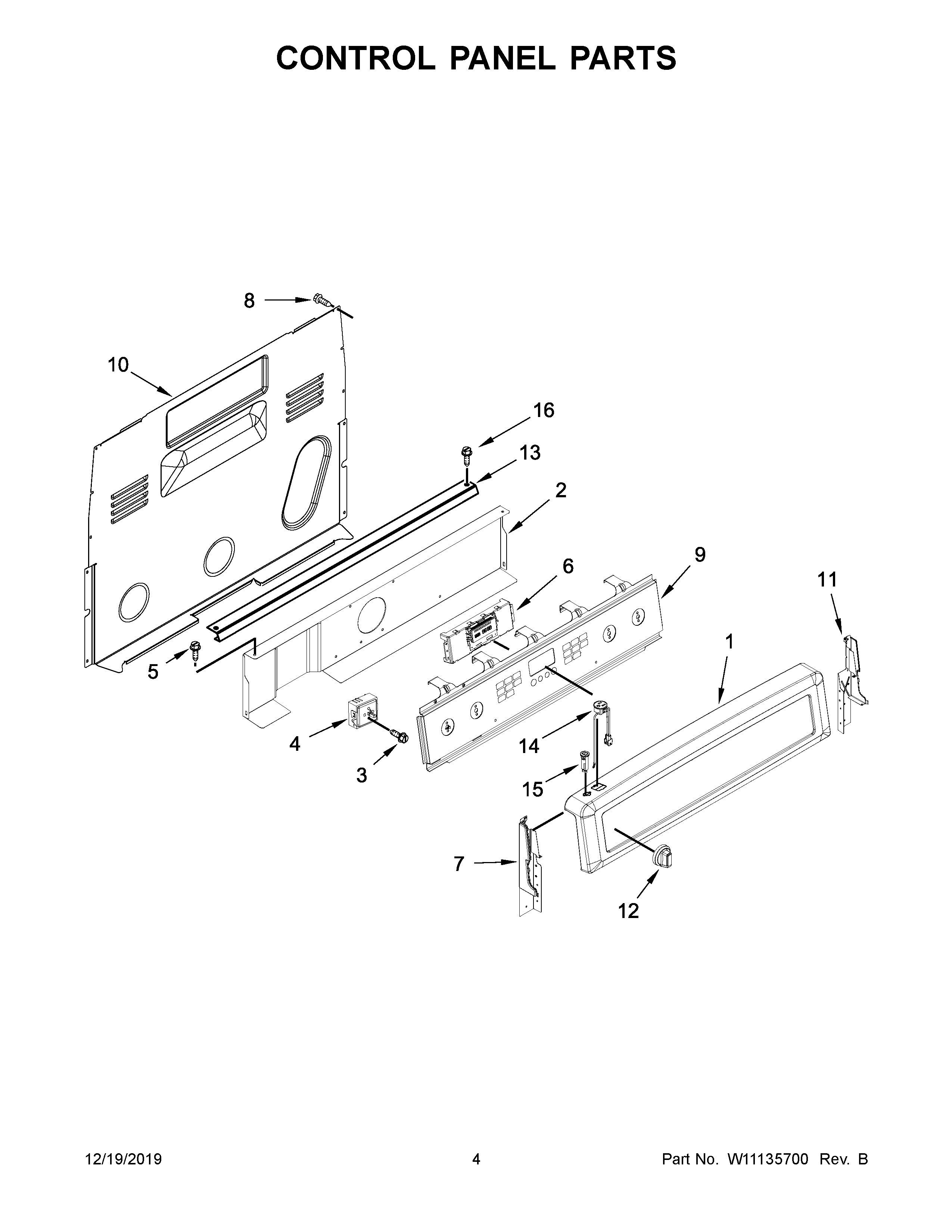

YMER8800FW1 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	CONSOLE (WHITE)
1	CONSOLE (BLACK)
2	SHIELD, HEAT
3	SCREW
4	SWITCH, INFINITE (DUAL) (LEFT FRONT)
4B	SWITCH, INFINITE (RIGHT FRONT)
4A	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
5	MAY W10362924
6	CONTROL (MRC)
7	ENDCAP (BLACK (LEFT))
7A	ENDCAP (WHITE (LEFT))
8	SCREW
9A	OVERLAY, ACTIVE (WHITE)
9	OVERLAY, ACTIVE (BLACK)
10	COVER, UPPER REAR
11A	ENDCAP (WHITE (RIGHT))
11	ENDCAP (BLACK (RIGHT))
12A	KNOB (WHITE)
12	KNOB (BLACK)
13	BRACKET, CONSOLE MOUNTING
14A	RECEPTACLE, FUSED (WHITE)
14	RECEPTACLE, FUSED (BLACK)
15	BREAKER, CIRCUIT (BLACK)
15A	BREAKER, CIRCUIT (WHITE)
16	SCREW
