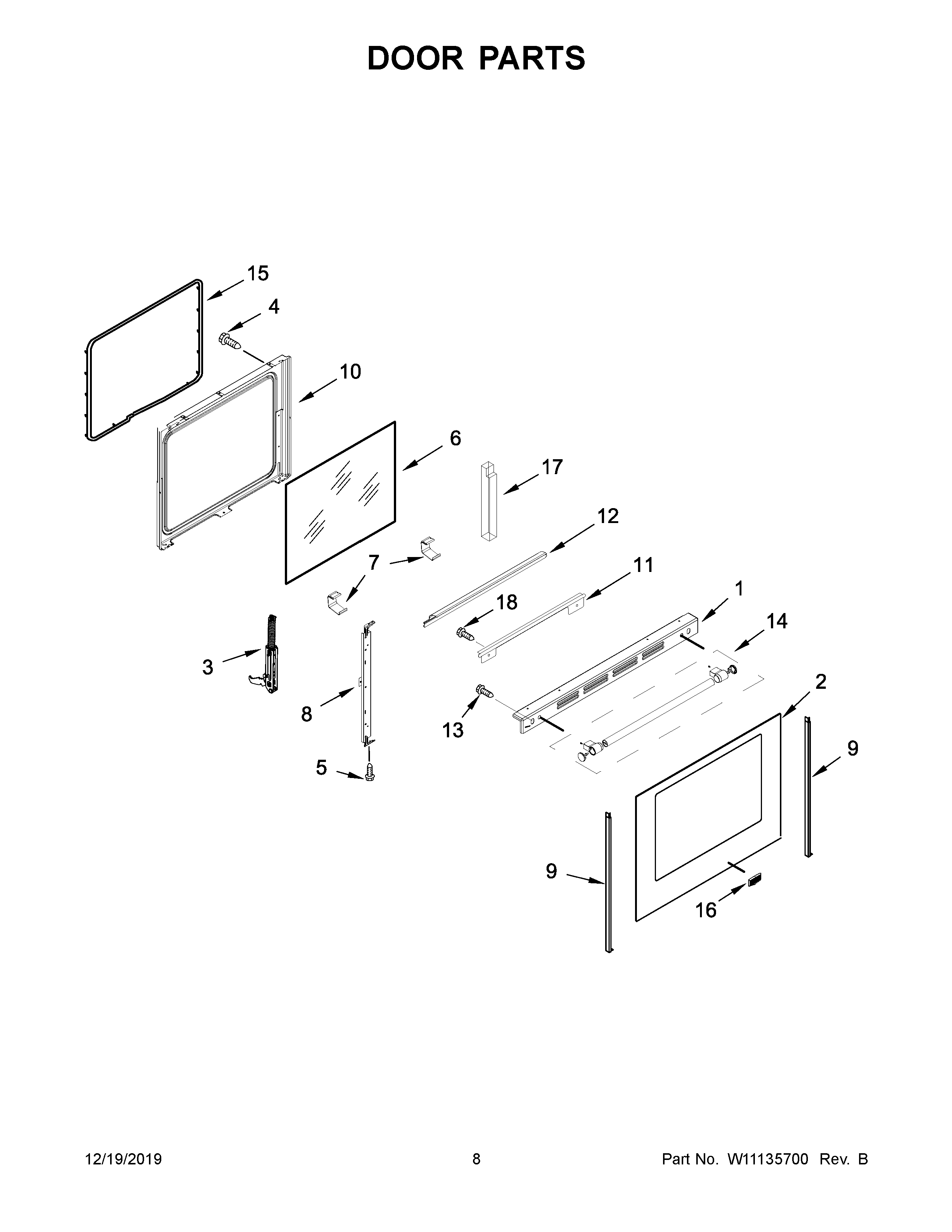

YMER8800FW1 05 – DOOR PARTSadmin2025-04-26T08:54:21+00:00YMER8800FW1 05 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | TRIM, VENT (BLACK) |
| 1A | TRIM, VENT (WHITE) |
| 2 | GLASS, OUTER DOOR (BLACK) |
| 2A | GLASS, OUTER DOOR (WHITE) |
| 3 | MAY W10440013 |
| 4 | SCREW |
| 5 | MAY W10362924 |
| 6 | GLASS, INNER |
| 7 | CLIP, PANEL |
| 8 | MAY W10294851 |
| 9A | TRIM, SIDE (WHITE) |
| 9 | TRIM, SIDE (BLACK) |
| 10 | LINING, DOOR |
| 11A | BRACKET, GLASS (WHITE) |
| 11 | BRACKET, GLASS (BLACK) |
| 12 | MAY W10294853 |
| 13 | SCREW |
| 14 | HANDLE, OVEN DOOR (BLACK) |
| 14A | HANDLE, OVEN DOOR (WHITE) |
| 15 | MAY W10162385 |
| 16 | BADGE |
| 17 | INSULATION, DOOR |
| 18 | SCREW |
