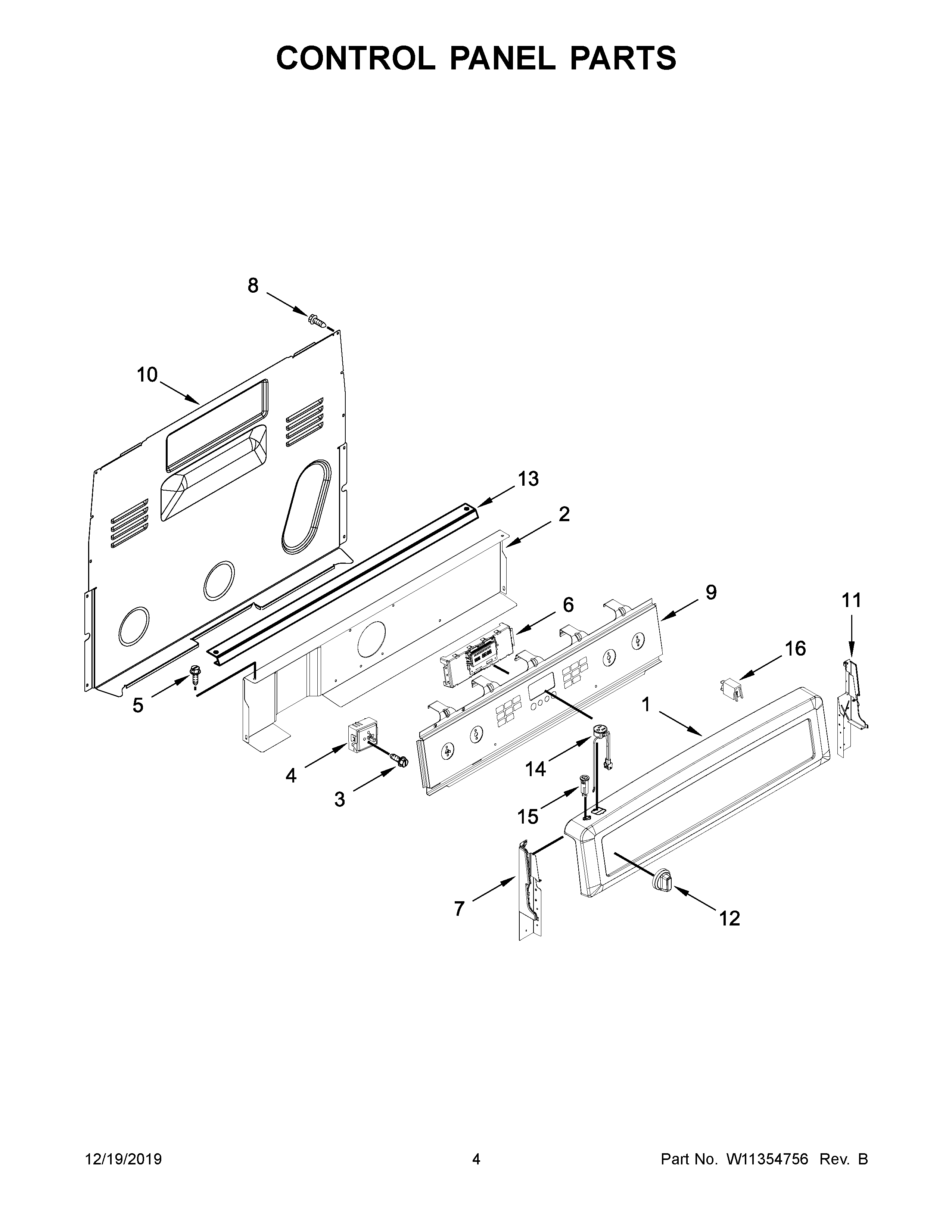

YMER8800FW2 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CONSOLE (WHITE)
2SHIELD, HEAT
3SCREW
4SWITCH, INFINITE (DUAL) (LEFT FRONT)
4BSWITCH, INFINITE (RIGHT FRONT)
4ASWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
5MAY W10362924
6CONTROL (MRC)
7ENDCAP (WHITE (LEFT))
8SCREW
9OVERLAY, ACTIVE (WHITE)
10COVER, UPPER REAR
11ENDCAP (WHITE (RIGHT))
12KNOB (WHITE)
13BRACKET, CONSOLE MOUNTING
14RECEPTACLE, FUSED (WHITE)
15BREAKER, CIRCUIT (WHITE)
16MAY 8523265
