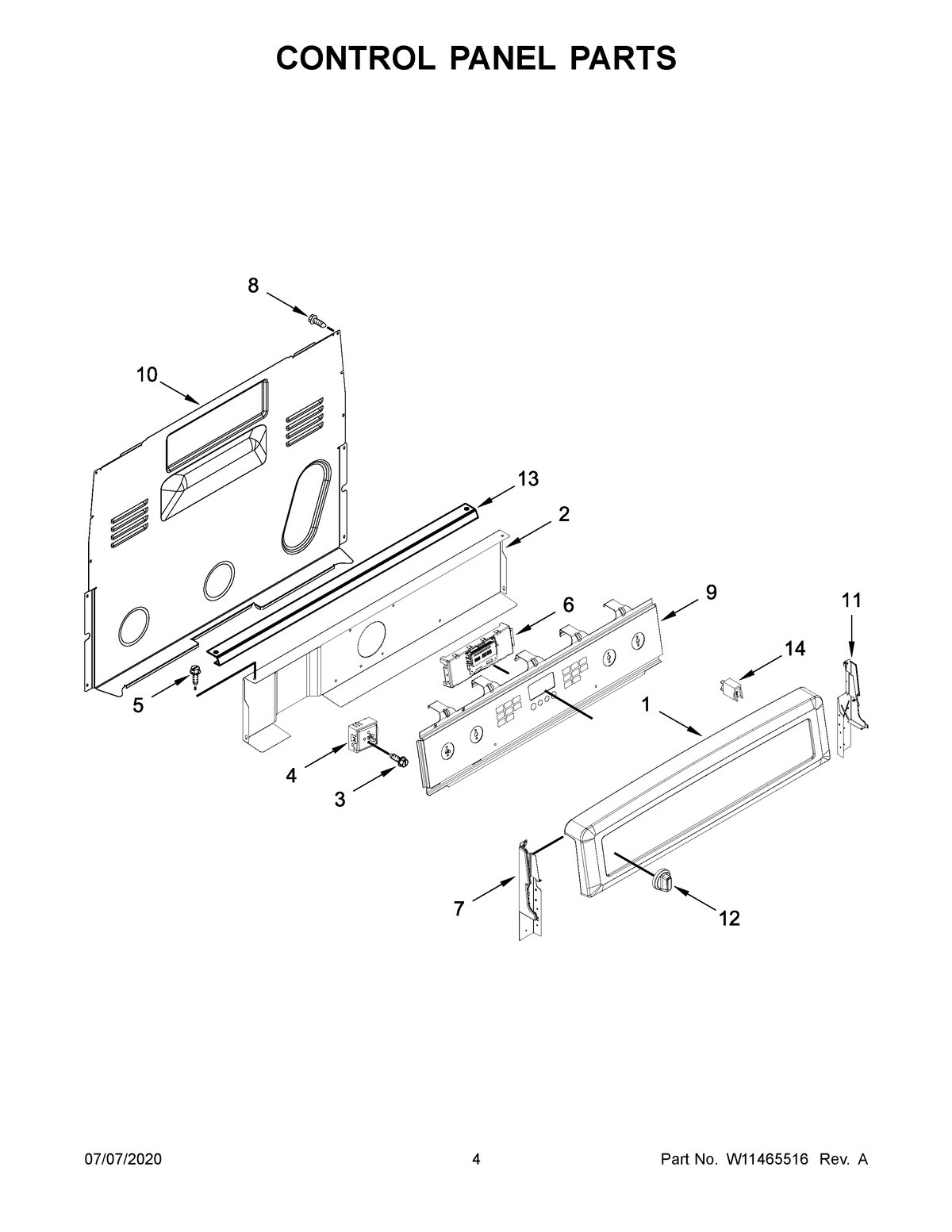

YMER8800FW3 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CONSOLE (WHITE)
2SHIELD, HEAT
3SCREW
4ASWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (DUAL) (LEFT FRONT)
4BSWITCH, INFINITE (RIGHT FRONT)
5MAY W10362924
6CONTROL (MRC)
7ENDCAP (WHITE (LEFT))
8SCREW
9OVERLAY, ACTIVE (WHITE)
10COVER, UPPER REAR
11ENDCAP (WHITE (RIGHT))
12KNOB (WHITE)
13BRACKET, CONSOLE MOUNTING
14MAY 8523265
