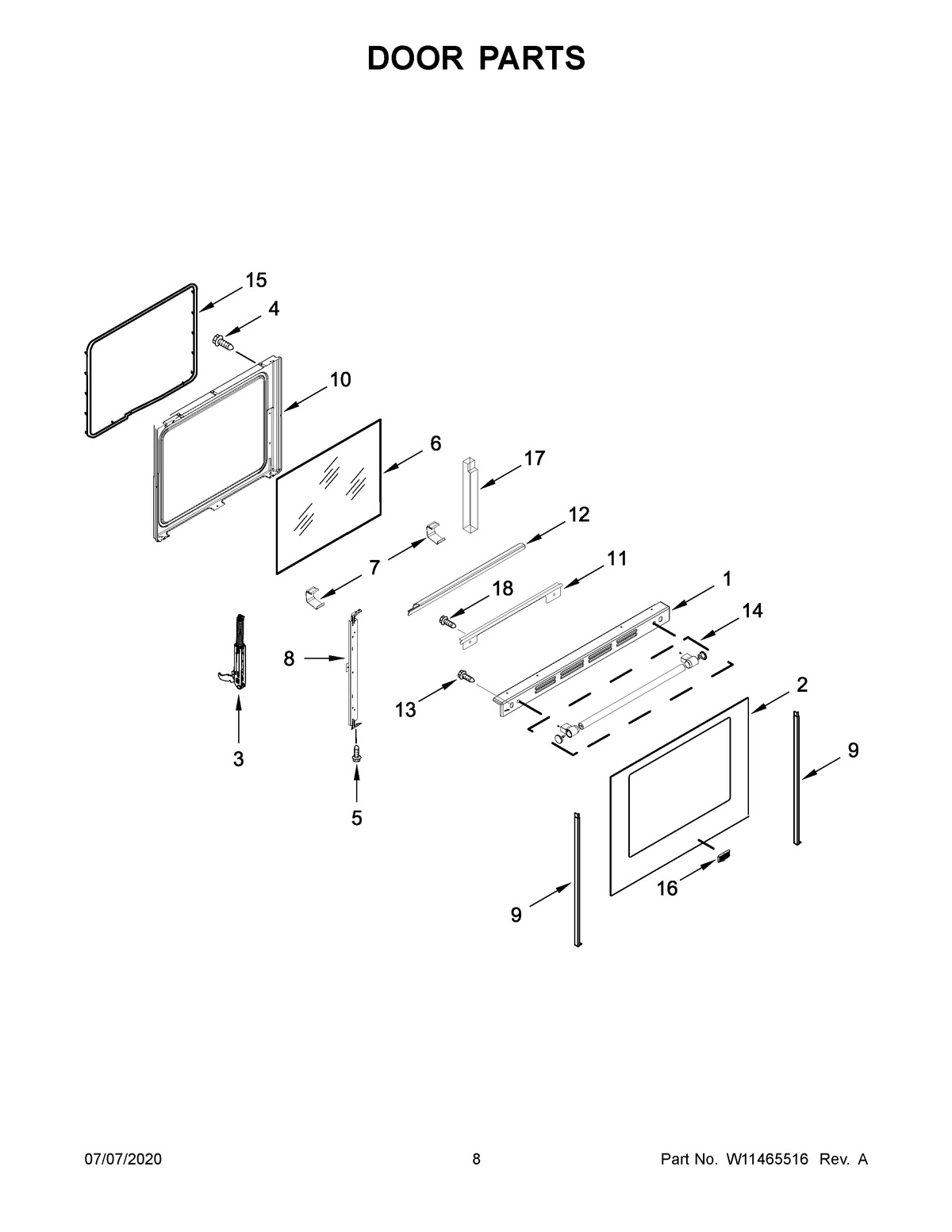

YMER8800FW3 05 – DOOR PARTS

Products

Position	Product
1	TRIM, VENT (WHITE)
2	GLASS, OUTER DOOR (WHITE)
3	MAY W10440013
4	SCREW
5	MAY W10362924
6	GLASS, INNER
7	CLIP, PANEL
8	MAY W10294851
9	TRIM, SIDE (WHITE)
10	LINING, DOOR
11	BRACKET, GLASS (WHITE)
12	MAY W10294853
13	SCREW
14	HANDLE, OVEN DOOR (WHITE)
15	MAY W10162385
16	BADGE
17	INSULATION, DOOR
18	SCREW
