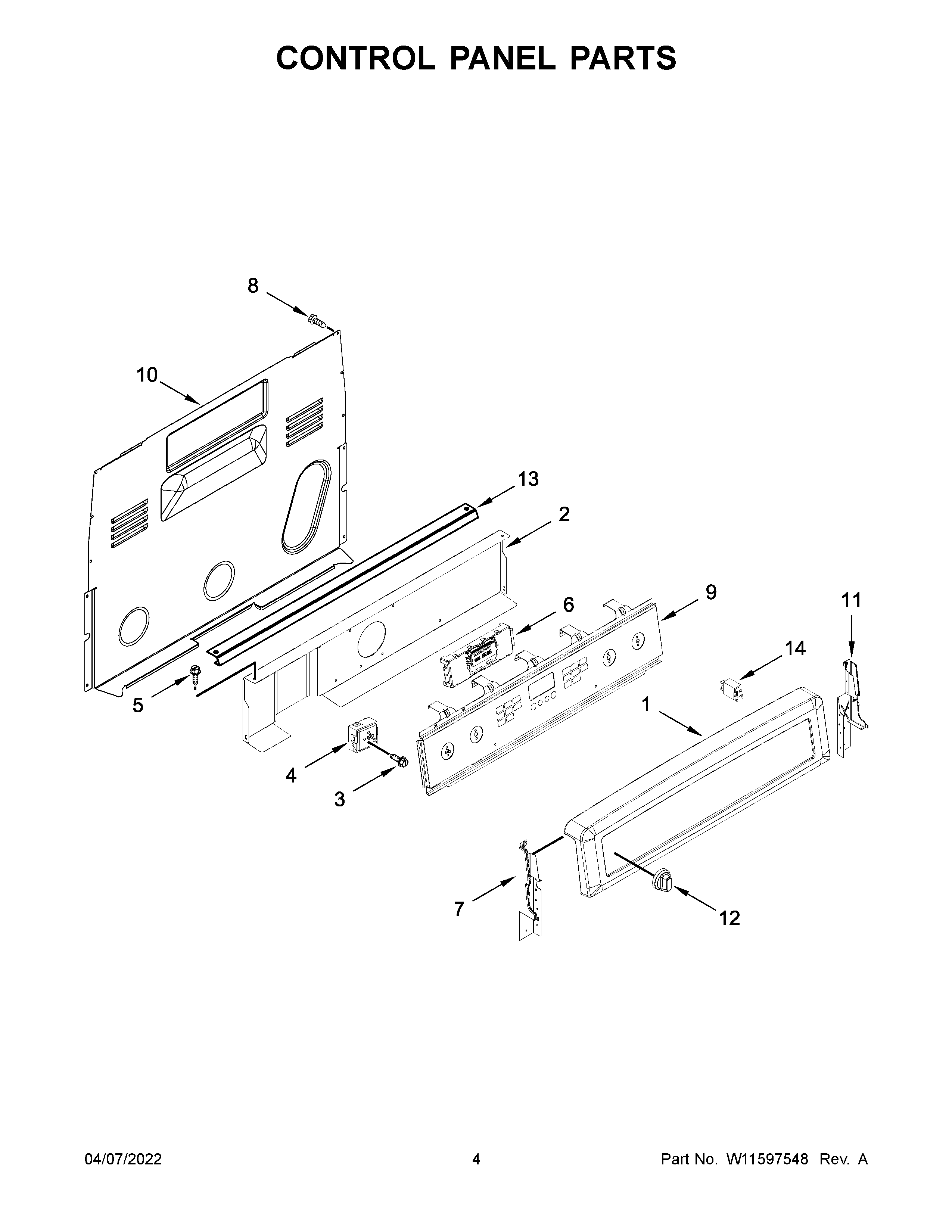

YMER8800FW6 03 – CONTROL PANEL PARTS

YMER8800FW6 03 – CONTROL PANEL PARTS

Written by

in

YMER8800FW6 03 – CONTROL PANEL PARTS

Products

PositionProduct
1W10645847 Whirlpool Control Panel
2W10134247 Whirlpool Heat Shield
3WP3400882 Whirlpool Screw
4AW10911303 Whirlpool Infinite Switch
4SWITCH-INF
4BW10917724 Whirlpool Infinite Switch
5SCREW
6W11594263-includeCORE Whirlpool W11594263 Refrigerator Electronic Control Board + Core
7W11219365 Whirlpool Panel Endcap
8W11245710 Whirlpool Refrigerator Screw
9OVERLAY, ACTIVE (WHITE)
10WP8272473 Whirlpool Rear Cover
11W11219370 Whirlpool Endcap Panel
12W11039092 Whirlpool Knob Assembly
13W10525121 Whirlpool Control Bracket
14WP8523265 Whirlpool Indicator Light
