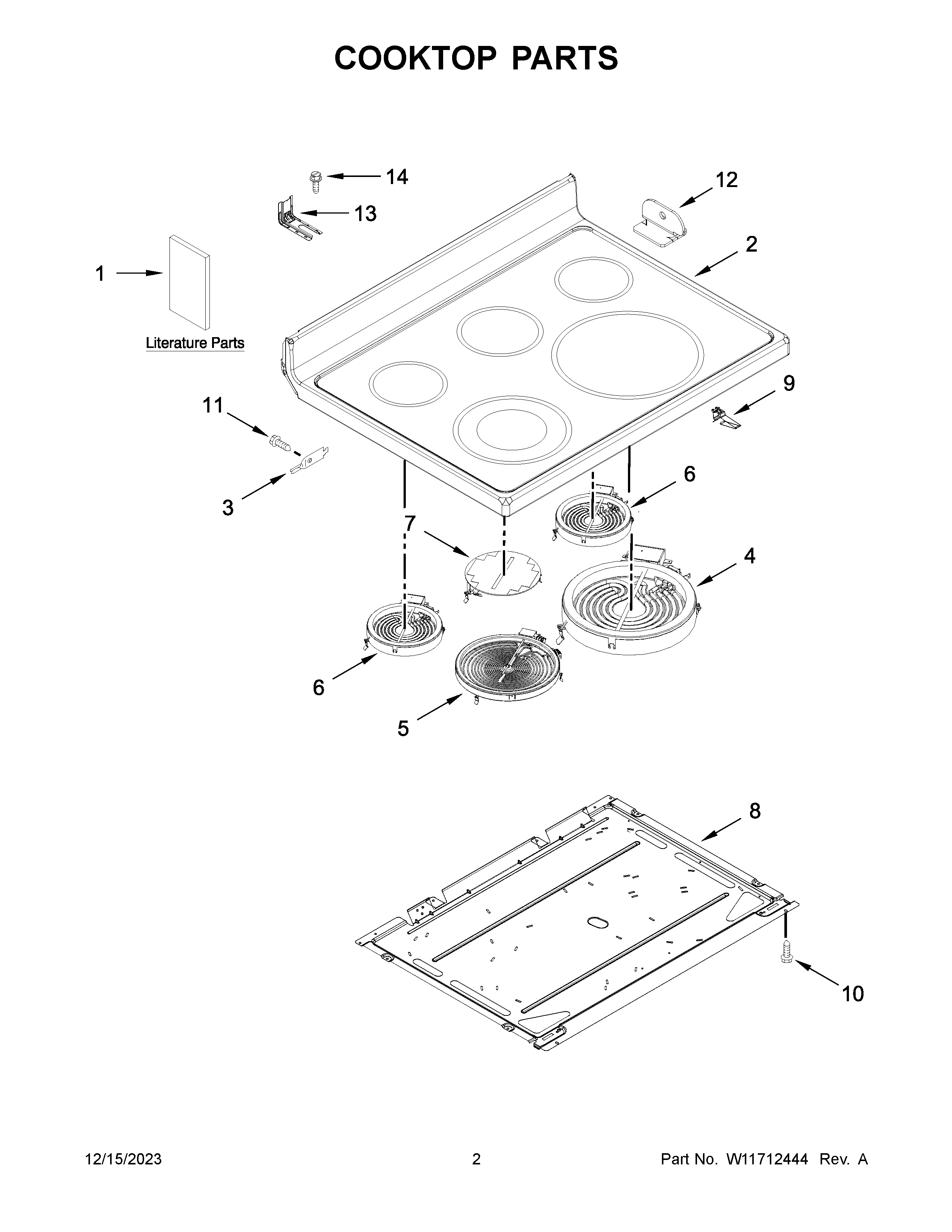

YMER8800FW7 02 – COOKTOP PARTS

YMER8800FW7 02 – COOKTOP PARTS

Written by

in

YMER8800FW7 02 – COOKTOP PARTS

Products

PositionProduct
NIW11134592 Whirlpool Wire Harness
NIMAIN HARNESS
NIFOLLOWING PARTS NOT ILLUSTRATED
NIHARNESS, COOKTOP (LEFT)
NIHARNESS, COOKTOP (RIGHT)
NIW11212183 Whirlpool Wire Harness
1BQUICK START GUIDE
1OWNERS MANUAL
1ATECH SHEET
2W10691697 Whirlpool Cooktop
3WP3195060 Whirlpool Cooktop Pin
4WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
5WPW10535150 Whirlpool Surface Element
6ELMNT-SURF
7W11041453 Whirlpool Surface Element
8PAN
9W11663556 Whirlpool Spring Assembly
10WP3196557 Whirlpool Screw
11SCREW
12AW10607642 Whirlpool Clip
12W10607641 Whirlpool Clip
13W11447673 Whirlpool Range Tip Anchor
14SCREW, ANTI-TIP KIT
