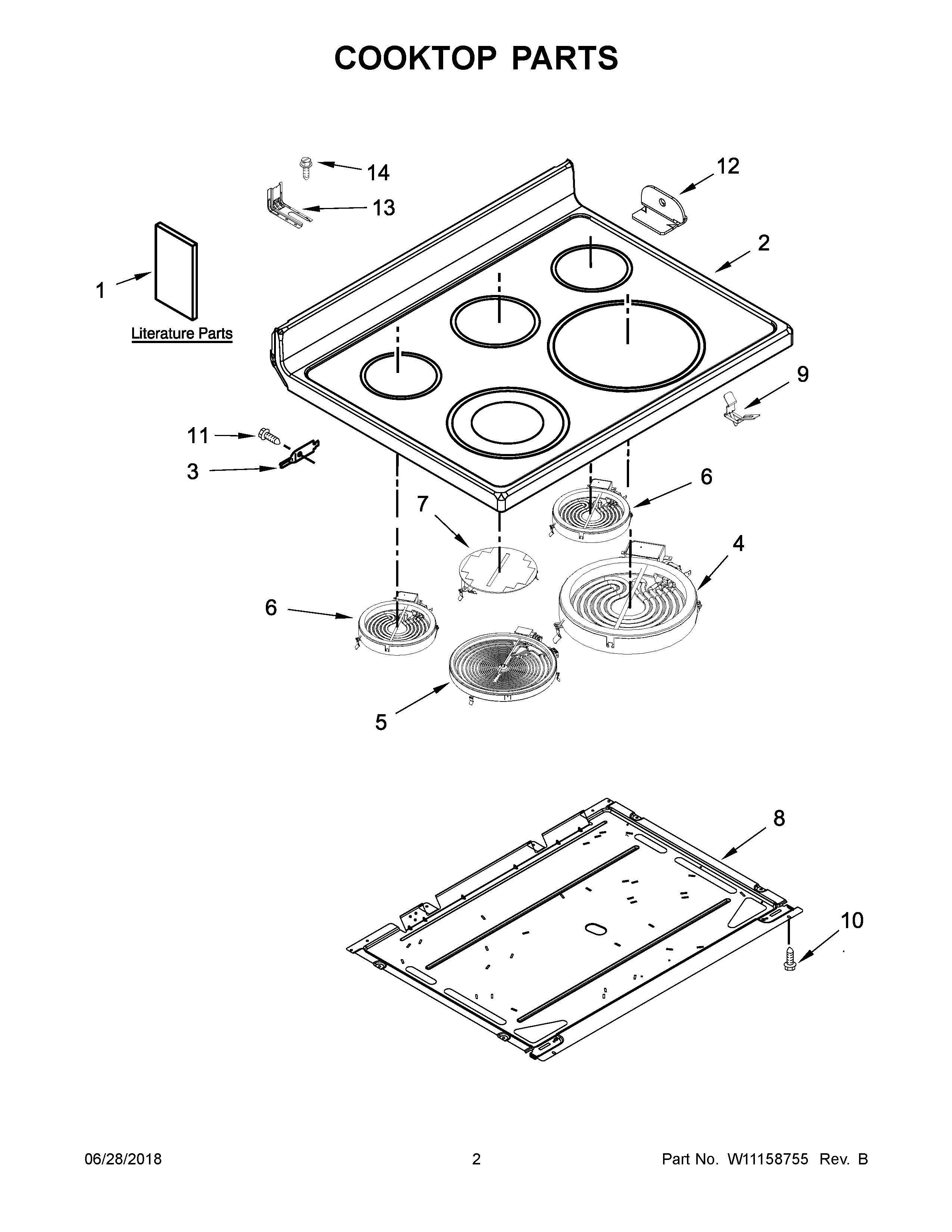

YMER8800FZ1 02 – COOKTOP PARTSadmin2025-04-26T08:54:29+00:00YMER8800FZ1 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | HARNESS, SENSOR |
| NI | MAY W10349696 |
| NI | HARNESS, WARM ZONE |
| NI | HARNESS, MAIN |
| NI | MAY W10349682 |
| 1A | TECH SHEET, (ENGLISH) |
| 1B | TECH SHEET, (FRENCH) |
| 1D | MAY W10400065 |
| 1C | MAY W10400064 |
| 1 | USE AND CARE GUIDE |
| 1E | MAY W10403812 |
| 2 | COOKTOP (BLACK) |
| 3 | HINGE, COOKTOP |
| 4 | ELEMENT (3200W) (RIGHT FRONT) |
| 5 | ELEMENT (3000W, 1000/2000W) (LEFT FRONT) |
| 6 | ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR) |
| 7 | ELEMENT, WARM ZONE (CENTER) |
| 8 | PAN, RADIANT ELEMENT |
| 9 | SPRING, ELEMENT |
| 10 | MAY W10241367 |
| 11 | SCREW |
| 12 | BRACKET, COOKTOP (LEFT) |
| 12A | BRACKET, COOKTOP (RIGHT) |
| 13 | BRACKET, ANTI-TIP |
| 14 | SCREW, ANTI-TIP KIT |
