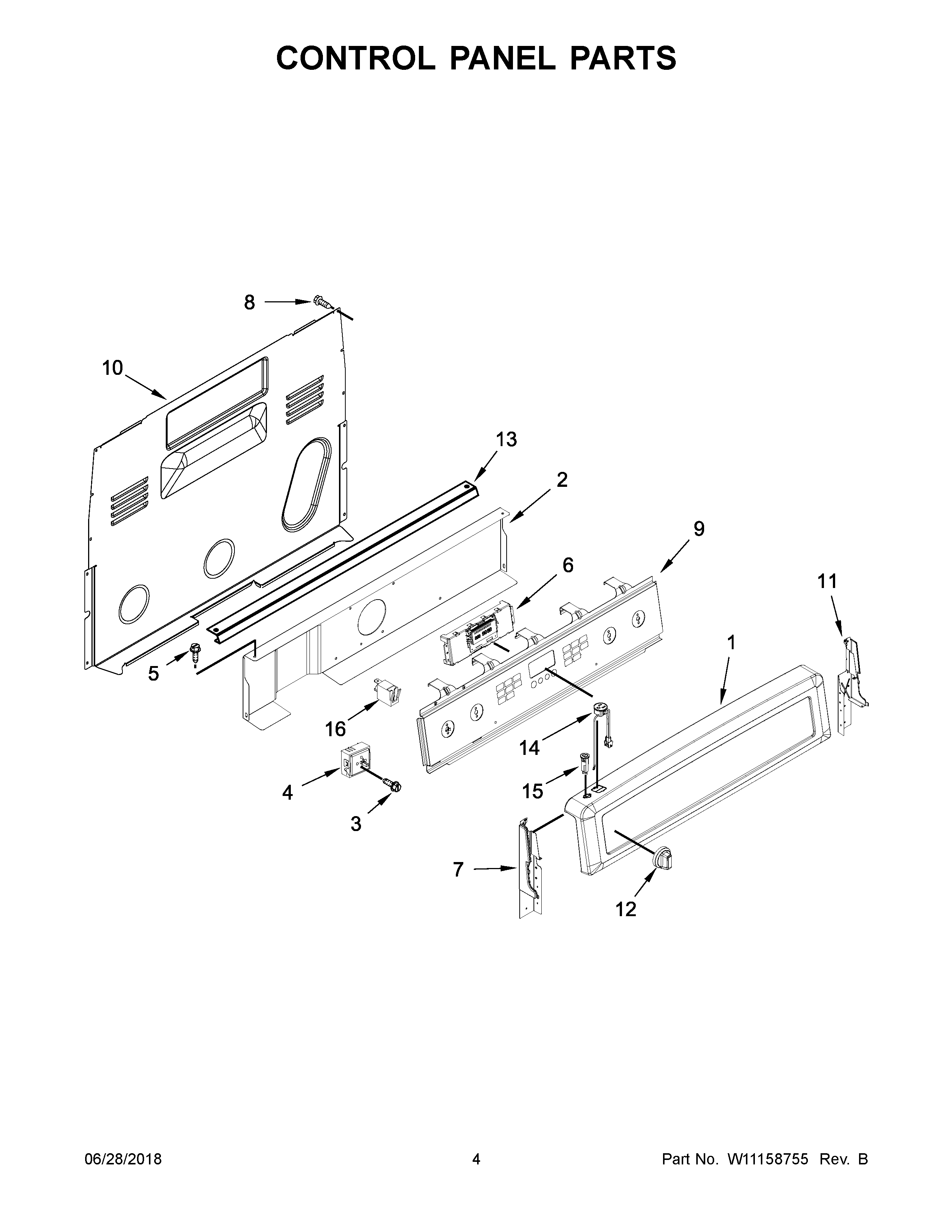

YMER8800FZ1 03 – CONTROL PANEL PARTS

Products

Position	Product
1	CONSOLE (STAINLESS)
2	SHIELD, HEAT
3	SCREW
4A	SWITCH, INFINITE (DUAL) (LEFT FRONT)
4	SWITCH, INFINITE (RIGHT FRONT)
4B	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
5	MAY W10362924
6	CONTROL (MRC)
7	ENDCAP (BLACK (LEFT))
8	SCREW
9	OVERLAY, ACTIVE (BLACK)
10	COVER, UPPER REAR
11	ENDCAP (BLACK (RIGHT))
12	KNOB (STAINLESS)
13	BRACKET, CONSOLE MOUNTING
14	RECEPTACLE, FUSED (BLACK)
15	BREAKER, CIRCUIT (BLACK)
16	HOT SURFACE INDICATOR
