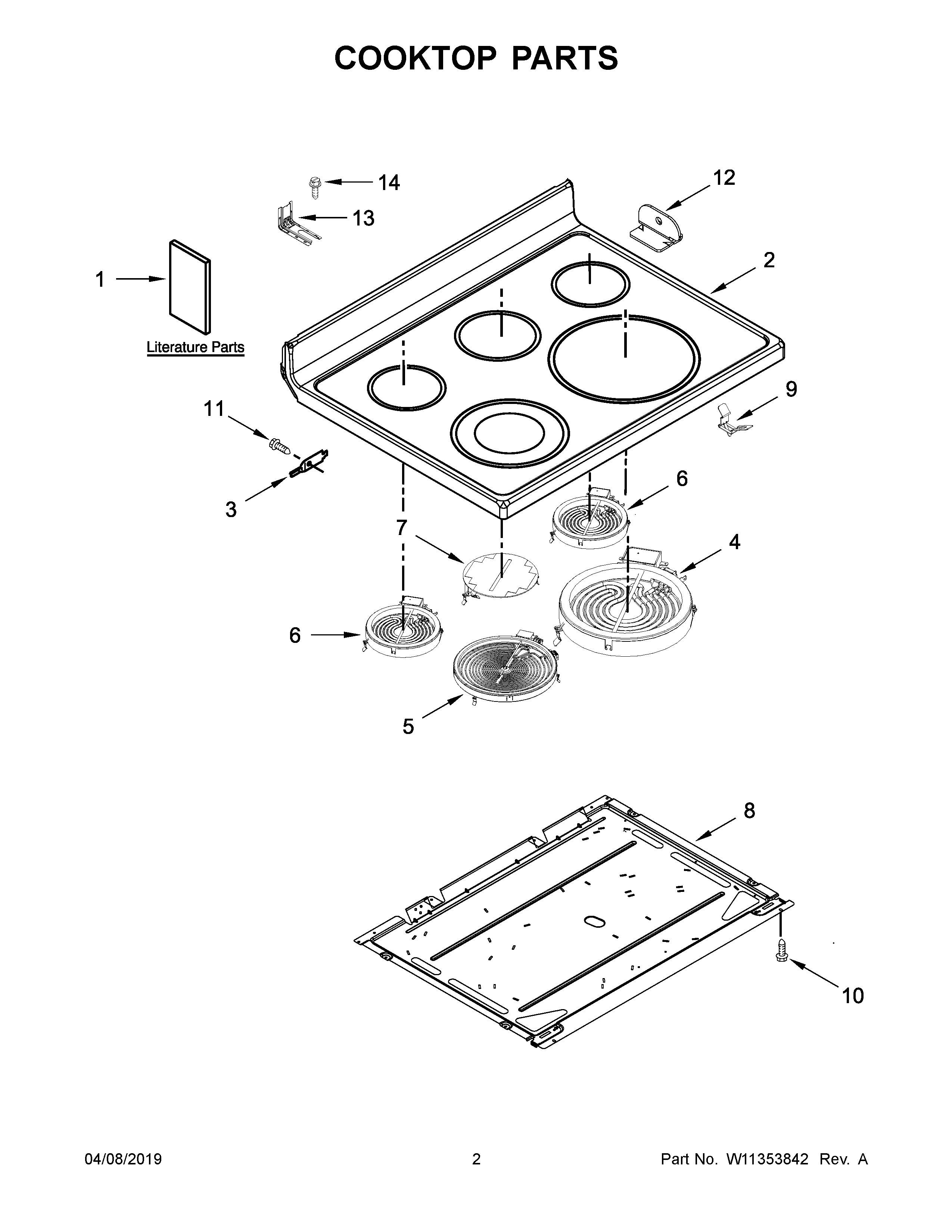

YMER8800FZ2 02 – COOKTOP PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	HARNESS, WARM ZONE
NI	HARNESS, SENSOR
NI	HARNESS, COOKTOP (LEFT)
NI	HARNESS, COOKTOP (RIGHT)
NI	MAY W11188460
1A	TECH SHEET, (ENGLISH)
1	USE AND CARE GUIDE
1D	MAY W10400065
1C	MAY W10400064
1B	TECH SHEET, (FRENCH)
1E	MAY W10403812
2	COOKTOP (BLACK)
3	HINGE, COOKTOP
4	ELEMENT (3200W) (RIGHT FRONT)
5	ELEMENT (3000W, 1000/2000W) (LEFT FRONT)
6	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7	ELEMENT, WARM ZONE (CENTER)
8	PAN, RADIANT ELEMENT
9	SPRING, ELEMENT
10	MAY W10241367
11	SCREW
12A	BRACKET, COOKTOP (RIGHT)
12	BRACKET, COOKTOP (LEFT)
13	BRACKET, ANTI-TIP
14	SCREW, ANTI-TIP KIT
