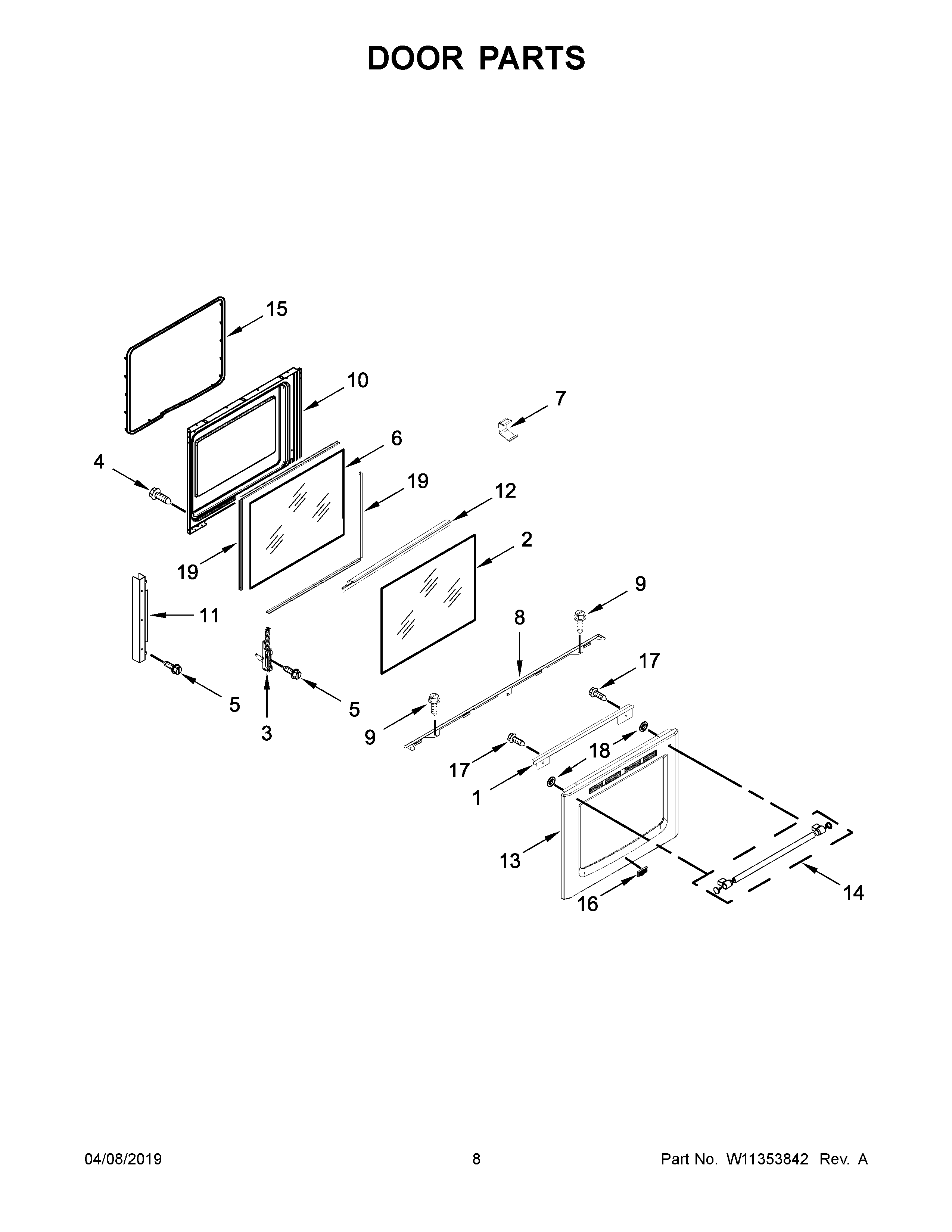

YMER8800FZ2 05 – DOOR PARTS

Products

PositionProduct
1BRACKET, GLASS UPPER HANDLE
2GLASS, OUTER (STAINLESS)
3HINGE, DOOR (ACTIVE)
4SCREW
5MAY W10362924
6MAY W11223202
7CLIP, PANEL
8RAIL, HORIZONTAL SUPPORT
9MAY W10241367
10LINER, DOOR
11RAIL, VERTICAL SUPPORT
12SCOOP, DOOR (BLACK)
13ASSEMBLY, DOOR SKIN (STAINLESS)
14HANDLE, OVEN DOOR (STAINLESS)
15MAY W10162385
16BADGE
17SCREW (STAINLESS MODELS)
18WASHER, DOOR
19SPACER, GLASS
