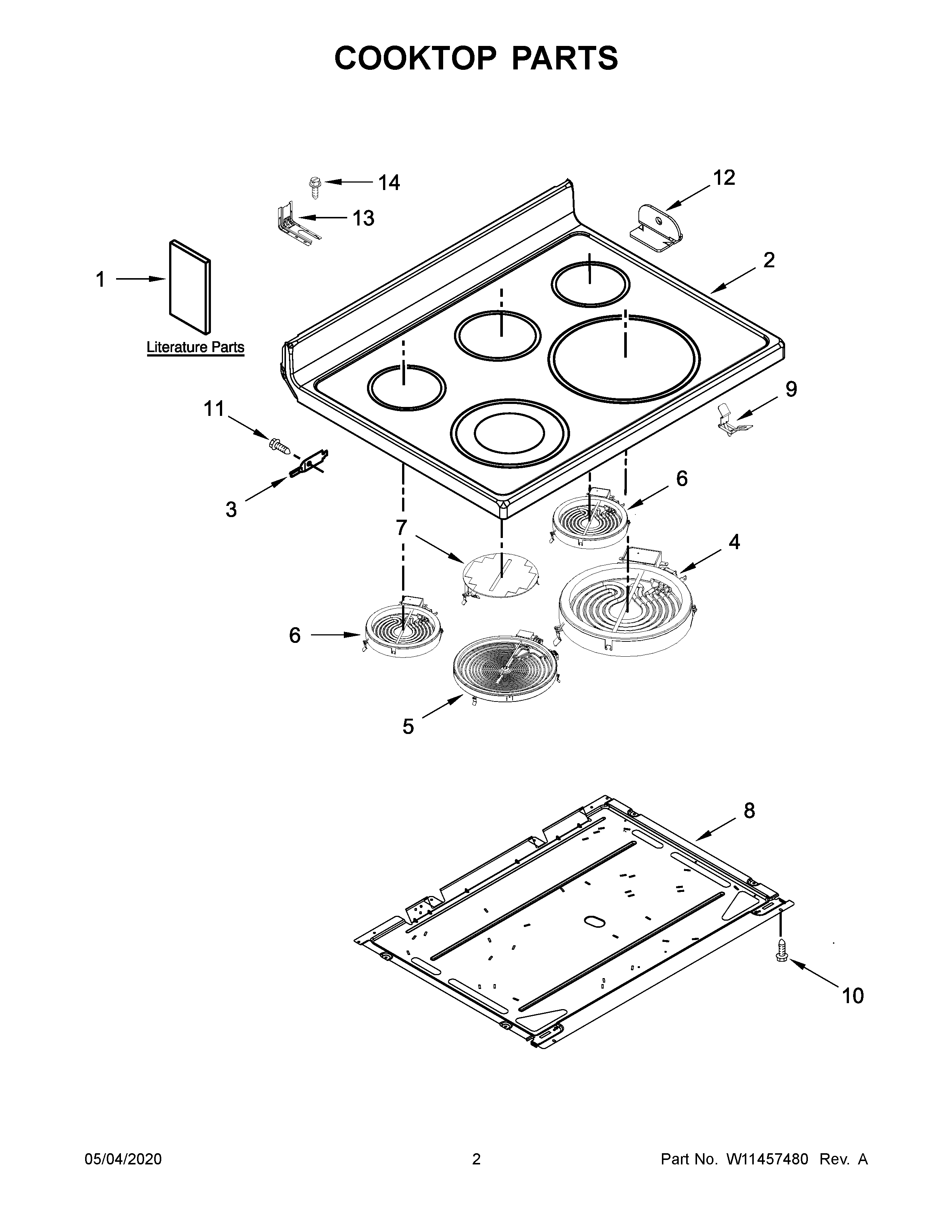

YMER8800FZ3 02 – COOKTOP PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	HARNESS, SENSOR
NI	HARNESS, COOKTOP (LEFT)
NI	HARNESS, COOKTOP (RIGHT)
NI	MAY W11328421
NI	HARNESS, WARM ZONE
1A	MAY W11321346
1B	MAY W11321586
1D	MAY W10400065
1C	MAY W10400064
1	MAY W10403812
2	COOKTOP (BLACK)
3	HINGE, COOKTOP
4	ELEMENT (3200W) (RIGHT FRONT)
5	ELEMENT (3000W, 1000/2000W) (LEFT FRONT)
6	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7	ELEMENT, WARM ZONE (CENTER)
8	PAN, RADIANT ELEMENT
9	SPRING, ELEMENT
10	MAY W10241367
11	SCREW
12A	BRACKET, COOKTOP (RIGHT)
12	BRACKET, COOKTOP (LEFT)
13	ANTI-TIP BRACKET
14	SCREW, ANTI-TIP KIT
