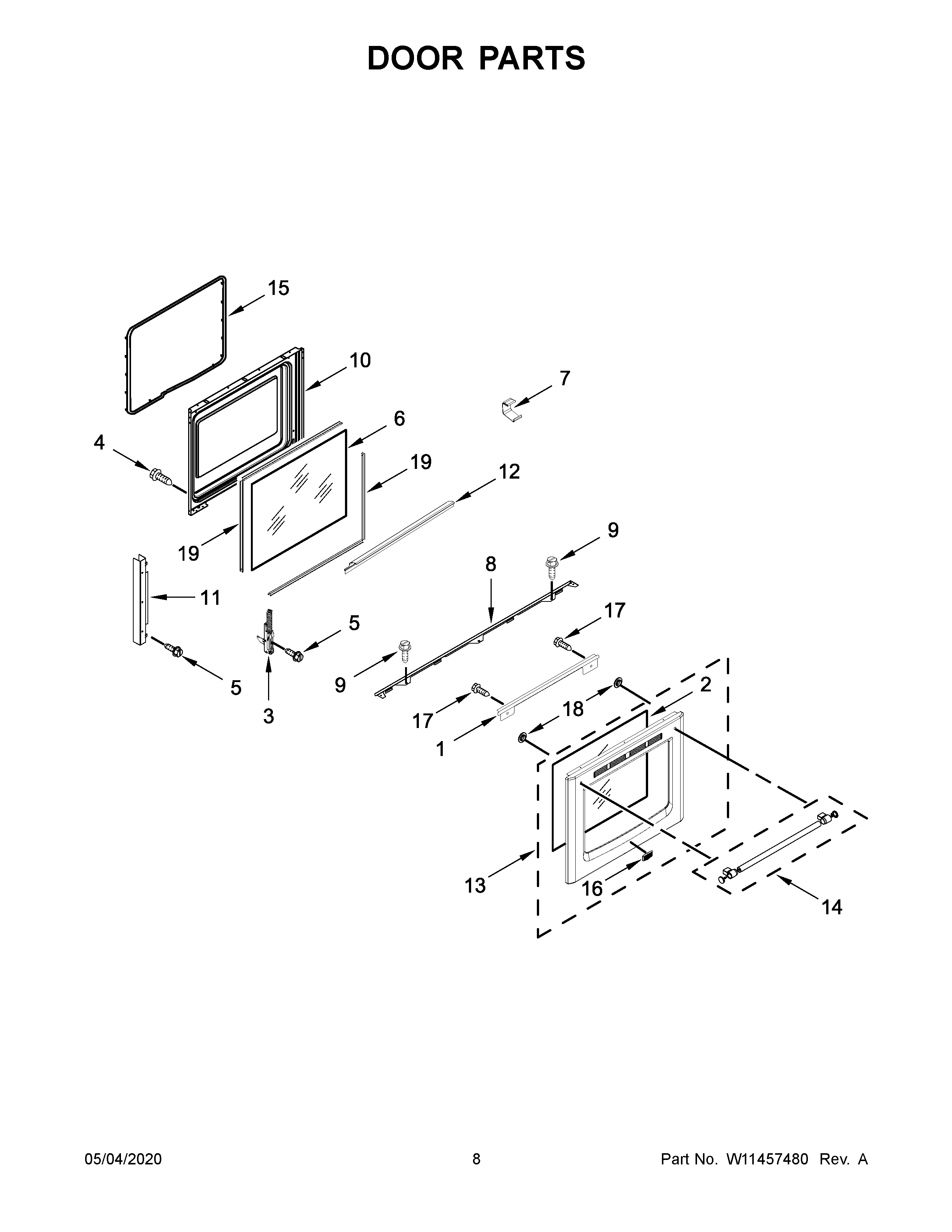

YMER8800FZ3 05 – DOOR PARTSadmin2025-04-26T08:54:35+00:00YMER8800FZ3 05 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | BRACKET, GLASS UPPER HANDLE |
| 2 | GLASS, OUTER (STAINLESS) |
| 3 | HINGE, DOOR (ACTIVE) |
| 4 | SCREW |
| 5 | MAY W10362924 |
| 6 | MAY W11223202 |
| 7 | CLIP, PANEL |
| 8 | RAIL, HORIZONTAL SUPPORT |
| 9 | MAY W10241367 |
| 10 | LINER, DOOR |
| 11 | RAIL, VERTICAL SUPPORT |
| 12 | SCOOP, DOOR (BLACK) |
| 13 | ASSEMBLY, DOOR SKIN (STAINLESS) |
| 14 | HANDLE, OVEN DOOR (STAINLESS) |
| 15 | MAY W10162385 |
| 16 | BADGE |
| 17 | SCREW (STAINLESS MODELS) |
| 18 | WASHER, DOOR |
| 19 | GLASS SPACER |
