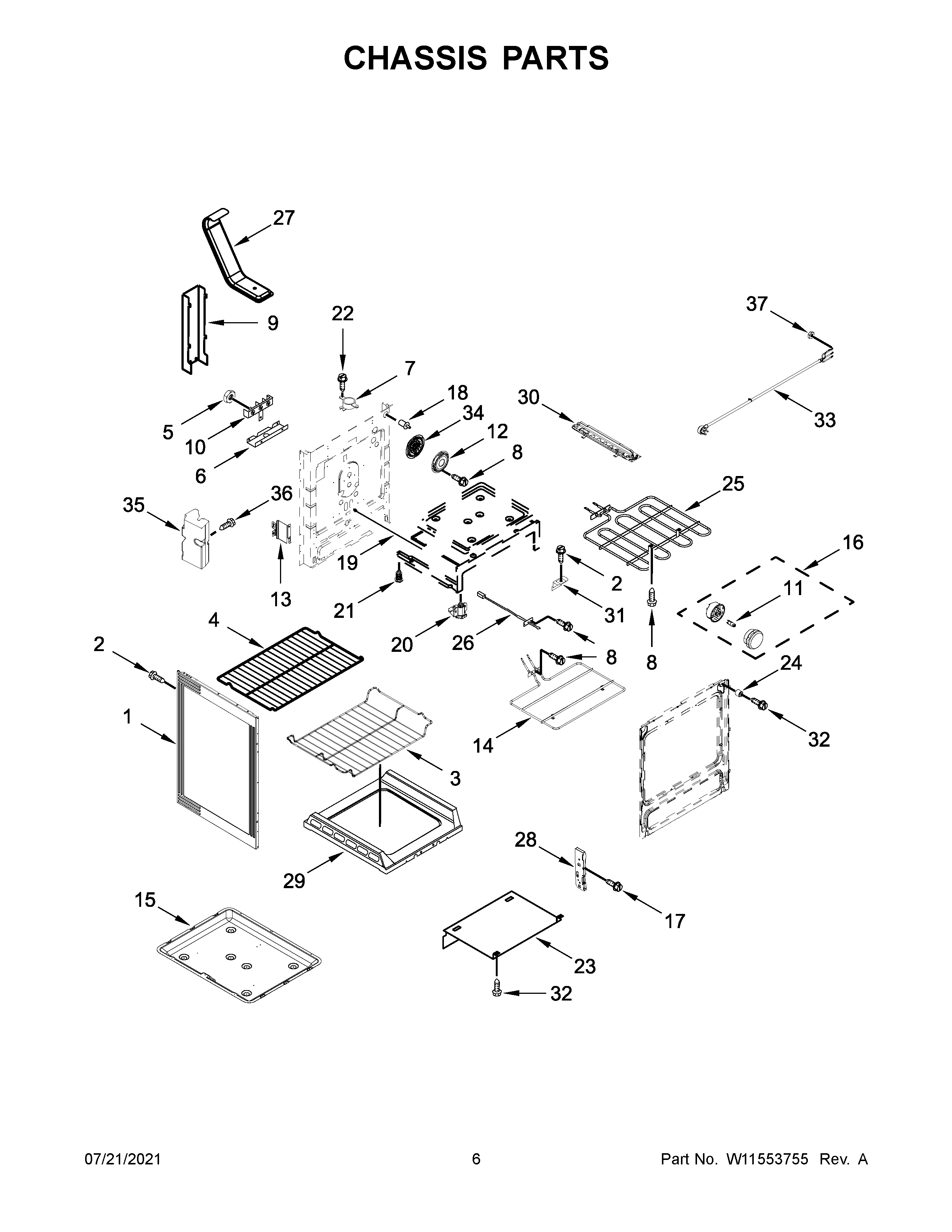

YMER8800FZ4 04 – CHASSIS PARTS

Products

PositionProduct
NIINSULATION, STRAP
NIWPW10194393 Whirlpool Insulation
NICABINET (NOT A SERVICEABLE PART)
NIWPW10225524 Whirlpool Insulation
NIWPW10225523 Whirlpool Insulation
1W11730303 Whirlpool Side Panel
2SCREW
3WPW10289145 Whirlpool Oven Rack
4WPW10531060 Whirlpool Oven Rack
5WP3400029 Whirlpool Dishwasher Nut
6W11728255 Whirlpool Service Bracket
7WP3196548 Whirlpool Thermal Fuse
9WPW10326122 Whirlpool Black Cover
10WP8203546 Whirlpool Terminal Block
11BULB-LIGHT
12WPW10346154 Whirlpool Cover Assembly
13W10273002 Whirlpool Support Bracket
14W10779716 Whirlpool Oven Bake Element
15W11379357 Whirlpool Overflow Pan
16W11594170 Whirlpool Light Socket
17W10777162 Whirlpool Screw
18WP9757262 Whirlpool Light Switch
19W11370463 Whirlpool Door Rod Assembly
20WPW10341186 Whirlpool Refrigerator Front Levelling Leg
21WPW10058460 Whirlpool Appliance Levelling Leg
223196172 Whirlpool Oven Screw
23W10726740 Whirlpool Heat Shield
24W10877054 Whirlpool Spacer Assembly
25W11321472 Whirlpool Broil Element
26SENSOR-RANGE
27WPW10134285 Whirlpool Vent Tube
28W10647259 Whirlpool Hinge Receiver
29W10777210 Whirlpool Oven Bottom
30AWPW10306546 Whirlpool Base Rail
31W10035900 Whirlpool Support Bracket
32W10516115 Whirlpool Screw
33W11226497 Whirlpool Power Cord
34W10903746 Whirlpool Convection Fan
35W11135752 Whirlpool Anchor Tip
36W11135756 Whirlpool Screw Torx
37Nut
