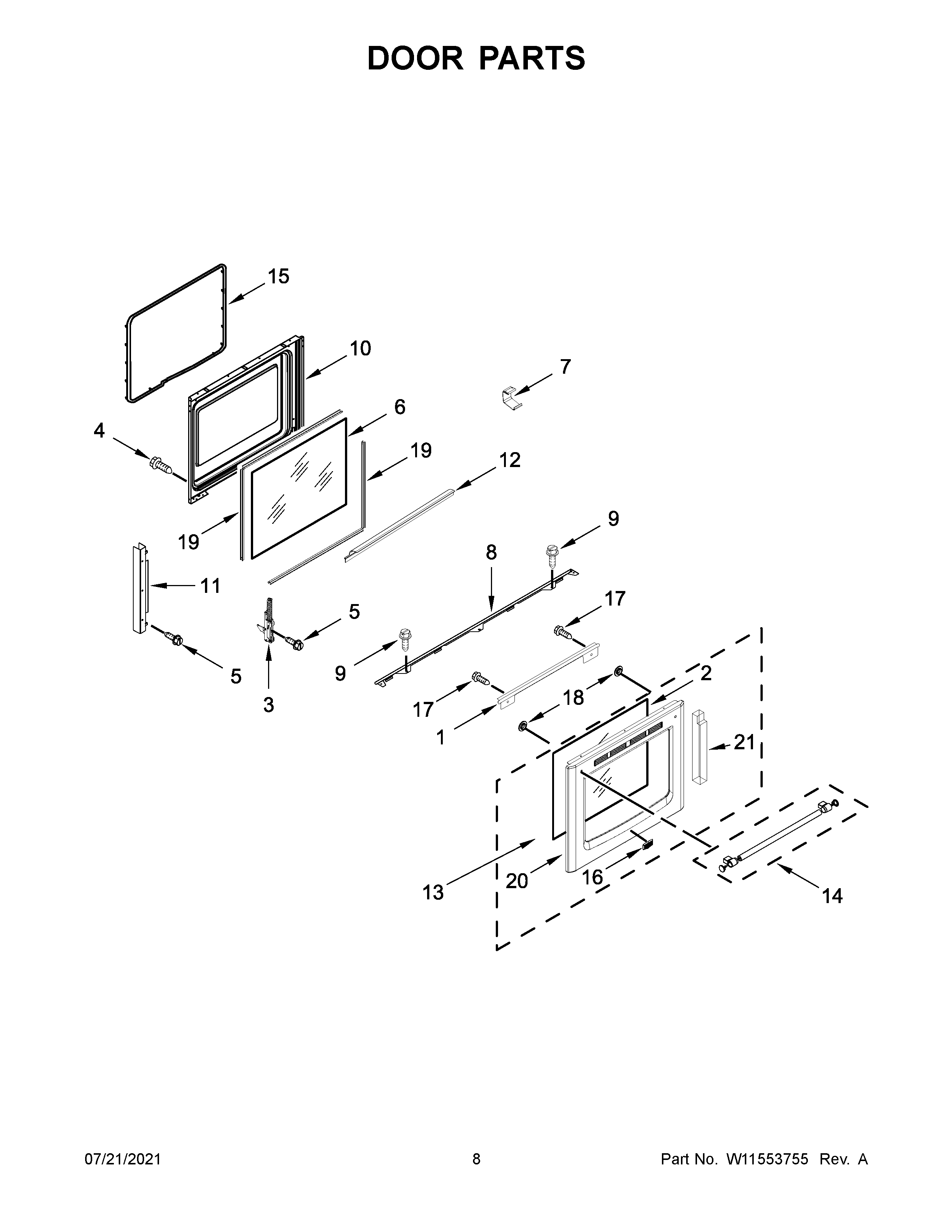

YMER8800FZ4 05 – DOOR PARTS

Products

Position	Product
1	W10541911 Whirlpool Mounting Bracket
2	GLASS-DOOR
3	W11162113 Whirlpool Door Hinge
4	WPW10031790 Whirlpool Screw
5	SCREW
6	W11339500 Whirlpool Door Glass
7	W10137382 Whirlpool Clip
8	W10813140 Whirlpool Glass Bracket
9	SCREW
10	W10902192 Whirlpool Door Liner
11	W11744483 Whirlpool Support
12	W11251351 Whirlpool Vent Trim
13	W11047015 Whirlpool Glass Door
14	W10912640 Whirlpool Door Handle
15	W11562931 Whirlpool Door Gasket
16	WPW10612925 Whirlpool Microwave Nameplate
17	WP8533988 Whirlpool Screw Fastener
18	W11676355 Whirlpool Washer
19	W11673273 Whirlpool Spacer Glass
20	W11028197 Whirlpool Door Panel
21	W11025151 Whirlpool Insulation
