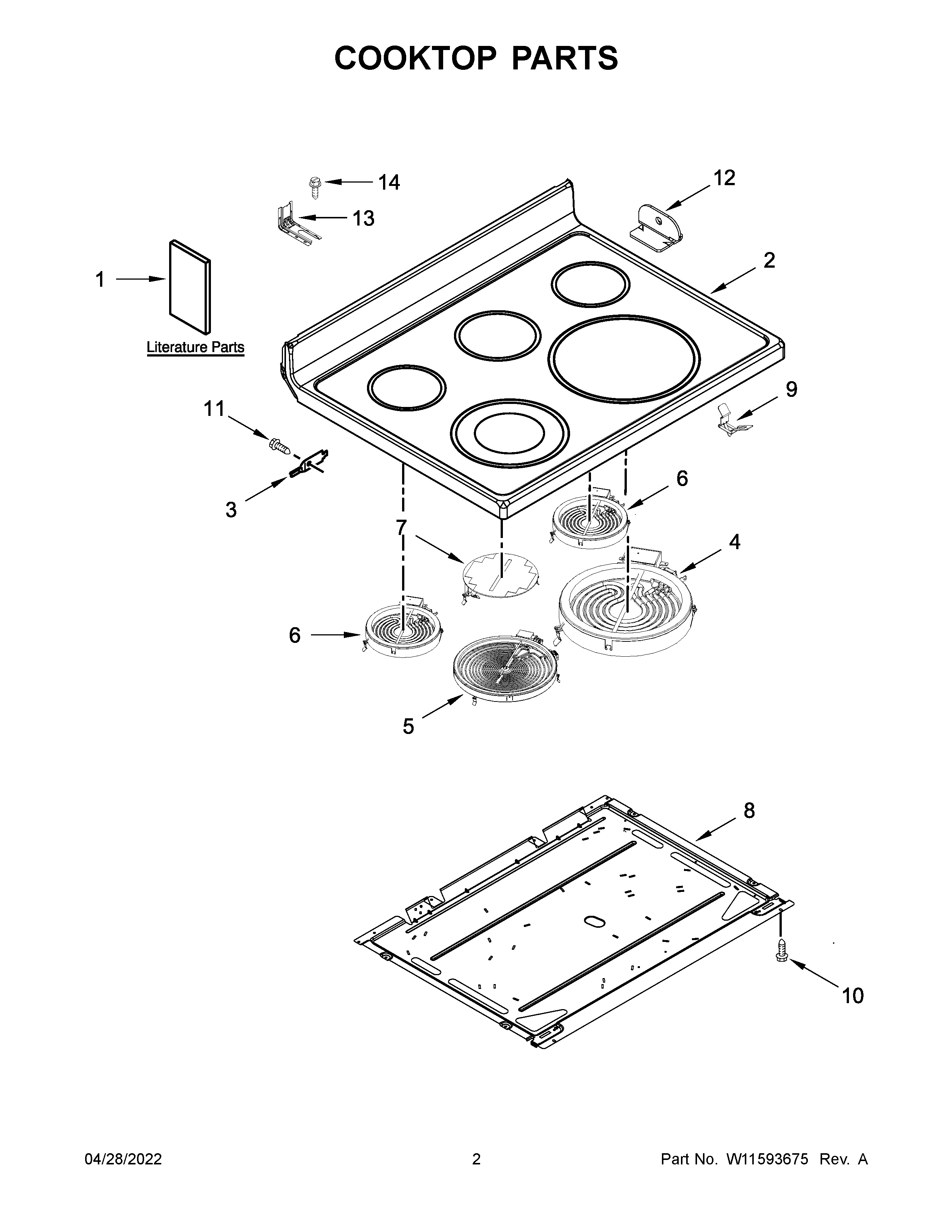

YMER8800FZ6 02 – COOKTOP PARTS

Products

Position	Product
NI	W11212183 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
NI	MAIN HARNESS
NI	HARNESS, COOKTOP (LEFT)
NI	HARNESS, COOKTOP (RIGHT)
NI	W11134592 Whirlpool Wire Harness
1B	QUICK START GUIDE
1A	OWNERS MANUAL
1	TECH SHEET
2	W10691698 Whirlpool Cooktop
3	WP3195060 Whirlpool Cooktop Pin
4	WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
5	WPW10535150 Whirlpool Surface Element
6	ELMNT-SURF
7	W11041453 Whirlpool Surface Element
8	PAN
9	WPW10225448 Whirlpool Spring Assembly
10	SCREW
11	SCREW
12	W10607641 Whirlpool Clip
12A	W10607642 Whirlpool Clip
13	W11447673 Whirlpool Range Tip Anchor
14	SCREW, ANTI-TIP KIT
