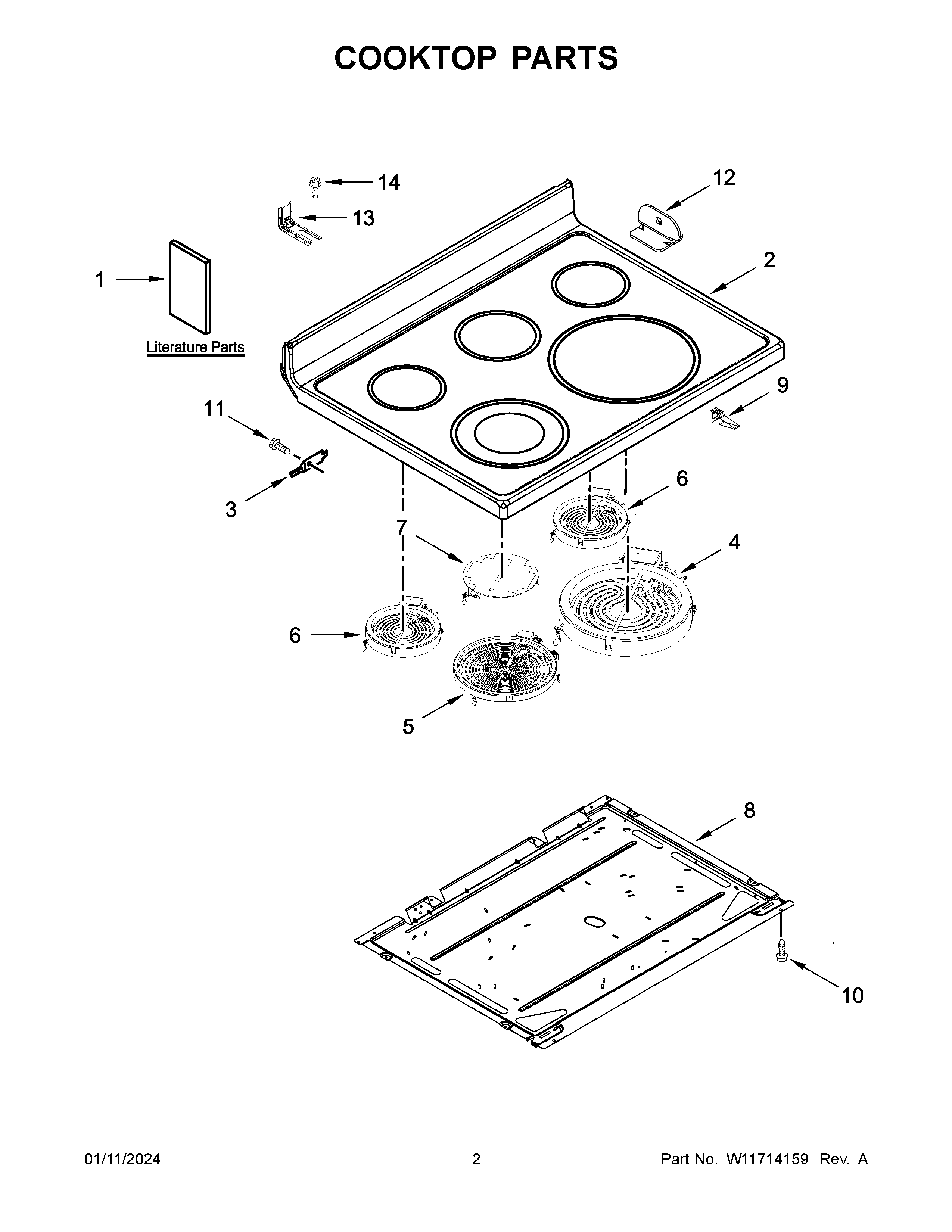

YMER8800FZ7 02 – COOKTOP PARTS

Products

Position	Product
NI	W11212183 Whirlpool Wire Harness
NI	MAIN HARNESS
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	HARNESS, COOKTOP (LEFT)
NI	HARNESS, COOKTOP (RIGHT)
NI	W11134592 Whirlpool Wire Harness
1B	QUICK START GUIDE
1A	OWNERS MANUAL
1	TECH SHEET
2	W10691698 Whirlpool Cooktop
3	WP3195060 Whirlpool Cooktop Pin
4	WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
5	WPW10535150 Whirlpool Surface Element
6	ELMNT-SURF
7	W11041453 Whirlpool Surface Element
8	PAN
9	W11663556 Whirlpool Spring Assembly
10	SCREW
11	SCREW
12	W10607641 Whirlpool Clip
12A	W10607642 Whirlpool Clip
13	W11447673 Whirlpool Range Tip Anchor
14	SCREW, ANTI-TIP KIT
