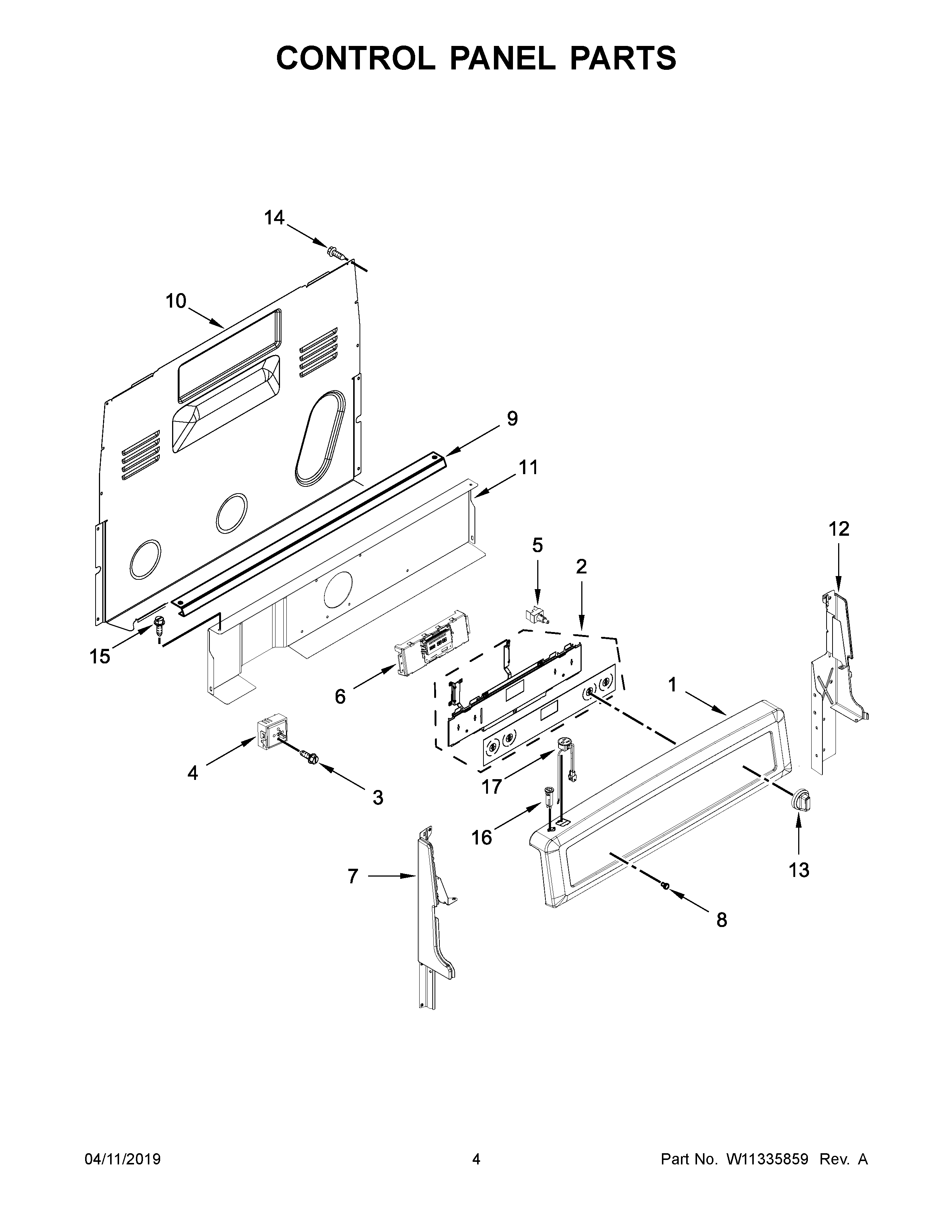

YMER8800HK0 03 – CONTROL PANEL PARTS

Products

PositionProduct
1MAY W11257152
2OVERLAY, ACTIVE (BLACK)
3SCREW
4ASWITCH, INFINITE (RIGHT FRONT)
4BSWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINITE (DUAL) (LEFT FRONT)
5MAY 8523265
6CONTROL (MRC)
7ENDCAP (BLACK (LEFT))
8MAY 3196068
9BRACKET, CONSOLE MOUNTING
10COVER, UPPER REAR
11SHIELD, HEAT
12ENDCAP (BLACK (RIGHT))
13KNOB (STAINLESS)
14SCREW
15MAY W10362924
16BREAKER, CIRCUIT (BLACK)
17RECEPTACLE, FUSED (BLACK)
