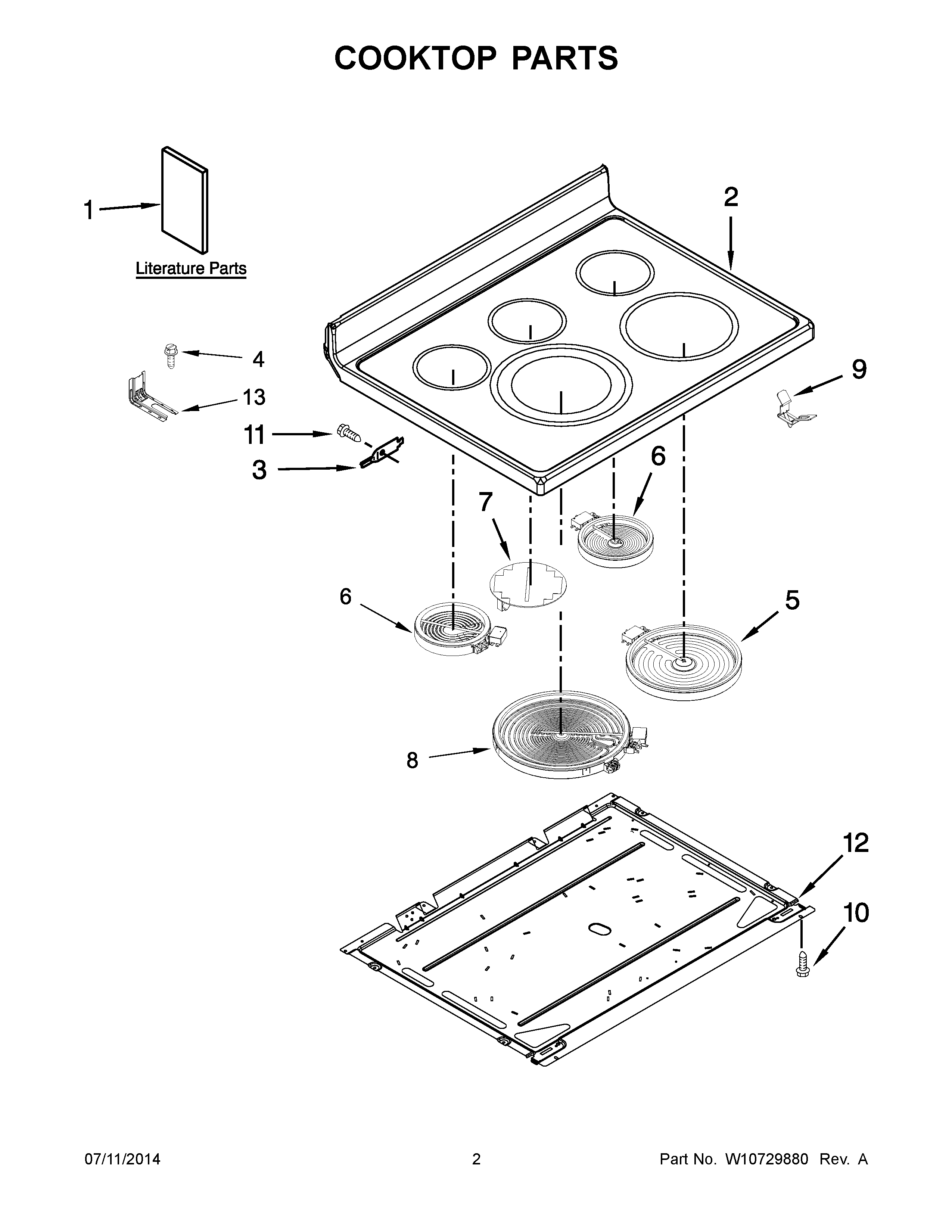

YMER8850DS1 02 – COOKTOP PARTS

YMER8850DS1 02 – COOKTOP PARTS

Written by

in

YMER8850DS1 02 – COOKTOP PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIMAY W10324944
NIMAY W10349696
NIHARNESS, COOKTOP LEFT
NIHARNESS, WIRE (DRAWER)
NIHARNESS, WARM ZONE
NIMAY W10688251
NISCREW
1CMAY W10400064
1ETIPS, SAFE COOKING (ENGLISH)
1AMAY W10667177
1MAY W10667170
1DUSE AND CARE GUIDE
1FTIPS, SAFE COOKING (FRENCH)
1BMAY W10403812
2MAY W10655921
3HINGE, COOKTOP
4SCREW, ANTI-TIP KIT
5ELEMENT (3200W) (RIGHT FRONT)
6ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7ELEMENT, WARM ZONE (CENTER REAR)
8TRIPLE (RF)
9SPRING, ELEMENT
10SCREW
11SCREW
12MAY W10106409
13BRACKET, ANTI-TIP
