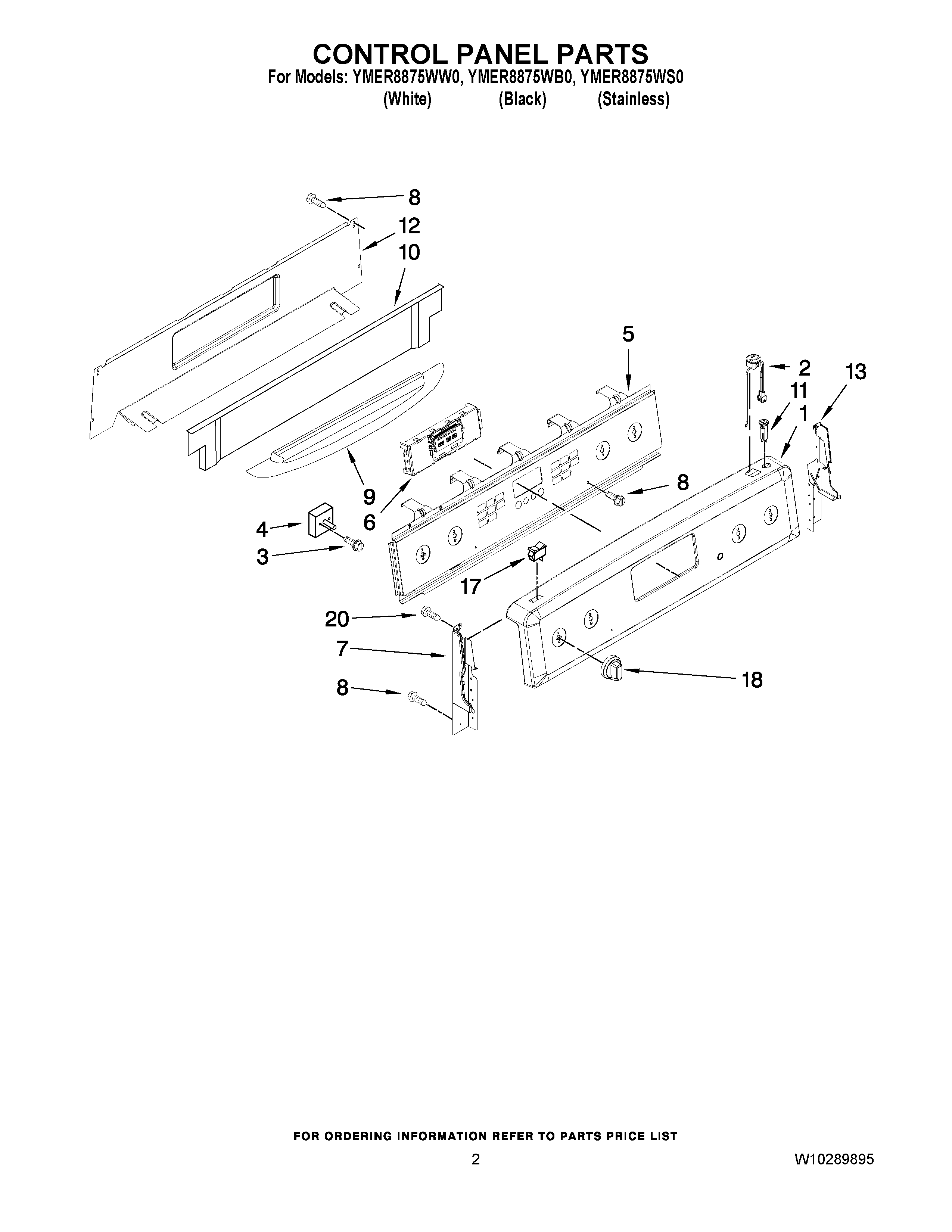

YMER8875WS0 02 – CONTROL PANEL PARTS

YMER8875WS0 02 – CONTROL PANEL PARTS

Written by

in

YMER8875WS0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1CONSOLE, PANEL (STAINLESS)
1CONSOLE, PANEL (BLACK)
1CONSOLE, PANEL (WHITE)
2RECEPTACLE (WHITE)
2RECEPTACLE (BLACK)
3SCREW
4SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4SWITCH, INFINTE (TRIPLE (RF))
4Switch, Infinite (LF,RF)
4SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
5ACTIVE OVERLAY (WHITE)
5MAY W10214548
5MAY W10207495
6MAY W10157249
7MAY W10163969
7MAY W10163967
8Screw (Black)
9MAY 3604F382-81
9MAY 3604F382-09
10MAY 3604F381-19
11BREAKER, CIRCUIT (WHITE)
11BREAKER, CIRCUIT (BLACK)
12MAY W10243038
13MAY W10163970
13MAY W10163968
17SWITCH, ROCKER (WHITE)
18MAY W10211372
18KNOB, INFINITE (WHITE)
18MAY W10211374
20Screw (2) (Black)
20Screw (2) (White)
