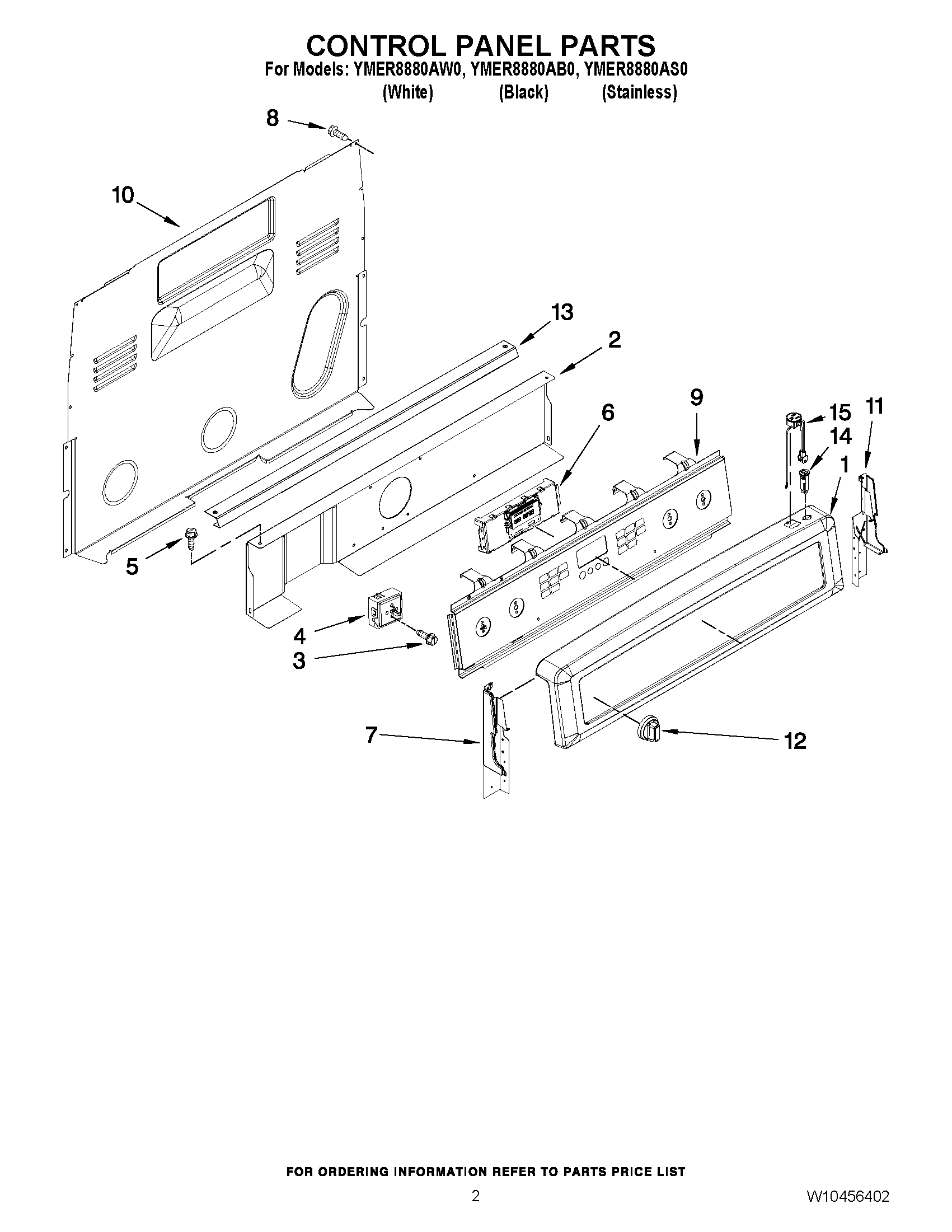

YMER8880AB0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1CONSOLE, PANEL (WHITE)
1CONSOLE, PANEL (BLACK)
1CONSOLE, PANEL (STAINLESS)
2SHIELD, HEAT
3SCREW
4SWITCH, INFINITE (DUAL) (LEFT FRONT)
4SWITCH, INFINITE (LEFT FRONT)
4SWITCH, INFINITE (RIGHT FRONT)
4SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
5MAY W10362924
6CONTROL (MRC)
7ENDCAP (WHITE (LEFT))
7ENDCAP (BLACK (LEFT))
8SCREW
9ASSEMBLY, ACTIVE OVERLAY (WHITE)
10COVER, UPPER REAR
11ENDCAP (BLACK (RIGHT))
11ENDCAP (WHITE (RIGHT))
12MAY W10370184
12MAY W10370186
12MAY W10370185
13Bracket, Console
14BREAKER, CIRCUIT (BLACK)
15RECEPTACLE (BLACK)
