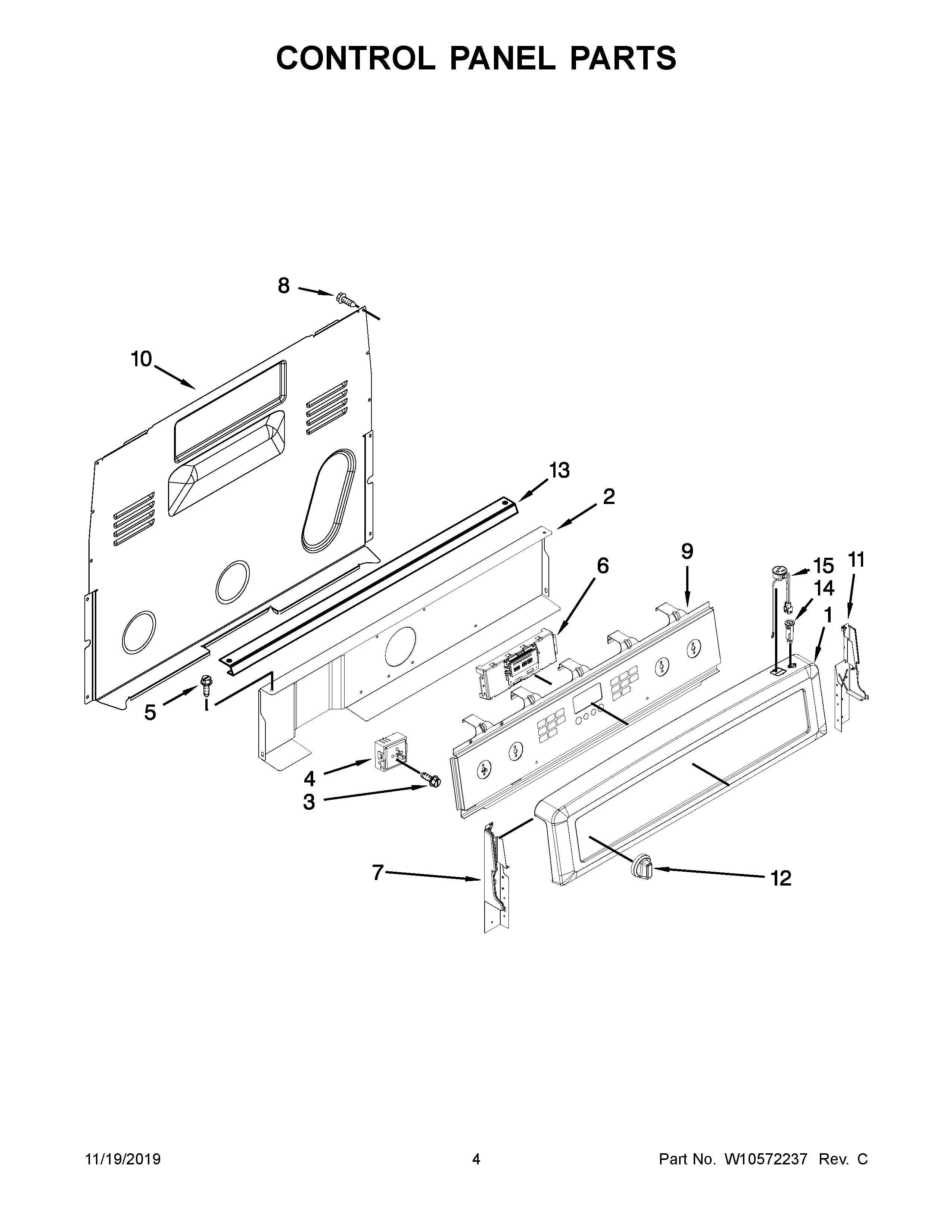

YMER8880BB0 03 – CONTROL PANEL PARTSadmin2025-04-26T08:54:27+00:00YMER8880BB0 03 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1B | CONSOLE, PANEL (STAINLESS) |
| 1 | CONSOLE, PANEL (WHITE) |
| 1A | CONSOLE, PANEL (BLACK) |
| 2 | SHIELD, HEAT |
| 3 | SCREW |
| 4A | SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR) |
| 4B | SWITCH, INFINITE (DUAL) (LEFT FRONT) |
| 4C | SWITCH, INFINITE (RIGHT FRONT) |
| 4 | SWITCH, INFINITE (LEFT FRONT) |
| 5 | MAY W10362924 |
| 6 | CONTROL (MRC) |
| 7 | ENDCAP (WHITE (LEFT)) |
| 7A | ENDCAP (BLACK (LEFT)) |
| 8 | SCREW |
| 9 | ASSEMBLY, ACTIVE OVERLAY (WHITE) |
| 9A | ASSEMBLY, ACTIVE OVERLAY (BLACK) |
| 9B | ASSEMBLY, ACTIVE OVERLAY (STAINLESS) |
| 10 | COVER, UPPER REAR |
| 11A | ENDCAP (BLACK (RIGHT)) |
| 11 | ENDCAP (WHITE (RIGHT)) |
| 12B | MAY W10370186 |
| 12A | MAY W10370185 |
| 12 | MAY W10370184 |
| 13 | BRACKET, CONSOLE MOUNTING |
| 14 | BREAKER, CIRCUIT (WHITE) |
| 14A | BREAKER, CIRCUIT (BLACK) |
| 15 | RECEPTACLE, FUSED (WHITE) |
| 15A | RECEPTACLE, FUSED (BLACK) |
