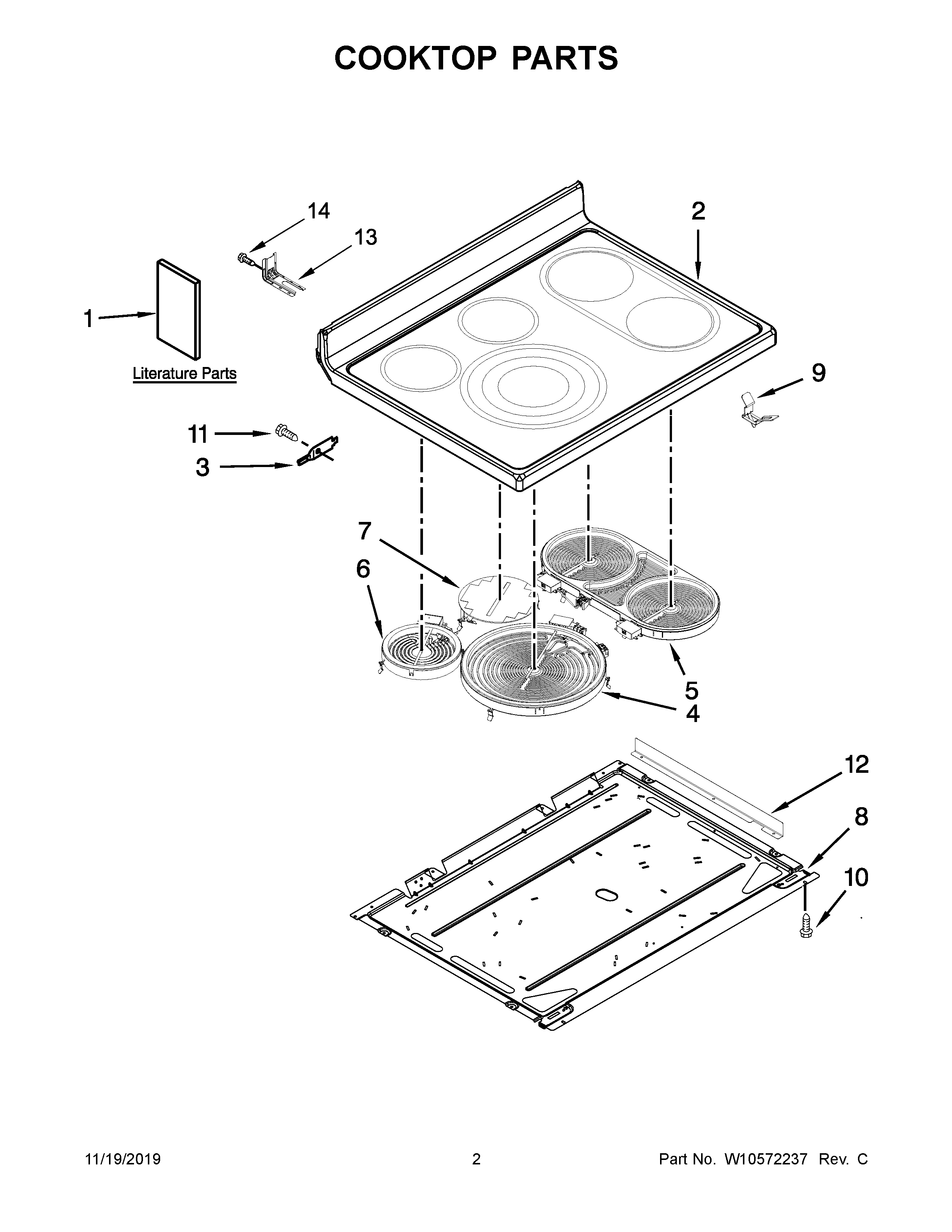

YMER8880BS0 02 – COOKTOP PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIHARNESS, WIRE (COOKTOP LEFT)
NIHARNESS, COOKTOP RIGHT
NIHARNESS, WIRE MAIN
NIHARNESS, SENSOR
NIHARNESS, WARM ZONE
1BTECH SHEET, FRENCH
1CMAY W10403812
1DMAY W10400064
1EMAY W10400065
1ATECH SHEET, ENGLISH
1USE AND CARE GUIDE
2COOKTOP (WHITE)
2ACOOKTOP (BLACK)
3HINGE, COOKTOP
4TRIPLE (RF)
5ELEMENT, BRIDGE (RIGHT FRONT & RIGHT REAR)
6ELEMENT (1300W) (LEFT REAR)
7ELEMENT, WARM ZONE (CENTER)
8MAY W10106409
9SPRING, ELEMENT
10SCREW
11SCREW
12MAY W10348913
13BRACKET, ANTI-TIP
14SCREW, ANTI-TIP KIT
