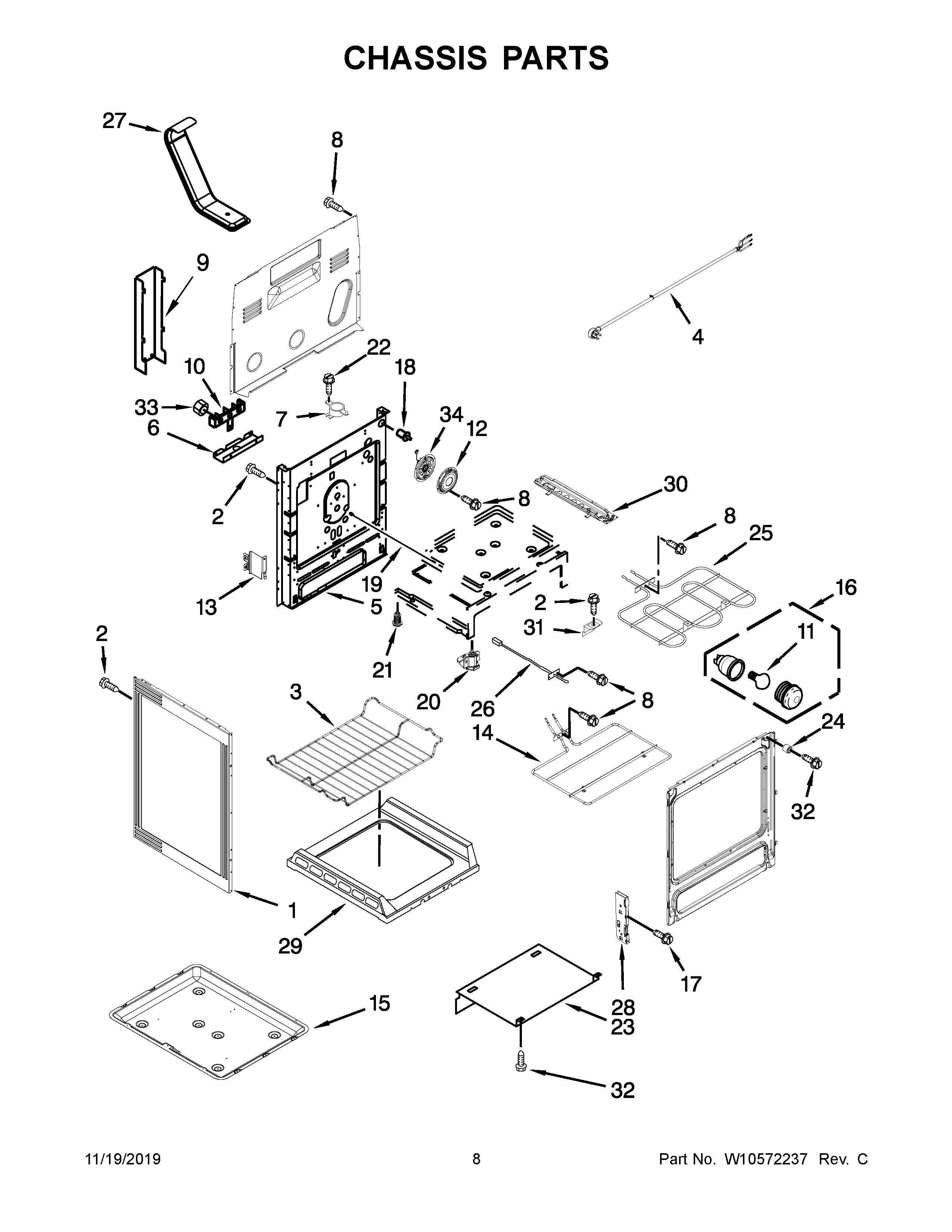

YMER8880BS0 05 – CHASSIS PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10225524
NI	INSULATION, BOTTOM
NI	MAY W10194393
NI	STRAP, INSULATION
1	PANEL, SIDE (WHITE)
1A	PANEL, SIDE (BLACK)
3	ACCESSORIES, RACK, OVEN (GULL-WING)
4	CORD, POWER
6	BRACKET, SERVICE
7	FUSE, THERMAL
8	MAY W10362924
9	COVER, TERMINAL BLOCK
10	BLOCK, TERMINAL
11	RANGE ONLY 40W 120V APPL BULB
12	MAY W10346154
13	BRACKET, SUPPORT
14	ELEMENT, BAKE
15	MAY W10346147
16	ASSEMBLY, LIGHT
17	MAY W10031780
18	SWITCH, DOOR
19	ROD, REAR DOOR
20	ASSEMBLY, FRONT FOOT
21	FOOT, LEVELING
22	SCREW
23	SHIELD, HEAT
24	SPACER, DOOR
25	MAY W11095929
26	MAY W10586204
27	TUBE, VENT
28	RECEIVER, HINGE
29	MAY W10289079
30	ASSEMBLY, BASE RAIL (RIGHT)
30A	ASSEMBLY, BASE RAIL (LEFT)
31	MAY W10035900
32	SCREW
33	WP7103P027-60 Whirlpool Nut
34	MOTOR, FAN (CONVECTION)
