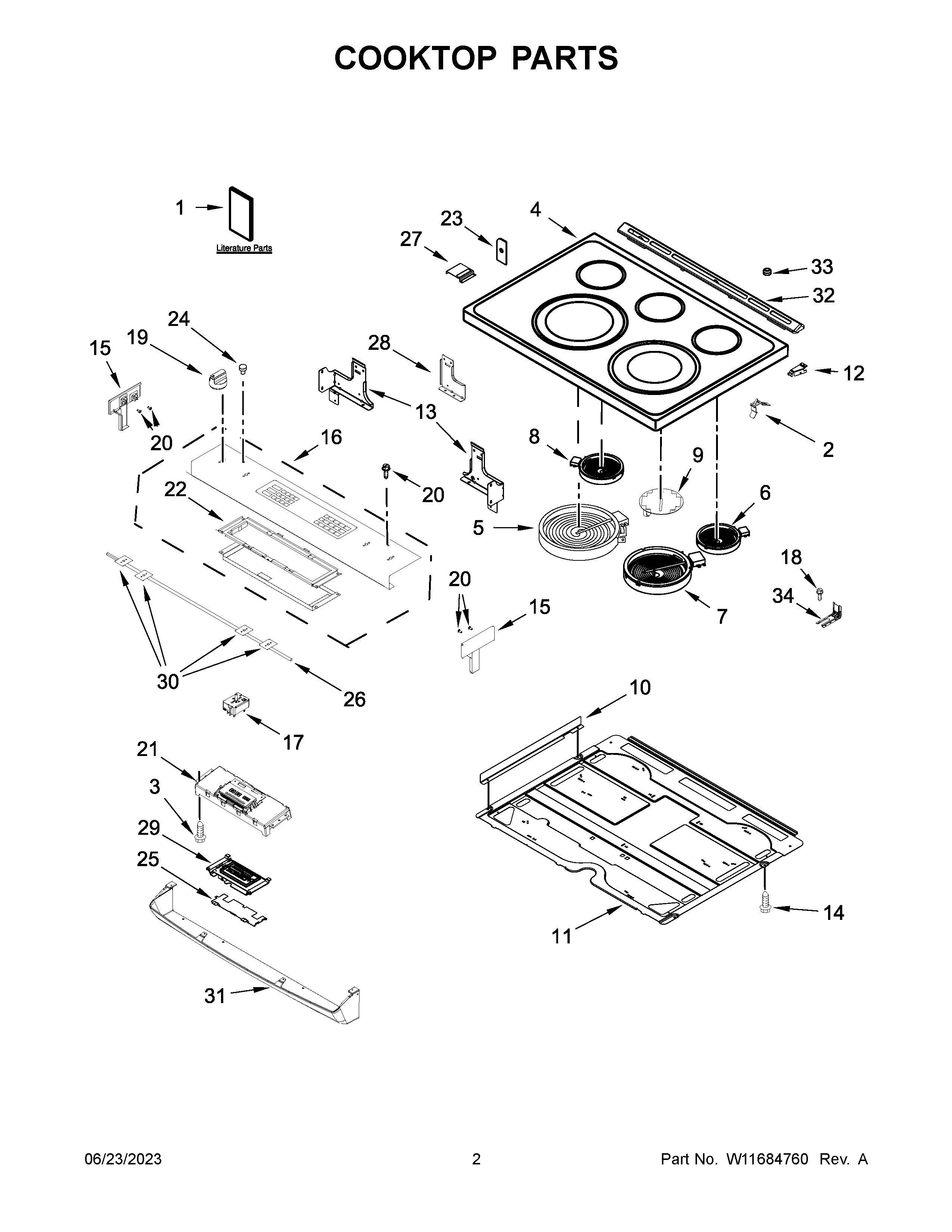

YMES8800PZ0 02 – COOKTOP PARTS

Products

Position	Product
NI	W11025616 Whirlpool Wire Harness
NI	W11226772 Whirlpool Wire Harness
NI	W10664316 Whirlpool Clip
NI	WPL W11188430
NI	WPL W11454498
NI	W11207143 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
1	QUICK START GUIDE
1A	TECH SHEET
1B	OWNERS MANUAL
2	W11663556 Whirlpool Spring Assembly
3	SCREW
4	W10751487 Whirlpool Cooktop Assembly
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	ELMNT-SURF
7	WPW10251108 Whirlpool Range Cooktop 3200W Radiant Surface Element
8	WPW10270604 Whirlpool Surface Element
9	W11041453 Whirlpool Surface Element
10	BRACKET, RADIANT
11	W10536275 Whirlpool Pan
12A	W10162252 Whirlpool Bracket Mounting
12	W10162253 Whirlpool Mounting Bracket
13A	W10289169 Whirlpool Bracket Support
13	W10289170 Whirlpool Support Bracket
14	W11244557 Whirlpool Screw
15	W10557751 Whirlpool Panel End Cap
15A	W10557754 Whirlpool Endcap Panel
16	W11686850 Whirlpool Control Panel
17A	WPW10295048 Whirlpool Range Switch, Infinite (Left Rear)
17B	W10917724 Whirlpool Infinite Switch
17C	W10911303 Whirlpool Infinite Switch
17	SWITCH-INF
18	SCREW, ANTI-TIP KIT
19	KNOB (STAINLESS)
20	W11245710 Whirlpool Refrigerator Screw
21	W11686852-includeCORE Whirlpool W11686852 Electronic Control + Core
22	W10557780 Whirlpool Bracket Mounting
23	W10882900 Whirlpool Gasket
24	WP3196068 Whirlpool Light Lens
25	W10558372 Whirlpool Bracket Mounting
26	W10802441 Whirlpool Gasket
27	SHIELD, KEYPAD
28	W10598048 Whirlpool Support Bracket
29	W11108634 Whirlpool Display
30	GASKET, SWITCH
31	W10565662 Whirlpool Mounting Bracket
32	W11240519 Whirlpool Vent Trim
33	W11104127 Whirlpool Bumper Assembly
34	W11502257 Whirlpool Anchor Tip
